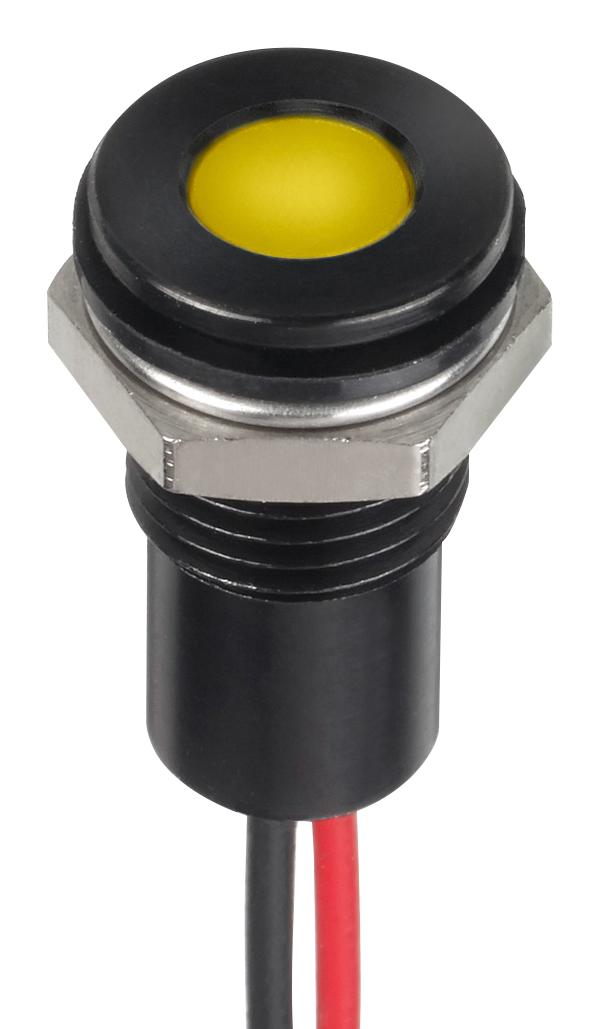

Apem Q6F5BXXHY12E Panel Mount LED Indicator
The Q6 series is a range of 6 mm panel mount LED indicators featuring high brightness LEDs, various bezel styles, and multiple terminal options. They include diffuse epoxy or water-clear lenses and operate within a temperature range of -40°C to +85°C. These indicators are sealed to IP67 standards, suitable for durable outdoor or industrial use, with a life expectancy of 100,000 hours. Available in multiple colors like red, green, yellow, blue, white, and orange, they provide excellent visibility and reliability for panel applications.
Apem Q6F5BXXHY12E Panel Mount LED Indicator Specifications:
- Diameter: 6 mm
- Lens Types: Diffused epoxy or water-clear
- Bezel Material: Plated brass finished in bright chrome, black, or satin grey
- Rear Body Material: Moulded polycarbonate
- Ingress Protection: IP67 sealing option available
- Operating Temperature Range: Rear plastic body -30°C to +65°C, Rear epoxy body -40°C to +85°C
- Max Reverse Voltage: 5 V
- Viewing Angle: 30-100° (depending on model)
- Life Expectancy: 100,000 hours
- Operating Voltage: 1.8V to 33V DC
- Operating Current: 20 mA Max
- Terminal Options: Solder Lug, Faston, Wires up to 200mm
- Mechanical Mounting: Max panel thickness 7mm
- LED Colors: Red, Green, Yellow, Blue, White, Orange; Also bi-color and hyper bright variants
- Sealed performance: IP67 option for harsh environments
Buy the Buy Generic Q6 Series Panel Mount LED Indicators Part Number Q6F5BXXHY12E Online
Order the Q6 series panel mount LED indicator online today to ensure high visibility, long service life, and reliable operation in industrial, outdoor, and demanding applications. These 6 mm indicators feature high-brightness LEDs in various colors, diffused or water-clear lenses, and multiple terminal options such as solder lug, faston, and wire leads. With sealing options up to IP67, they withstand harsh environments, provide excellent viewing angles, and have an anticipated lifespan of 100,000 hours. Perfect for control panels, machinery, and equipment requiring clear, durable indication signals.
Get Q6 series LED indicators today—built for high brightness, durability, and reliable panel illumination in demanding environments.
Frequently Asked Questions
Where can I buy Apem Q6F5BXXHY12E?
You can click on the BUY or RFQ button to purchase Q6F5BXXHY12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q6F5BXXHY12E?
You can download the Q6F5BXXHY12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q6F5BXXHY12E?
Apem
