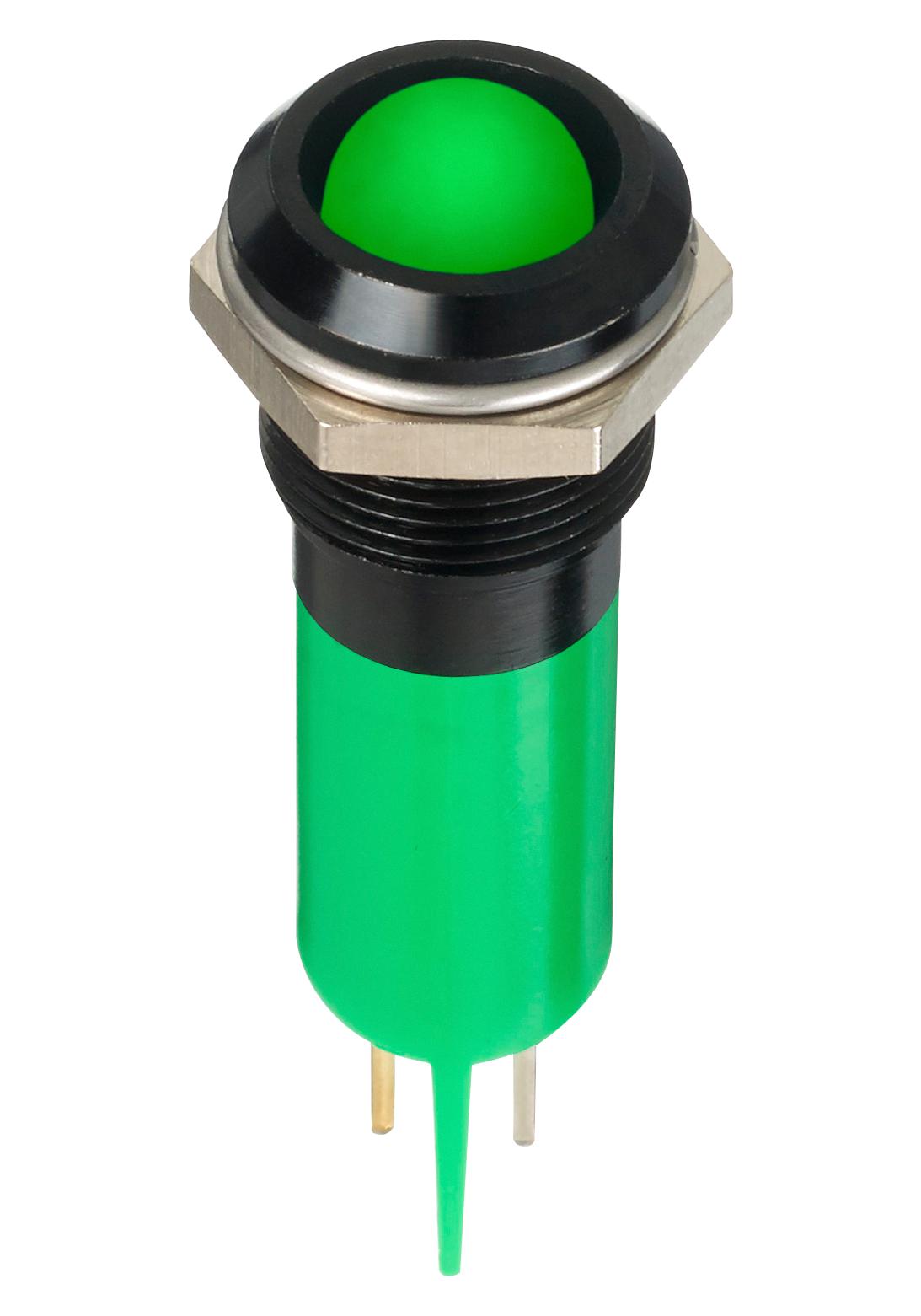

Apem Q12P1BXXHG24E LED Indicator
The Q12 Series is a 12mm panel mount LED indicator designed for versatile applications with various color and sealing options. Featuring a prominent bezel and multiple terminal types, including solder lug, fastons, pins, or wire terminations, it offers bright, diffused epoxy lens LEDs or water-clear LEDs. The indicator supports voltages from 2VDC up to 220VAC, with an IP67 sealing option for enhanced durability and protection against environmental factors. Its rugged construction includes a plated brass bezel finished in chrome, satin grey, or black chrome, suitable for demanding industrial environments. It boasts a long life expectancy of 100,000 hours and operates efficiently within temperature ranges from -40°C to +85°C, making it reliable for various indicator needs.
Apem Q12P1BXXHG24E LED Indicator Specifications:
- Panel Mount Diameter: 12mm
- Bezel Finish: Bright Chrome, Satin Grey, Black Chrome
- Lens Type: Diffused epoxy or water-clear LED
- Terminal Options: Solder lug, fastons, pins, or 200mm wire
- Operating Voltage Range: 2VDC to 220VAC
- Max Reverse Voltage: 5V
- Viewing Angle: 30-100° (dependent on model)
- Lifespan: 100,000 hours
- Operating Temperature: -40°C to +85°C
- Sealing: IP67 option available
- Bezel Material: Plated brass
- Current: 20mA max
- Panel Thickness: Up to 7mm
- Certifications: UL Recognized
- Max Reverse Voltage: 5V
- Max Operating Voltage: 2VDC to 220VAC depending on model
- Color Options: Green, Yellow, Blue, White, Orange, Red/Green bi-color, Red/Yellow tri-color
- Installation: Prominent bezel with fixing nut and spring washer
Buy the APEM Series Q12 LED Indicator: Q12P1BXXHG24E
Purchase the APEM Series Q12 LED indicator online today and ensure your industrial displays are highly visible and reliable. With multiple color options, waterproof sealing, and varied terminal types, this indicator is perfect for demanding environments. It supports voltages from 2VDC to 220VAC and offers a long lifespan of 100,000 hours. Its robust design features a plated brass bezel finished in chrome, satin grey, or black chrome, and capable of withstanding temperatures from -40°C to +85°C, making it an ideal solution for various industrial applications.
Order your APEM Series Q12 LED indicator today and enhance your industrial equipment with durable, high-visibility lighting solutions.
Frequently Asked Questions
Where can I buy Apem Q12P1BXXHG24E?
You can click on the BUY or RFQ button to purchase Q12P1BXXHG24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q12P1BXXHG24E?
You can download the Q12P1BXXHG24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q12P1BXXHG24E?
Apem
