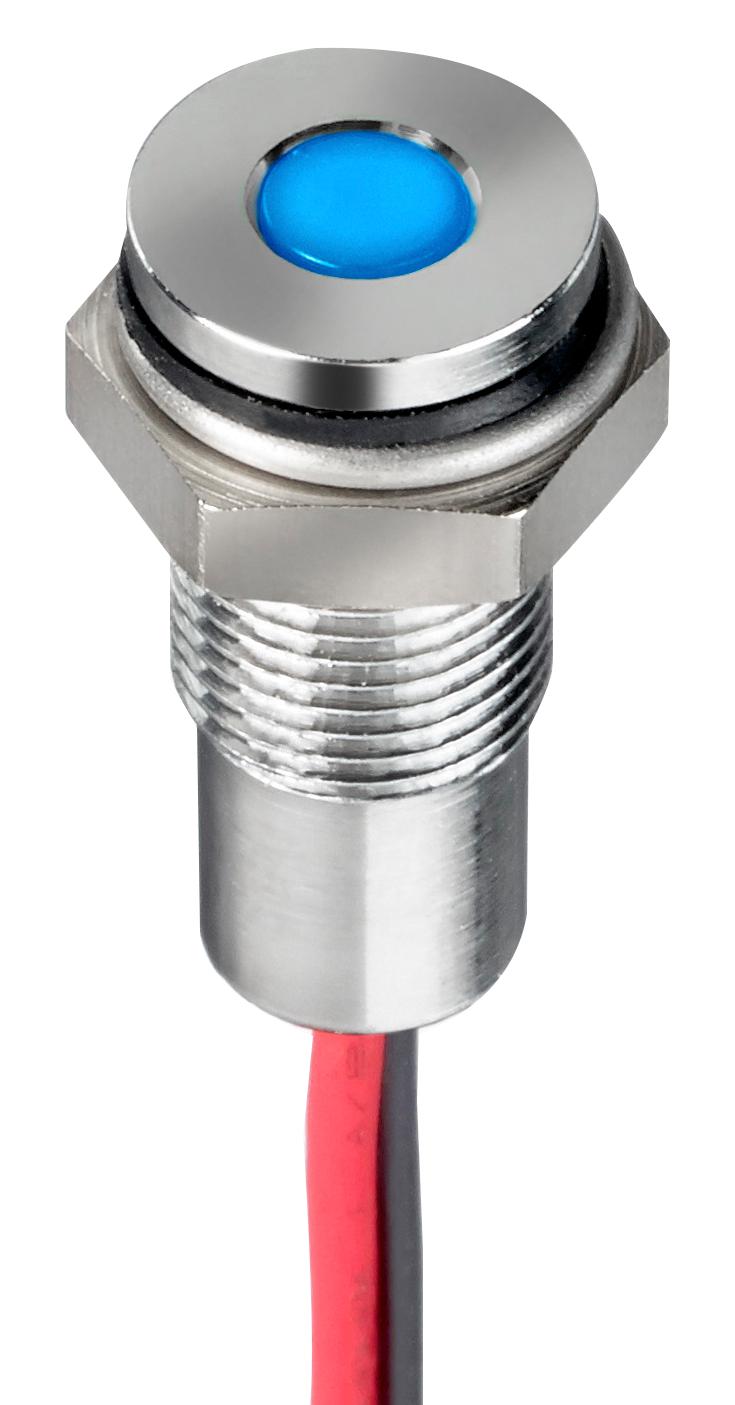

Apem Q6F5CXXB24E LED Indicator
The Q6 series panel mount LED indicators feature 6 mm diameter, water clear or diffused epoxy lenses with super bright LED options. They include prominent, recessed, and flush bezel styles, with solder lug terminals, pins, or wire terminations. Rated IP67 for sealing, these indicators operate in temperatures from -40°C to +85°C depending on body type. They deliver a long life of 100,000 hours, maximum reverse voltage of 5 V, and viewing angles from 30° to 100°. Material options include plated brass bezels in chrome, black, or satin grey, with polycarbonate rear bodies, suitable for panel thickness up to 7 mm.
Apem Q6F5CXXB24E LED Indicator Specifications:
- Diameter: 6 mm
- Lens: 3 mm water clear or diffused epoxy
- Bezel Material: Plated brass in chrome, black, satin grey
- Rear Body: Moulded polycarbonate
- Sealing: IP67 (optional)
- Operating Temperature: -30°C to +65°C (plastic), -40°C to +85°C (epoxy)
- Life Expectancy: 100,000 hours
- Maximum Reverse Voltage: 5 V
- View Angle: 30° to 100°
- Panel Thickness: Max 7 mm
- Terminals: Solder lug, pins, or wire terminations (200 mm)
- Operating Voltage: 1.8 to 33 VDC
- Current: 20 mA max
- LED Types: Standard, Super Bright, Hyper Bright
- Color Options: Red, Green, Yellow, Blue, White, Orange, Bi-color
- Mounting Hole: 6 mm
Buy the APEM Series Q6 LED Indicator: Q6F5CXXB24E
Order the Q6 series LED indicators now to enhance your industrial control panels. Featuring high brightness, IP67 sealing, and various bezel styles, these indicators provide reliable performance in demanding environments. Suitable for panel thickness up to 7 mm, they operate at voltages from 1.8V to 33V DC and offer long-lasting efficiency with a lifespan of 100,000 hours. Choose from multiple color options, including standard and super bright LEDs, with easy wiring and mounting options for quick installation and maintenance.
Get Q6 series LED indicators today—built for precision, durability, and versatile panel mounting solutions.
Frequently Asked Questions
Where can I buy Apem Q6F5CXXB24E?
You can click on the BUY or RFQ button to purchase Q6F5CXXB24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q6F5CXXB24E?
You can download the Q6F5CXXB24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q6F5CXXB24E?
Apem
