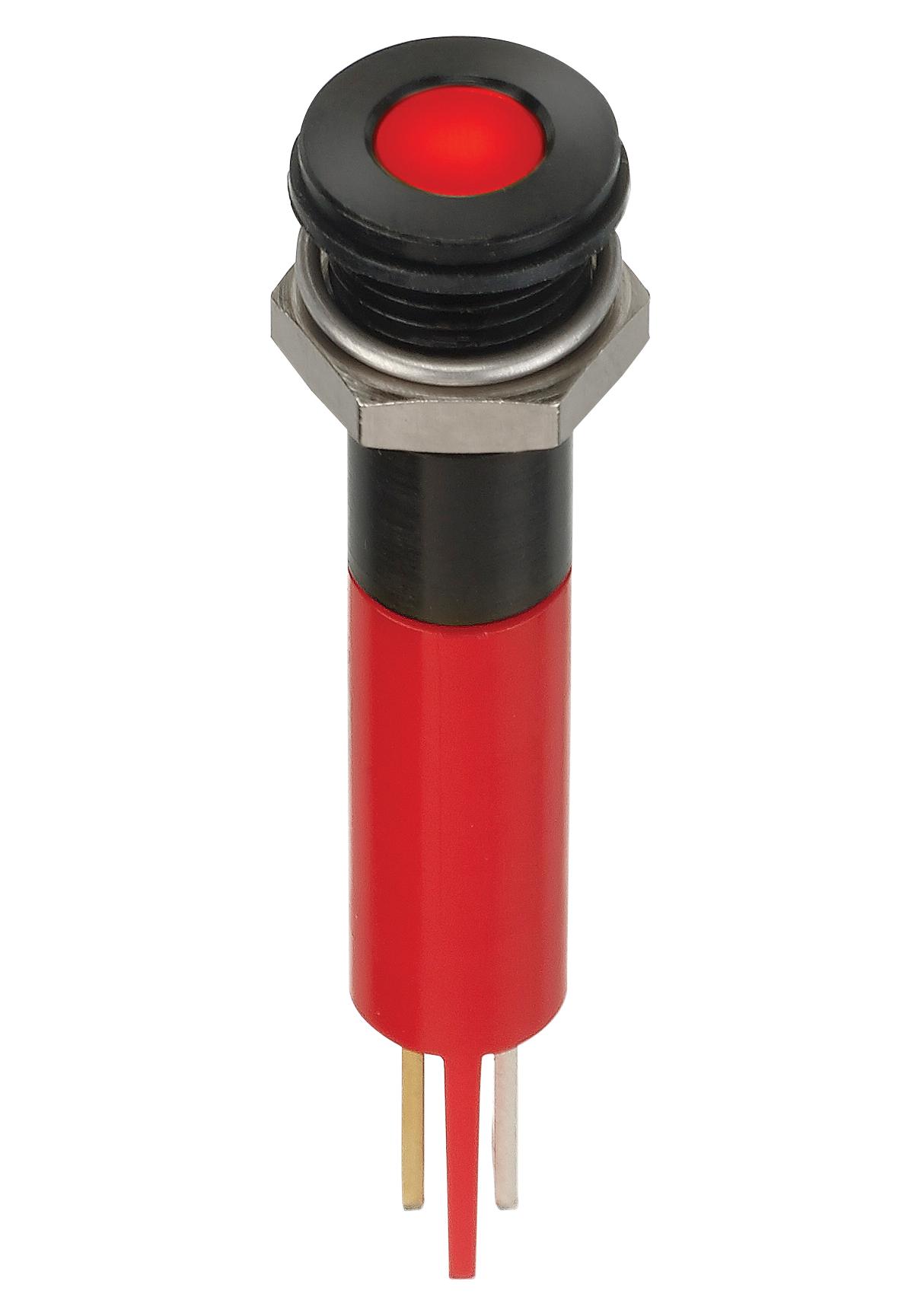

Apem Q8F1BXXR24E LED Indicator
This 8mm panel mount LED indicator features a waterproof IP67 sealed flush-mounted black bezel, ideal for durable and outdoor applications. It operates at 24VDC with a red LED, offering bright, prominent illumination for status indication in various industrial and control systems. The indicator includes solder lug terminals and is constructed for long-term reliability with a life expectancy of 100,000 hours. Its robust design ensures excellent sealing and visibility, making it suitable for harsh environments requiring clear visual signaling in control panels or machinery interfaces.
Apem Q8F1BXXR24E LED Indicator Specifications:
- LED Diameter: 8mm
- Bezel Type: Black flush mount
- Sealing: IP67
- Operating Voltage: 24VDC
- LED Color: Red
- Max Reverse Voltage: 5V
- Viewing Angle: 30-100°
- Life Expectancy: 100,000 hours
- Operating Temperature Range: -40 to +85°C
- Terminals: Solder lug terminals
- Maximum Panel Thickness: 7mm
- Material: Plated brass bezel, epoxy lens
- Certification: UL Recognized
- Intensities: Prominent, with options for super/ hyper-bright LEDs
- Forward Voltage: Approx. 2.0V for red LED
- Current: 20mA
- Dimensions: (8mm diameter) with standard mounting provisions
- Construction: Durable, waterproof, suitable for outdoor or harsh environment use
Buy the ApeM Series Q8 Red LED: Q8F1BXXR24E
Order the ApeM series Q8F1BXXR24E waterproof 8mm LED indicator online today and enhance your control panel with a reliable, waterproof, and bright red indicator light. Designed with a black flush bezel and IP67 sealing, it ensures long-term durability and visibility in harsh environments. Easily mounted with solder lug terminals, this indicator provides a professional finish and is suitable for outdoor or industrial applications. Invest in quality and long-lasting performance by buying online now—perfect for control systems, machinery, and outdoor signage.
Get ApeM Q8F1BXXR24E today—built for durability, waterproof performance, and long-lasting visibility in industrial environments.
Frequently Asked Questions
Where can I buy Apem Q8F1BXXR24E?
You can click on the BUY or RFQ button to purchase Q8F1BXXR24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q8F1BXXR24E?
You can download the Q8F1BXXR24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q8F1BXXR24E?
Apem
