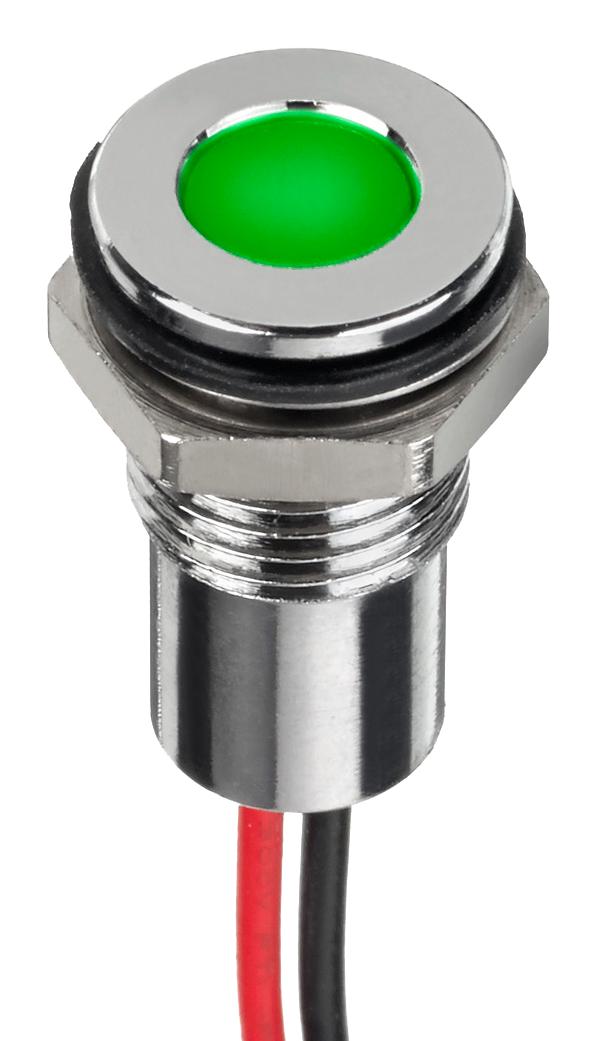

Apem Q6F5CYYRG12E LED Indicator
The Q6 series panel mount LED indicators are designed for versatile and reliable signaling applications with 6 mm bezel, various LED colors, and multiple mounting options. Featuring super bright LEDs with a life expectancy of 100,000 hours, these indicators are sealed with IP67 options suitable for demanding environments. They come in recessed, flush, and prominent bezel styles, with configurations for different terminal types including solder lug, pins, or wire terminations. Operating voltages range from 1.8V to 33V DC, ensuring broad compatibility for industrial and control panel use.
Apem Q6F5CYYRG12E LED Indicator Specifications:
- Bezel Material: Plated brass in bright chrome, black, or satin grey
- Body Material: Molded polycarbonate rear body
- Max Panel Thickness: 7 mm
- Operating Temperature Range: Rear plastic -30°C to +65°C, Rear epoxy -40°C to +85°C
- Sealing: IP67 optional
- Viewing Angle: 30-100° depending on model
- Lifespan: 100,000 hours
- Max Reverse Voltage: 5 V
- Forward Voltage (Super Bright): Red 1,000-3,700 mV, Green 1,200-2,000 mV, Yellow 2,000-8,000 mV, Blue 1,600-2,000 mV, White 1,200-1,350 mV, Orange 10,000-10,000 mV
- Voltage Range: 1.8 V to 33 VDC, 6V, 12V, 24V, 28V options available
- Current: Max 20 mA, resistor supply recommended for specific voltages
- Color Options: Red, Green, Yellow, Blue, White, Orange, Bi-color, Hyper Bright variants
- Terminals: Solder lug, pins, short wires, or wire leads (200mm)
- Mounting Hole: 6.00 ±0.15 mm
Buy the A featuring a comprehensive range of indicators designed for industrial control panels: Q6 series LED: Q6F5CYYRG12E
Order the Q6 series LED indicators online to enhance your control panels with high-brightness LEDs, multiple illumination colors, and IP67 sealing options. Designed for easy mounting with various terminal options, these indicators provide reliable, long-lasting performance in harsh environments. Perfect for industrial automation, control systems, and signaling applications, they are available in prominent bezel styles, with operating voltages from 1.8V up to 33V DC. Secure your stock today and experience quick, hassle-free delivery of quality indicators for your projects.
Get Q6F5CYYRG12E LED indicators today—built for durability and high visibility in demanding environments.
