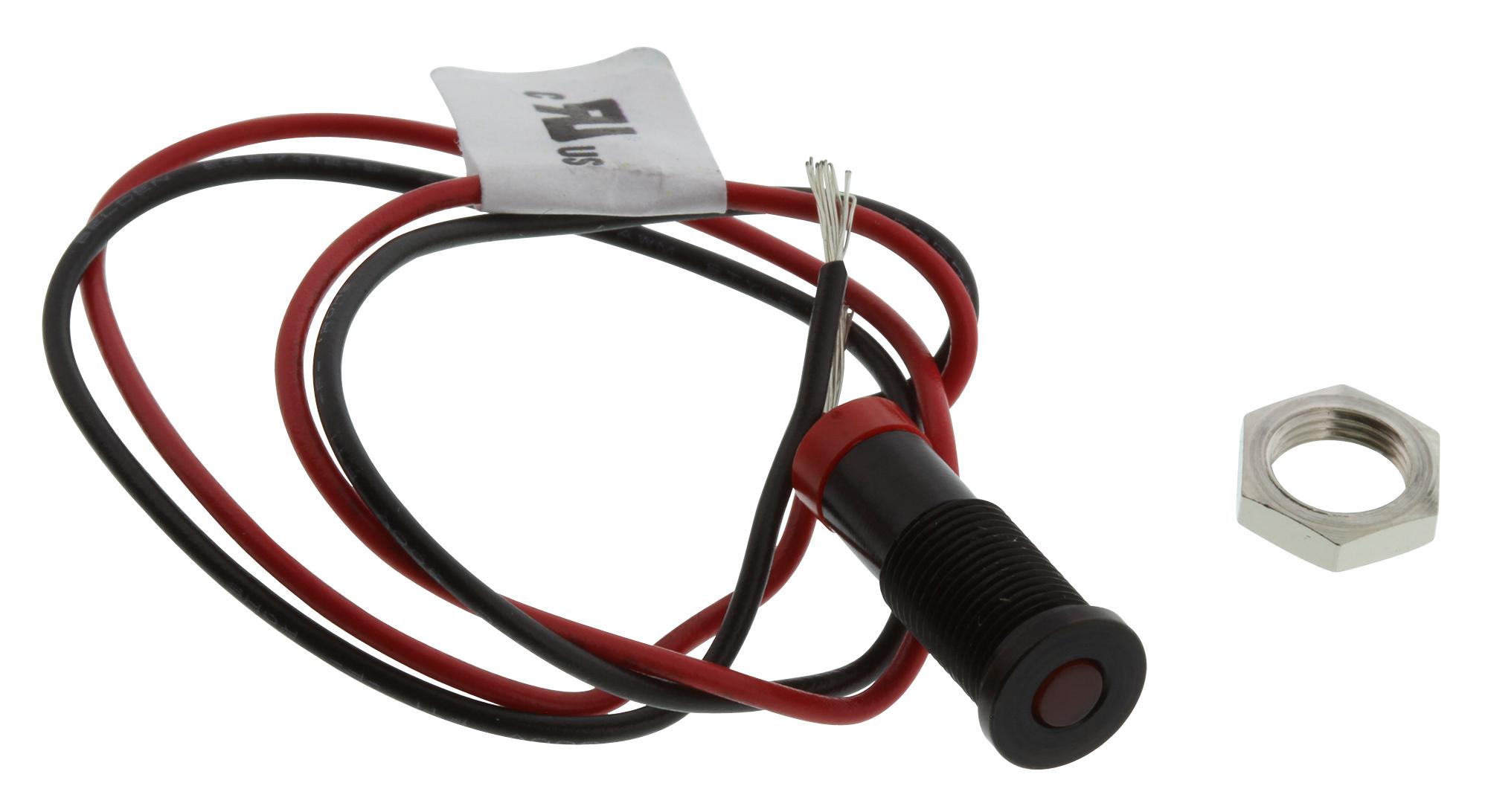

Apem Q6F7BXXR02 LED Indicator
The Q6 Series panel mount LED indicators are 6mm diameter, available with prominent or recessed flush bezels, and feature high-brightness LEDs in multiple colors including red, green, yellow, blue, white, and orange. They operate over a voltage range of 2VDC to 28VDC with optional IP67 sealing, suitable for industrial applications. Choose from various termination types such as solder lug, pins, or wire connections. These durable, UL Recognized components are designed for long life, with a typical lifespan of 100,000 hours, and are ideal for panel mounting in control and automation systems.
Apem Q6F7BXXR02 LED Indicator Specifications:
- Diameter: 6mm (.236")
- Bezel Finish: Bright chrome, black chrome, or satin grey
- Lens: 3mm diffused epoxy or water clear super bright LEDs
- Operating Voltage: 2VDC to 28VDC (with options for 12V, 24VAC/DC, etc.)
- Current: 20mA max
- Sealing: IP67 option available
- Viewing Angle: 30° to 100° depending on model
- Temperature Range: -40°C to +85°C
- Lifespan: 100,000 hours
- Constructed with plated brass bezel and molded polycarbonate rear body
- Terminals: solder lug, pins, or wire (200mm) terminations
- Certifications: UL Recognized
- Maximum panel thickness: 7mm
Buy the Buy APEM LED Indicator Part Number Q6F7BXXR02 Online
Secure your APEM Series Q6F7BXXR02 LED indicator online today. This high-quality, durable 6mm LED indicator offers multiple colors, versatile mounting options, and IP67 sealing, making it perfect for industrial control panels. Designed for long life and reliable performance, it features various terminal options including solder lug, pins, and wire terminations. Its robust construction handles harsh environments with temperature resistance from -40°C to +85°C. Order now to enhance your automation system's visual signaling with this dependable, UL Recognized component.
Order your APEM Series Q6F7BXXR02 LED indicator today and ensure reliable, efficient operation in your control panels and automation systems.
