Apem Q6P1BXXG24E LED Indicator

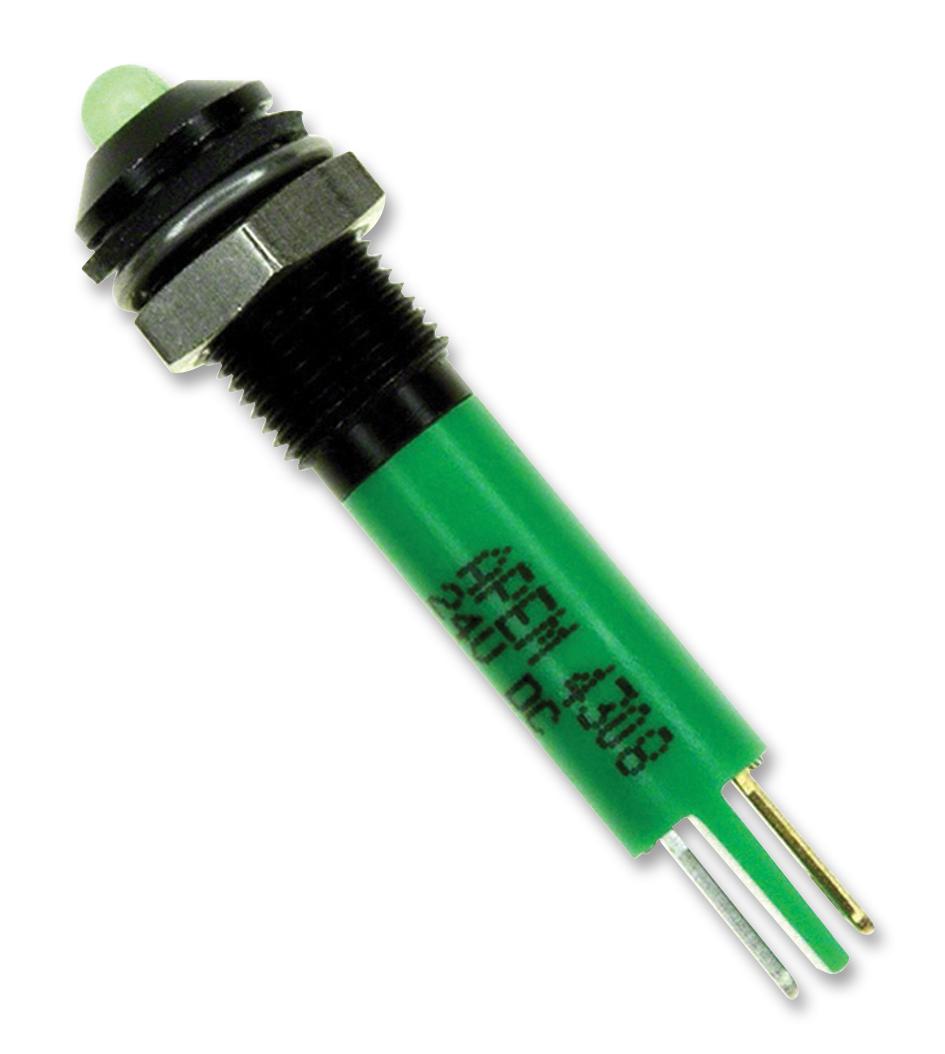

The Q6 Series 6mm LED indicator features a prominent black bezel designed for outdoor applications with an IP67 sealing rating, ensuring durability against harsh environments. Suitable for 24V DC systems, it offers high brightness and long life expectancy of 100,000 hours. The compact design includes options for solder lug terminals, pins, or wire terminations, and features various illumination colors including green. Its robust construction, easy mounting, and sealing make it ideal for industrial, automation, and control panel use, delivering clear visual indication in demanding environments.
Apem Q6P1BXXG24E LED Indicator Specifications:
- Diameter: 6mm
- Bezel Type: Black prominent
- Seal Rating: IP67
- Operating Voltage: 24VDC (±10%)
- Current: 20mA
- Life Expectancy: 100,000 hours
- Viewing Angle: 30-100°
- Forward Voltage: 2.2V for green LED
- LED Colors: Red, Green, Yellow, Blue, White, Orange
- Mounting Thread: M6 x 0.5
- Terminals: Solder lug, pins, or wire (200mm)
- Operating Temperature: -40°C to +85°C
- Dimensions: Mounting hole diameter 6mm, bezel size standard
- Enclosure Material: Metal bezel with sealing options
- Certification: UL Recognized, IP67 sealed
- Recessed and flush bezel styles available
- Resistorless operation possible with voltage considerations
Buy the Apex Products Q6 Series LED Indicators – Reliable Industrial Panel Indicators for Outdoor Use
Enhance your control panels with the durable and highly visible LED indicator from the Q6 Series, featuring a rugged IP67 sealed design, suitable for outdoor applications. Available in various brightness options and colors, this 6mm LED with a black bezel ensures long-term reliability and clear indication. Easy to mount with secure terminals, it is ideal for industrial, automation, and process control systems. Buy online today for quick delivery and dependable performance in demanding environments.
Order your Apex Products Q6 Series LED Indicator today and ensure durable, high-visibility signaling for your industrial projects, suitable for outdoor environments.
