Apem Q8F5BYYRG12E LED Indicator
The Q8 series panel mount LED indicators offer high-brightness, water-clear or diffused epoxy lenses, and prominent or recessed bezels. Designed for easy mounting with solder lug, faston, pins, or wire terminations, these LEDs support operating voltages from 1.8 V to 33 VDC and AC options up to 220 VAC. With a life expectancy of 100,000 hours, IP67 sealing, and durable materials like plated brass and stainless steel, they are suitable for various industrial and control panel environments requiring reliable illumination and visibility.
Apem Q8F5BYYRG12E LED Indicator Specifications:
- Lens Options: 5 mm diffused epoxy or water clear
- Bezel Material: Plated brass with chrome, black, satin grey finishes, or stainless steel 316L for flush version
- Sealing: IP67 (optional)
- Operating Voltage: 1.8 to 33 VDC, up to 220 VAC
- Operating Current: Max 20 mA
- Forward Voltage: Red 1.8-2.2V, Green 2.0-3.3V, Yellow 2.0-3.0V, Blue 3.0-3.4V, White 3.0-3.4V, Orange 2.0-2.2V
- Luminous Intensity: Up to 110,000 mcd for super bright LEDs, various for high brightness models
- Viewing Angle: 30-100° depending on model
- Life Expectancy: 100,000 hours
- Panel Thickness: Max 7 mm
- Temperature Range: -30°C to +85°C (rear epoxy body), -40°C to +65°C (rear plastic body)
- Terminals: Solder lug, faston, pins, or 200 mm wire leads
- Mounting Hole Size: 2.3 mm + 0.157 mm

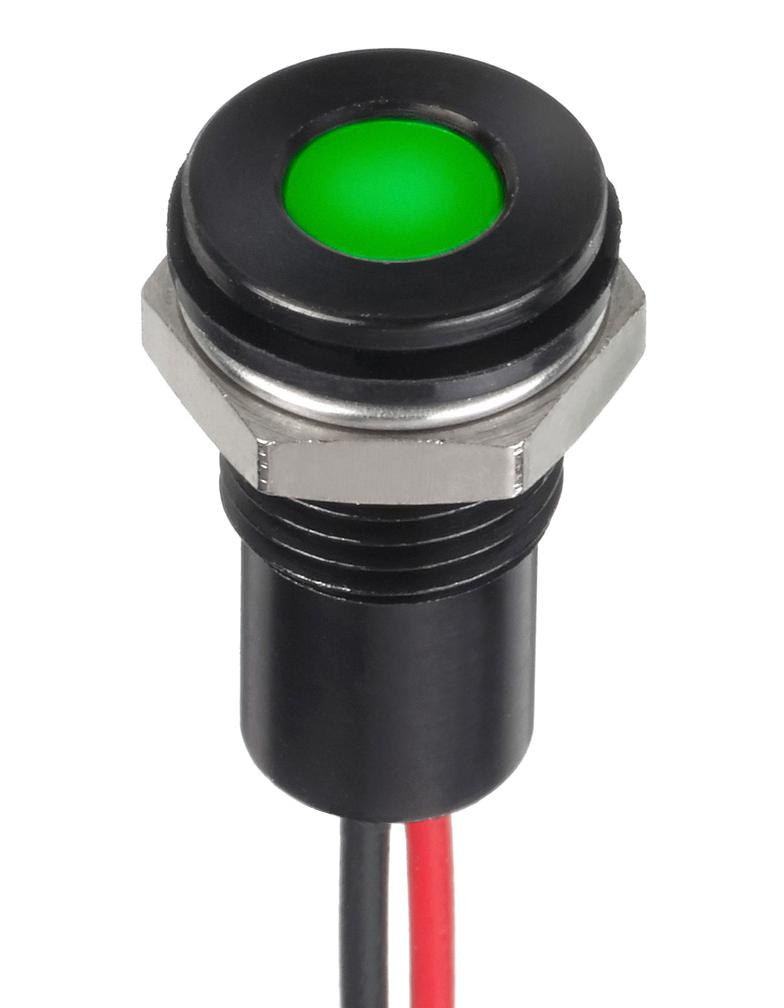

Buy the Acme Series Q8 LED: Q8F5BYYRG12E
Purchase the high-performance LED indicator online today for your industrial or control panel projects. Designed for durability and visibility, these indicators feature diffused or water-clear lenses, IP67 sealing options, and multiple mounting styles including bezel options and mounting terminals. Compatible with voltages up to 220 VAC/DC, they offer long-lasting performance of 100,000 hours and wide viewing angles for optimal visibility. Ideal for automation, machinery, and control systems, order now to ensure reliable operation and high-quality illumination in challenging environments.
Order your Acme Series Q8 LED indicator today and enhance your control panels with reliable, high-brightness illumination suitable for industrial environments.
Frequently Asked Questions
Where can I buy Apem Q8F5BYYRG12E?
You can click on the BUY or RFQ button to purchase Q8F5BYYRG12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q8F5BYYRG12E?
You can download the Q8F5BYYRG12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q8F5BYYRG12E?
Apem
