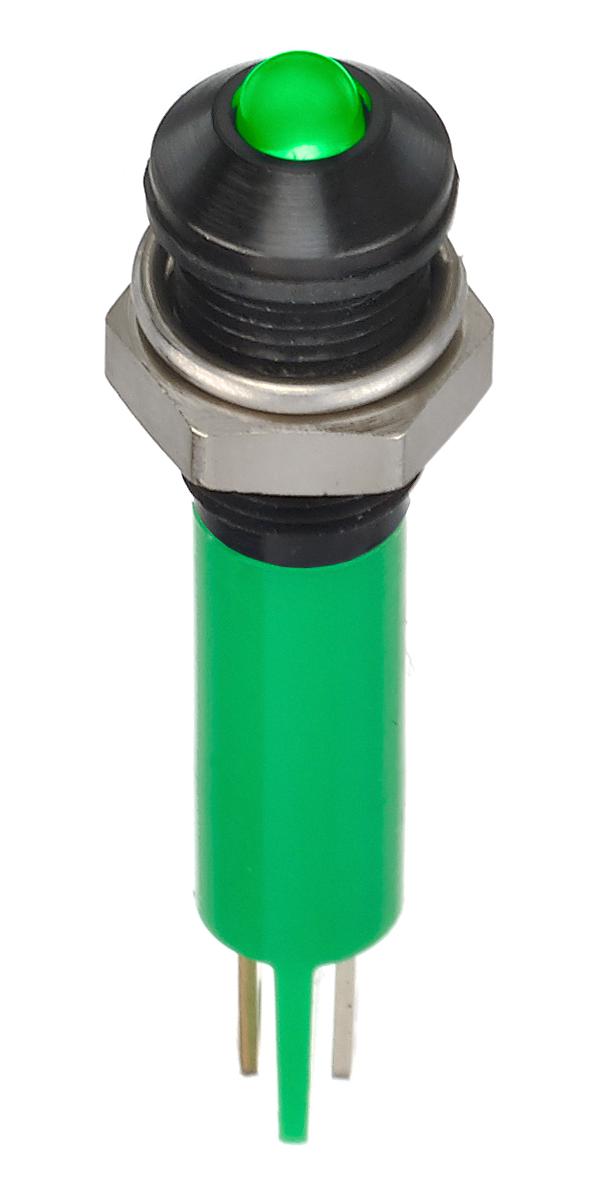

Apem Q6P1BXXHG02E Panel Mount LED Indicator
The Q6 series 6 mm panel mount LED indicators feature high brightness LED options with diffused or water clear lenses, recessed and flush bezel styles, and multiple terminal options, including solder lug, pins, or wire terminations. These indicators are designed for durability with IP67 sealing options, operating temperature ranges from -40 °C to +85 °C, and a life expectancy of 100,000 hours. Suitable for industrial and control systems, they provide reliable visual indication with various color options including red, green, yellow, blue, white, and orange, ensuring clear visibility in harsh environments.
Apem Q6P1BXXHG02E Panel Mount LED Indicator Specifications:
- Size: 6 mm panel mount
- Lenses: 3 mm diffused epoxy or water clear
- Bezel styles: Prominent, recessed, flush
- Sealing: IP67 option available
- Operating Temperature: -40 °C to +85 °C
- Storage Temperature: -30 °C to +65 °C
- Max Reverse Voltage: 5 V
- Life Expectancy: 100,000 hours
- Viewing Angle: 30-100°
- Terminal Types: Solder lug, pins, wire (200 mm length)
- Materials: Bright chrome, black, satin grey bezel, polycarbonate rear
- Max Panel Thickness: 7 mm
- LED Colors: Red, green, yellow, blue, white, orange
- Voltage Range: 1.8 V to 33 VDC
- Current: 20 mA max
- Intensities: Standard, super bright, hyper bright options
- Operating Voltage: 1.8 to 33 VDC, various fixed voltages
- Bezel Finish: Bright chrome, black, satin grey
- Wire Length: 200 mm UL1061 24 AWG
Buy the APEM Series Q6 LED: 6 mm Panel Mount Indicator
Order the Q6 series 6 mm panel mount LED indicators online now to enhance your control panels with high brightness LEDs, multiple color options, and reliable IP67 sealing. Designed for durability in harsh environments, these indicators offer excellent visibility and long operational life lasting up to 100,000 hours. Choose from various bezel styles — prominent, recessed, or flush — and terminal options including solder lug, pins, or wire, ensuring flexible installation for industrial, control, and automation applications. Purchase today for quality visual alerts that ensure safety and operational efficiency.
Get APEM Q6 series LED indicator today—built for visibility and long-lasting durability in industrial controls.
Frequently Asked Questions
Where can I buy Apem Q6P1BXXHG02E?
You can click on the BUY or RFQ button to purchase Q6P1BXXHG02E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q6P1BXXHG02E?
You can download the Q6P1BXXHG02E datasheet or visit the Apem website for support.
Who is the manufacturer of Q6P1BXXHG02E?
Apem
