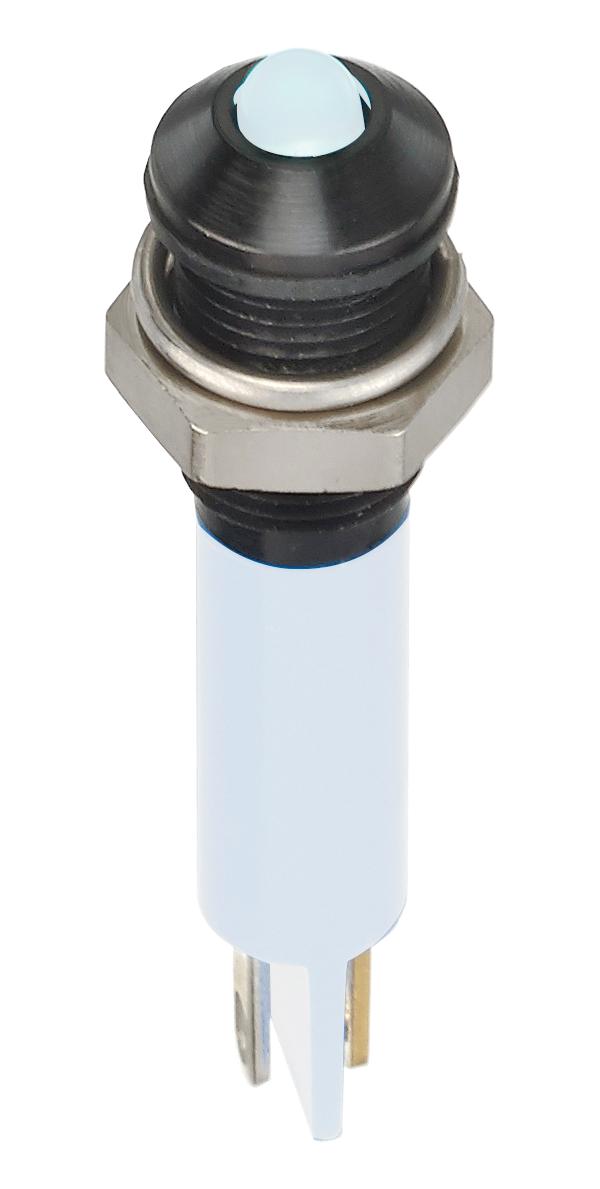

Apem Q6P1BXXW24E Panel Mount LED Indicator
A 6mm wide, prominent black bezel designed for outdoor applications with IP67 sealing for waterproof and dustproof protection. Operates at 24V DC, suitable for various electronic and industrial uses. This panel mount LED indicator features high brightness, with options for diffused or water-clear lenses, and is available with solder lug, pins, or wire terminations. It offers a viewing angle of 30-100°, a life expectancy of 100,000 hours, and is built with durable materials including plated brass and polycarbonate for reliable outdoor performance and versatile mounting options.
Apem Q6P1BXXW24E Panel Mount LED Indicator Specifications:
- Size: 6 mm wide
- Bezel Material: Plated brass, finished in black, chrome, or satin grey
- Lens Type: Diffused epoxy or water clear, 3 mm
- Sealing: IP67 (waterproof and dustproof)
- Operating Voltage: 24 V DC (21.6 to 26.4 VDC)
- Current: 20 mA max
- Viewing Angle: 30-100° depending on model
- Life Expectancy: 100,000 hours
- Temperature Range: -30°C to +65°C for plastic body, -40°C to +85°C for epoxy body
- Max Panel Thickness: 7 mm
- Terminations: Solder lug, Pins, or Wires (200 mm length, 24 AWG)
- Operating & Storage Temp: -30°C to +85°C
- Max Reverse Voltage: 5 V
Buy the Buy Manufacturer Q6 Series Panel Mount LED Indicator Part Number Q6P1BXXW24E Online
Purchase the manufacturer Q6 series 6mm panel mount LED indicator online today. Featuring a black bezel, IP67 sealing, and high-brightness LEDs, this indicator is ideal for outdoor and industrial environments. It operates at 24V DC with a maximum current of 20 mA, ensuring long-lasting performance. With diffused or water-clear lenses, multiple termination options, and durability in harsh conditions, order now to enhance your electronic projects with reliable illumination and superior visibility.
Buy Manufacturer Q6P1BXXW24E now and experience durable outdoor waterproof LED indication with high brightness and versatile mounting options.
