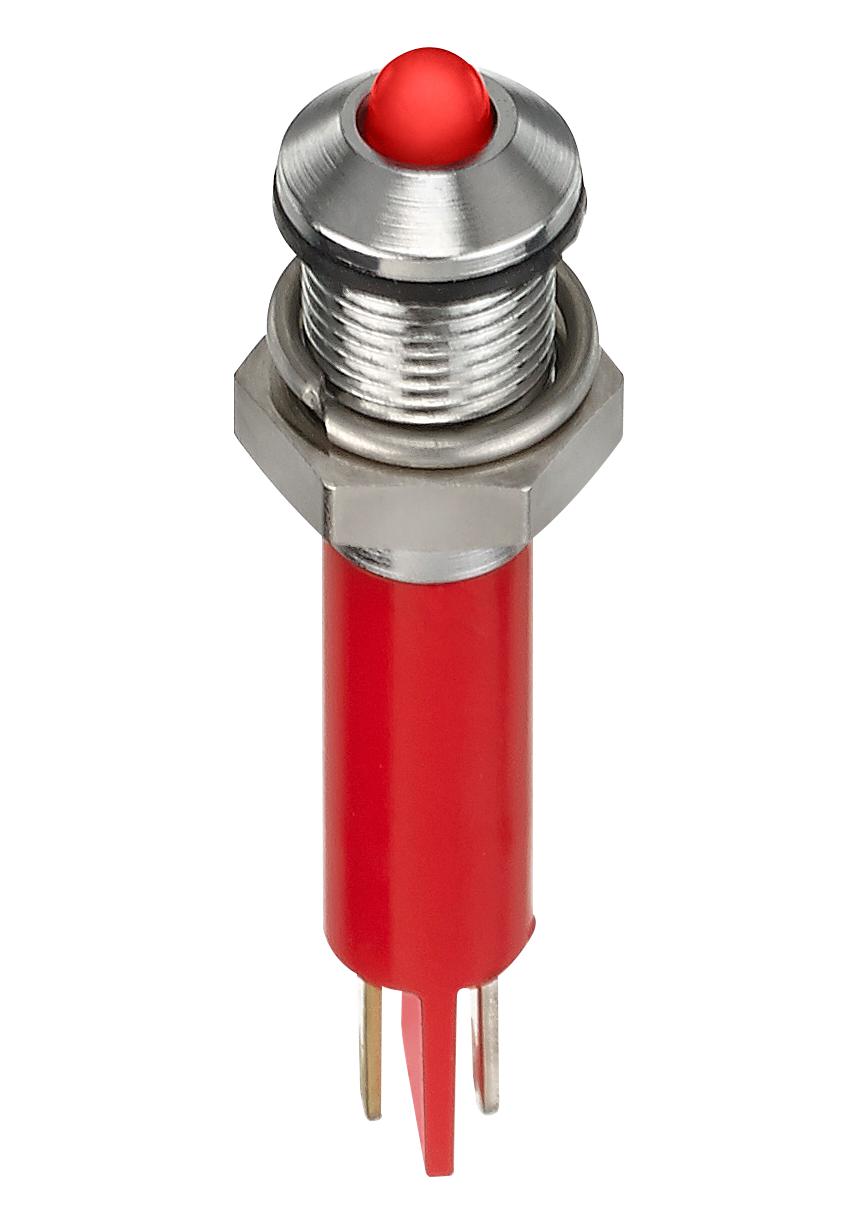

Apem Q6P1CXXR24E LED Indicator
The 6mm panel mount LED indicator features a prominent bright chrome bezel with IP67 sealing, designed for durability and visibility in various applications. It offers a wide voltage range from 2VDC to 28VDC, with options for standard, super bright, and hyper bright LEDs in multiple colors including red, green, yellow, blue, white, and orange. The device operates at 20mA, with a viewing angle of 30-100°. It is suitable for panel thickness up to 7mm, with mounting options including solder lug, pins, or wires, and features a sealed IP67 design for rugged environments.
Apem Q6P1CXXR24E LED Indicator Specifications:
- Size: 6mm diameter
- Bezel Finish: Bright chrome, black chrome, satin grey
- Sealing: IP67
- Voltage Range: 2VDC to 28VDC (±10%)
- Operating Current: 20mA
- Viewing Angle: 30-100°
- Lifespan: 100,000 hours
- Operating Temperature: -40°C to +85°C
- LED Colors: Red, green, yellow, blue, white, orange
- LED Types: Standard, super bright, hyper bright
- Mounting: Panel with M6 x 0.5 thread, solder lug, pins, or wire connections
- Panel Cutout: 6mm diameter
- Max Panel Thickness: 7mm
- Terminals: Solder lug, pins, or 200mm wire
- Reverse Voltage Max: 30.8VDC
- Forward Voltage: 2.0V to 3.5V depending on color and brightness
- Certifications: UL Recognized, EN60529 IP67
- Cable Length: Standard 200mm, 24 AWG
Buy the APEM Series Q6 LED Indicator: Q6P1CXXR24E
Buy your APEM Series Q6 LED indicator featuring a bright chrome bezel, IP67 sealing, and multiple color options online today. Designed for durability, it operates from 2V to 28V DC, with a lifespan exceeding 100,000 hours. Ideal for industrial, control panels, or machinery, this LED provides excellent visibility with a wide viewing angle of up to 100°. Simple to install with solder lug, pin, or wire terminations, ensuring rugged performance in demanding environments. Enhance your project with this high-quality indicator now.
Order your APEM Series Q6 24V LED indicator with bright chrome bezel today and enhance your panel displays with reliable, high-quality lighting solutions.
