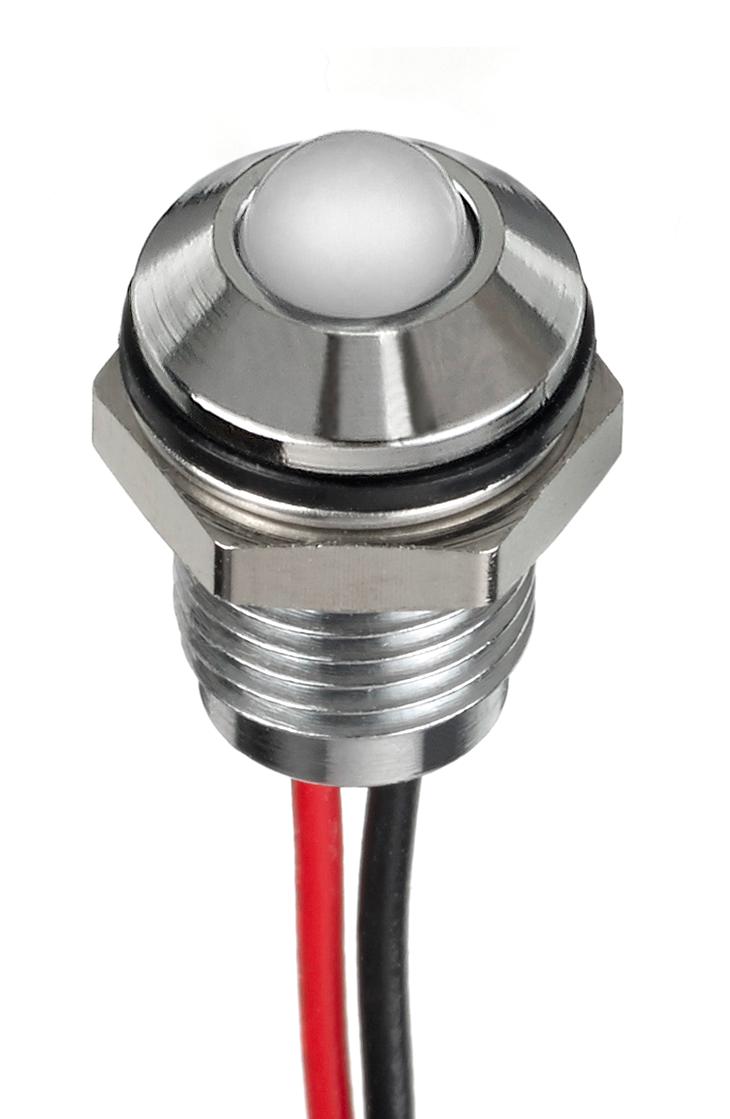

Apem Q6P5CXXW02E LED Indicator
The Q6 series panel mount LED indicators feature 6 mm size with diffused epoxy or water clear lenses, super bright or hyper bright LEDs in various colors including red, green, yellow, blue, white, and orange. They offer prominent, recessed, or flush bezel styles with different terminal types like solder lug, pins, or wire terminations. These indicators are sealed with IP67 options, operate within -40°C to +85°C temperatures, and have a life expectancy of 100,000 hours, making them ideal for industrial and control panel applications requiring high visibility and durability.
Apem Q6P5CXXW02E LED Indicator Specifications:
- Size: 6 mm panel mount
- Lens: Diffused epoxy or water clear, 3 mm
- Bezel: Prominent, recessed, or flush styles in bright chrome, black, or satin grey
- Temperature Range: -40°C to +85°C (rear epoxy), -30°C to +65°C (plastic rear body)
- Operating Voltage: 1.8V to 33V DC, various voltages specified for different LED intensities
- Max Reverse Voltage: 5 V
- Life Expectancy: 100,000 hours
- Viewing Angle: 30-100° depending on model
- Environmental Sealing: IP67 optional
- Materials: Plated brass bezel, molded polycarbonate body
- Terminals: Solder lug, pins, or 200 mm wire
- Mounting Hole: 6 mm, maximum panel thickness 7 mm
- Electrical Ratings: LED forward voltage and current vary by color, typical 20mA operation
- Certifications: UL, CSA (optional)
- Other specifications include lifetime, torque, and sealing options depending on model.
Buy the APEM Series Q6 LED: Q6P5CXXW02E
Discover the high-quality, durable LED indicators in the Q6 series suitable for industrial and control panel applications. Featuring various mounting styles, colors, and sealed IP67 options, these LEDs deliver exceptional visibility and longevity. With operating voltages from 1.8V to 33V and a life expectancy of 100,000 hours, they are perfect for demanding environments. Easily install with solder lugs, pins, or wires. Shop online now to get the best prices and fast delivery on these versatile, reliable indicator LEDs for your projects.
Order your APEM Series Q6 LED indicator today and enhance your control panels with reliable, vibrant illumination solutions.
Frequently Asked Questions
Where can I buy Apem Q6P5CXXW02E?
You can click on the BUY or RFQ button to purchase Q6P5CXXW02E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q6P5CXXW02E?
You can download the Q6P5CXXW02E datasheet or visit the Apem website for support.
Who is the manufacturer of Q6P5CXXW02E?
Apem
