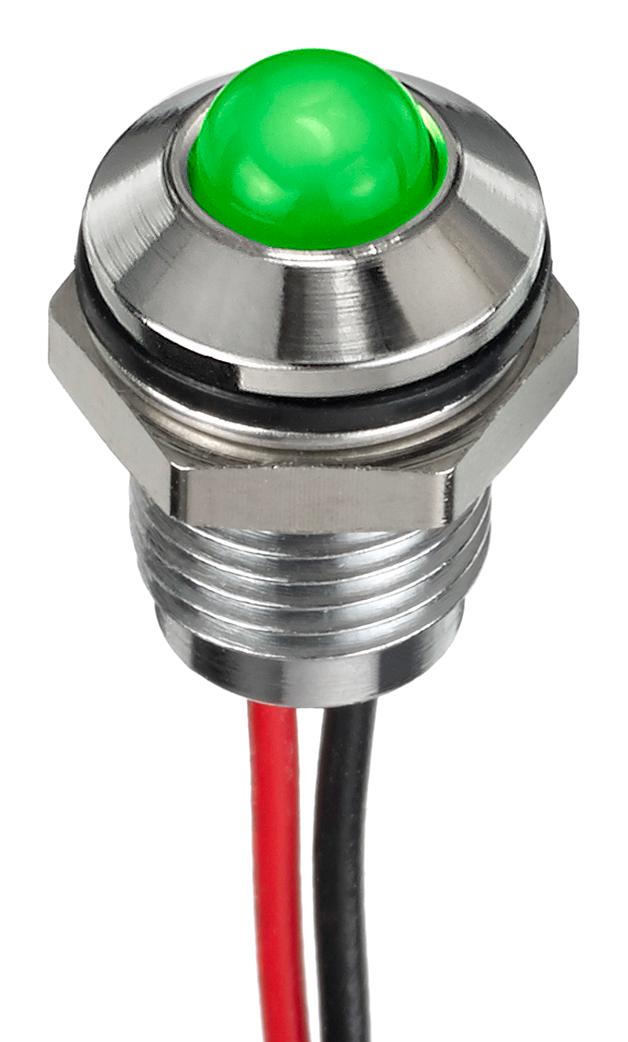

Apem Q6P5CYYRG24E LED Indicator
The Q6 series are 6 mm panel mount LED indicators with various mounting styles including prominent, recessed, and flush bezels. They feature super bright, high-intensity LEDs available in multiple colors such as red, green, yellow, blue, white, and orange, with bi-color options. These LEDs operate at voltages from 1.8V to 28V DC/AC, have an IP67 sealing option, and boast a lifespan of 100,000 hours. Made with plated brass bezels and molded polycarbonate bodies, they suit diverse industrial and control panel applications requiring reliable, long-lasting illumination.
Apem Q6P5CYYRG24E LED Indicator Specifications:
- Diameter: 6 mm
- Lens Colors: Red, Green, Yellow, Blue, White, Orange, Bi-color options
- LED Brightness: Super Bright, Hyper Bright available
- Forward Voltage: 2V to 33V DC/AC depending on color and brightness level
- Operating Voltage: 1.8V to 28V DC/AC, with resistor for desired current
- Viewing Angle: 30°-100°, depending on model
- Sealing: IP67 optional sealing for rugged environments
- Temperature Range: -30°C to +85°C depending on body type
- Material: Plated brass bezel, molded polycarbonate body
- Mounting Hole: 6 mm diameter, maximum panel thickness 7 mm
- Lifespan: 100,000 hours
- Terminals: Solder lug, Faston, or wire terminations (200 mm long)
- Max Reverse Voltage: 5V
- Torque: 4 cNm
- Usage: Industrial equipment, control panels, illumination indicators
Buy the Buy Brand Q6 Series Panel Mount LED Indicators Part Number Q6P5CYYRG24E Online
Purchase the Brand Q6 Series LED Indicator now to upgrade your control panels with bright, durable illumination. Designed for industrial environments, it features high-intensity LEDs, multiple mounting options, and sealing for rugged use. Ideal for signaling and status indication, this indicator offers long lifespan and reliable performance in various voltage configurations. Available for immediate online ordering, ensure your project benefits from superior visibility and dependable operation with this versatile LED indicator, making your controls clearer and more professional.
Order your Brand Q6 Series LED Indicator with high brightness and IP67 sealing today and enhance your control panel's visibility with reliable, long-lasting LEDs.
Frequently Asked Questions
Where can I buy Apem Q6P5CYYRG24E?
You can click on the BUY or RFQ button to purchase Q6P5CYYRG24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q6P5CYYRG24E?
You can download the Q6P5CYYRG24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q6P5CYYRG24E?
Apem
