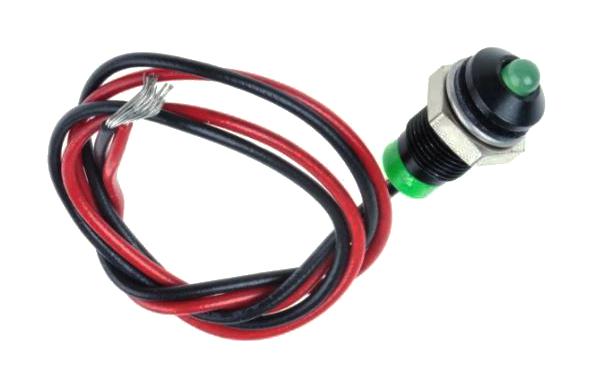

Apem Q6P7BXXG12E LED Indicator
The Q6 series panel mount LED indicators feature 6 mm diffused epoxy lenses with super bright LEDs in various colors, including red, green, yellow, blue, white, and orange. They offer prominent, recessed, and flush bezel styles with different terminal options such as solder lug, pins, or wire terminations up to 200 mm. These indicators are sealed with IP67 options, operate in temperatures from -40°C to +85°C, and provide long life expectancy of 100,000 hours. Suitable for panel mounting with a maximum thickness of 7 mm, the Q6 series ensures high visibility and durability in industrial environments.
Apem Q6P7BXXG12E LED Indicator Specifications:
- Lens Type: 3mm diffused epoxy or water clear
- Bezel Material: Plated brass in bright chrome, black, or satin grey
- Body Material: Moulded polycarbonate
- Operating Temperature Range: -40°C to +85°C (epoxy), -30°C to +65°C (plastic body)
- Ingress Protection: IP67 sealing option available
- Maximum Panel Thickness: 7 mm
- Terminal Options: Solder lug, pins, wires up to 200 mm
- Life Expectancy: 100,000 hours
- Max Reverse Voltage: 5 V
- Viewing Angle: 30-100° (model dependent)
- Operating Voltage Range: 1.8V to 33V DC, various specific voltages
- Forward Voltage: Red 2V, Green 2.2V, Yellow 6V, Blue 3.3V, White 3.3V, Orange 2V
- Luminous Intensity: Ranges from 40 med to over 10,000 med depending on color and brightness setting
- Electrical Current: 20 mA max at specified voltages
- Mounting Hole Size: 6 mm
- Sealed options available for harsh environments
- LED Colors: Red, Green, Yellow, Blue, White, Orange, Bi-color options
- Package includes various bezel and terminal configurations for flexible installation
Buy the Unilux Series Q6 LED Indicator: Q6P7BXXG12E
Enhance your control panels with the high-quality, durable LED indicators from the Q6 series. Designed for glare-free, high visibility in industrial settings, these 6 mm indicator lights feature various colors and brightness levels, including super bright and hyper bright options. With IP67 sealing for protection against dust and water, they operate from -40°C to +85°C, ensuring reliability in harsh environments. Choose from different mounting styles, terminal configurations, and sealing options to fit your specific application and guarantee long-lasting performance.
Order your Unilux Series Q6 LED indicator today and enhance your project's visibility with high-brightness, durable panel mount lighting solutions.
