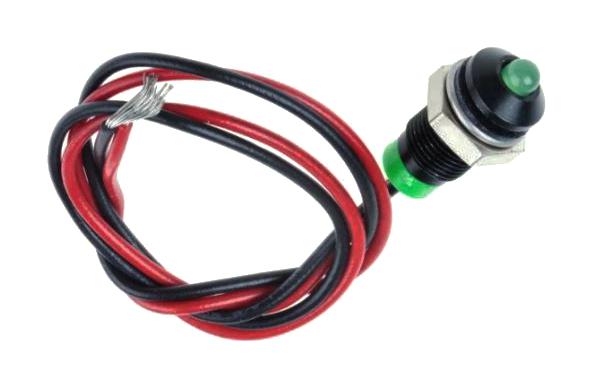

Apem Q6P7BXXG24E Panel Mount LED Indicator
The Q6 series 6 mm panel mount LED indicators feature super bright LEDs with a prominent, recessed, and flush bezel design. They are suitable for industrial signaling, control panels, and machinery. Made with plated brass bezels finished in bright chrome, black, or satin grey, and moldable polycarbonate rear bodies, these indicators support various mounting options including solder lug, pins, or wire terminations. They offer high visibility with viewing angles from 30° to 100°, a life expectancy of 100,000 hours, and environmental sealing options for IP67-rated versions, ensuring durability in demanding environments.
Apem Q6P7BXXG24E Panel Mount LED Indicator Specifications:
- Operating Voltage: 1.8 to 33 VDC, 6 VDC (5.4-6.6 V), 12 VDC (10.8-13.2 V), 24 VDC (21.6-26.4 V), 28 VDC (25.2-30.8 V)
- LED Types: Standard, super bright, hyper bright, and bi-color options available
- LED Colors: Red, green, yellow, blue, white, orange, bi-color combinations
- Viewing Angle: 30° to 100°, depend on model
- Luminous Intensity: Ranges from 40 med to 10,000 med based on brightness level and LED type
- Max Reverse Voltage: 5 V
- Life Expectancy: 100,000 hours
- Operating & Storage Temperature: -30°C to +85°C depending on body type
- Material: Plated brass bezel with bright chrome, black, or satin grey finish; Moulded polycarbonate rear body
- Sealing: Version with IP67 sealing option available
- Maximum Panel Thickness: 7 mm
- Termination Options: Solder lug, pins, or 200 mm wire leads
- Mounting Hole Diameter: 6 mm
Buy the APEM Q6P7BXXG24E – Reliable Panel Mount LED Indicators for Industrial Applications
Ensure your control panels are visible and reliable with the APEM series Q6P7BXXG24E LED indicators. These 6 mm panel mount lights come in various brightness levels, colors, and sealing options for durability in harsh environments. Easy to install with multiple connections including solder lug, pins, or wire leads, they feature long-lasting LED technology with a life span of 100,000 hours. Designed for industrial and control applications, these indicators provide high visibility, wide viewing angles, and rugged materials to withstand temperature extremes and moisture sealing requirements. Shop online now for fast delivery.
Order your APEM Series Q6P7BXXG24E LED indicator today and enhance your control panels with durable, high-brightness lighting solutions.
Frequently Asked Questions
Where can I buy Apem Q6P7BXXG24E?
You can click on the BUY or RFQ button to purchase Q6P7BXXG24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q6P7BXXG24E?
You can download the Q6P7BXXG24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q6P7BXXG24E?
Apem
