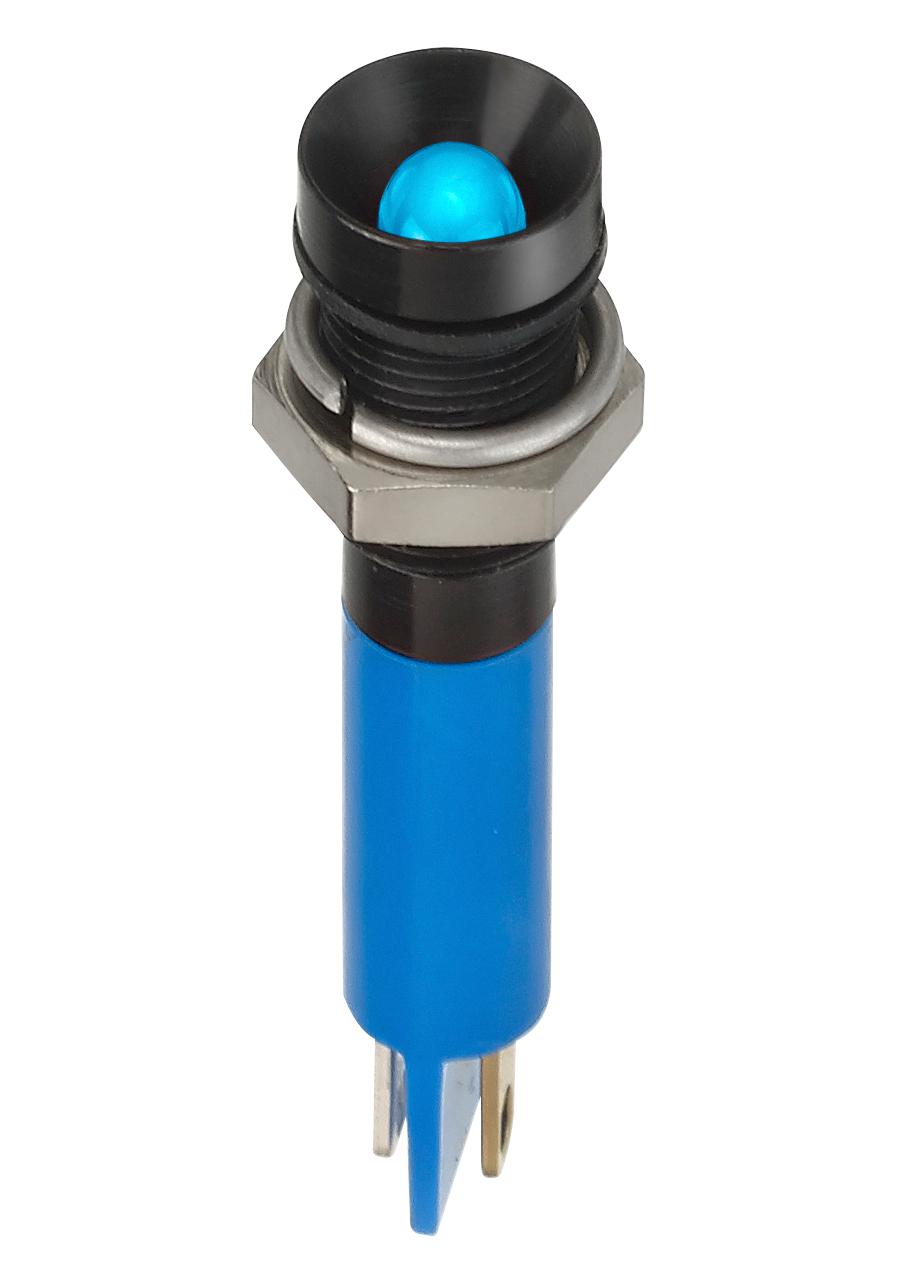

Apem Q6R1BXXB12E Panel Mount LED Indicator
This 6mm recessed black bezel LED indicator provides excellent visibility and durability with an IP67 waterproof seal, ideal for outdoor and harsh environments. Operating at 12V DC, it features a blue LED with a forward voltage of 3.3V and a luminous intensity of 2800mcd. The indicator has a viewing angle of 30-100°, 20mA operating current, and is supplied with a fixing nut and spring washer. Suitable for industrial control panels requiring robust, weatherproof status indication with long life expectancy of 100,000 hours.
Apem Q6R1BXXB12E Panel Mount LED Indicator Specifications:
- Size: 6mm panel mount
- Bezel: Black, recessed, with IP67 waterproof sealing
- LED Color: Blue
- Forward Voltage: 3.3V
- Luminous Intensity: 2800mcd
- Viewing Angle: 30-100°
- Operating Voltage: 12V DC
- Operating Current: 20mA
- Operating Temperature Range: -40 to +85°C
- Fixings: Fixing nut and spring washer included
- Sealing: IP67 (EN60529)
- Maximum Panel Thickness: 7mm
- Terminals: Solder lug, pins, or 200mm wire
- Other Features: Recessed bezel style, UL recognized component, rated for outdoor use
Buy the APEM Q6R1BXXB12E – Reliable Blue Indicator for Industrial Applications
Order the APEM Q6 series waterproof blue LED indicator online today for your industrial control panels. Designed for harsh environments, it features a 6mm recessed black bezel and IP67 sealing for reliable outdoor use. Operating at 12V DC with 2800mcd luminous intensity, it provides excellent visibility and durability. Comes with fixing nut and spring washer. Ideal for industrial applications requiring weatherproof, long-life status indicators with easy mounting and high durability, ensuring consistent performance in demanding conditions.
Get APEM Q6R1BXXB12E today—built for outdoor durability and long-lasting performance in industrial environments.
Frequently Asked Questions
Where can I buy Apem Q6R1BXXB12E?
You can click on the BUY or RFQ button to purchase Q6R1BXXB12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q6R1BXXB12E?
You can download the Q6R1BXXB12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q6R1BXXB12E?
Apem
