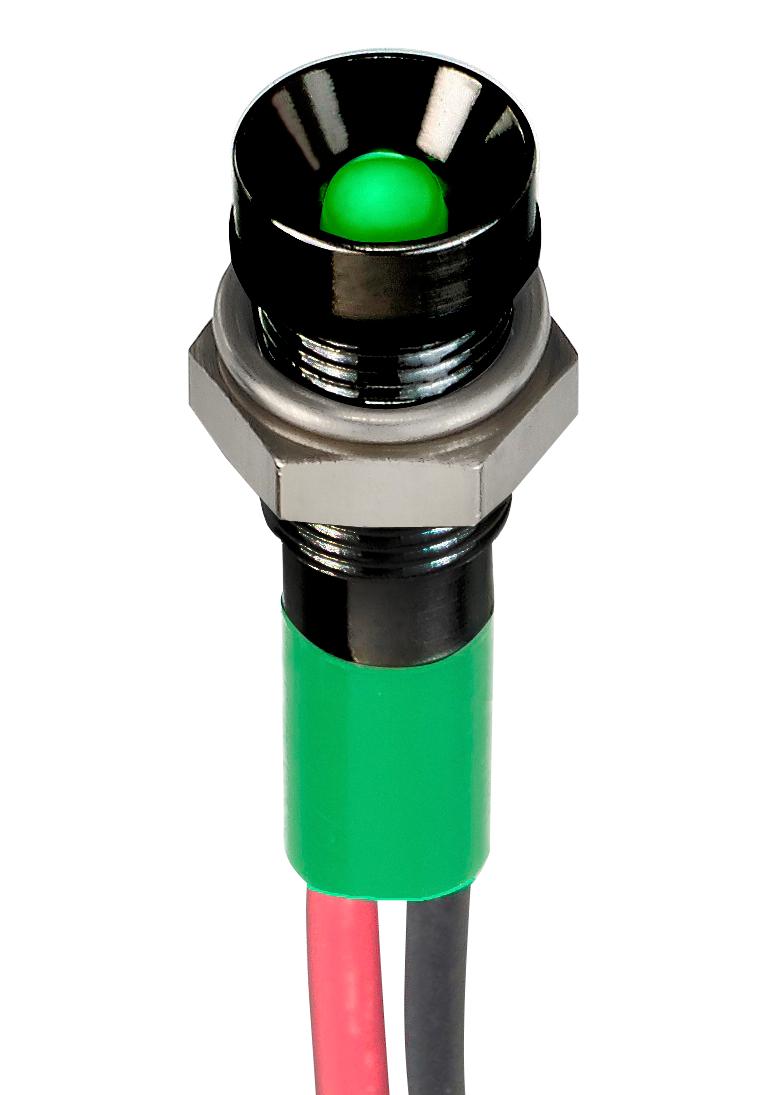

Apem Q6R7BXXG02E Panel Mount LED Indicator
The Q6 series 6 mm panel mount LED indicators offer high visibility with super bright LEDs and a durable construction. They feature diffused epoxy or water-clear lenses in various colors including red, green, yellow, blue, and white, with options for prominent, recessed, and flush bezels. Designed for easy mounting with solder lug, pin, or wire terminations, these indicators are suitable for harsh environments with IP67 sealing available. Operating temperatures range from -40°C to +85°C, ensuring reliable performance in demanding applications. They provide long life expectancy of 100,000 hours and feature robust materials like plated brass and polycarbonate rear bodies.
Apem Q6R7BXXG02E Panel Mount LED Indicator Specifications:
- Lens Colors: Red, Green, Yellow, Blue, White, Orange, Bi-color options
- Lens Type: Diffused epoxy or water-clear
- Material: Plated brass bezel, polycarbonate rear body
- Max Reverse Voltage: 5 V
- Viewing Angle: 30-100°
- Life Expectancy: 100,000 hours
- Operating Temperature Range: -40°C to +85°C
- Sealing: IP67 (optional)
- Max Panel Thickness: 7 mm
- Mounting Hole Diameter: 6.00 mm +0.15/-0.0 mm
- Terminals: Solder lug, pins, or wires (200 mm long)
- Operating Voltage: 1.8 to 33 VDC, with various standard voltages (6V, 12V, 24V, 28V, etc.)
- LED Types: Standard, super bright, hyper bright
- Current: Max 20 mA
- Forward Voltage: Varies per color and brightness level
- Sealing Option: Unsealed or IP67
- Dimensions: Mounting hole diameter 6 mm, panel thickness up to 7 mm
- Material Treatment: Bright chrome, black, satin grey finishes
Buy the Buy Q6 Series Panel Mount LED Indicators Part Number Q6R7BXXG02E Online
Purchase the Q6 series panel mount LED indicator easily online for reliable high-brightness illumination suitable for industrial control panels, machinery, and alarming systems. These indicators feature a durable construction with diffused epoxy lenses in multiple colors, high IP67 sealing for environmental protection, and various terminal options for flexible installation. Operating across a wide temperature range and offering an impressive lifespan of 100,000 hours, this product ensures long-term performance. Simply order online today to enhance your equipment's visibility and operational safety with a trusted, long-lasting LED indicator.
Get Q6 series LED indicators today—built for high visibility, durability, and versatile mounting in demanding environments.
Frequently Asked Questions
Where can I buy Apem Q6R7BXXG02E?
You can click on the BUY or RFQ button to purchase Q6R7BXXG02E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q6R7BXXG02E?
You can download the Q6R7BXXG02E datasheet or visit the Apem website for support.
Who is the manufacturer of Q6R7BXXG02E?
Apem
