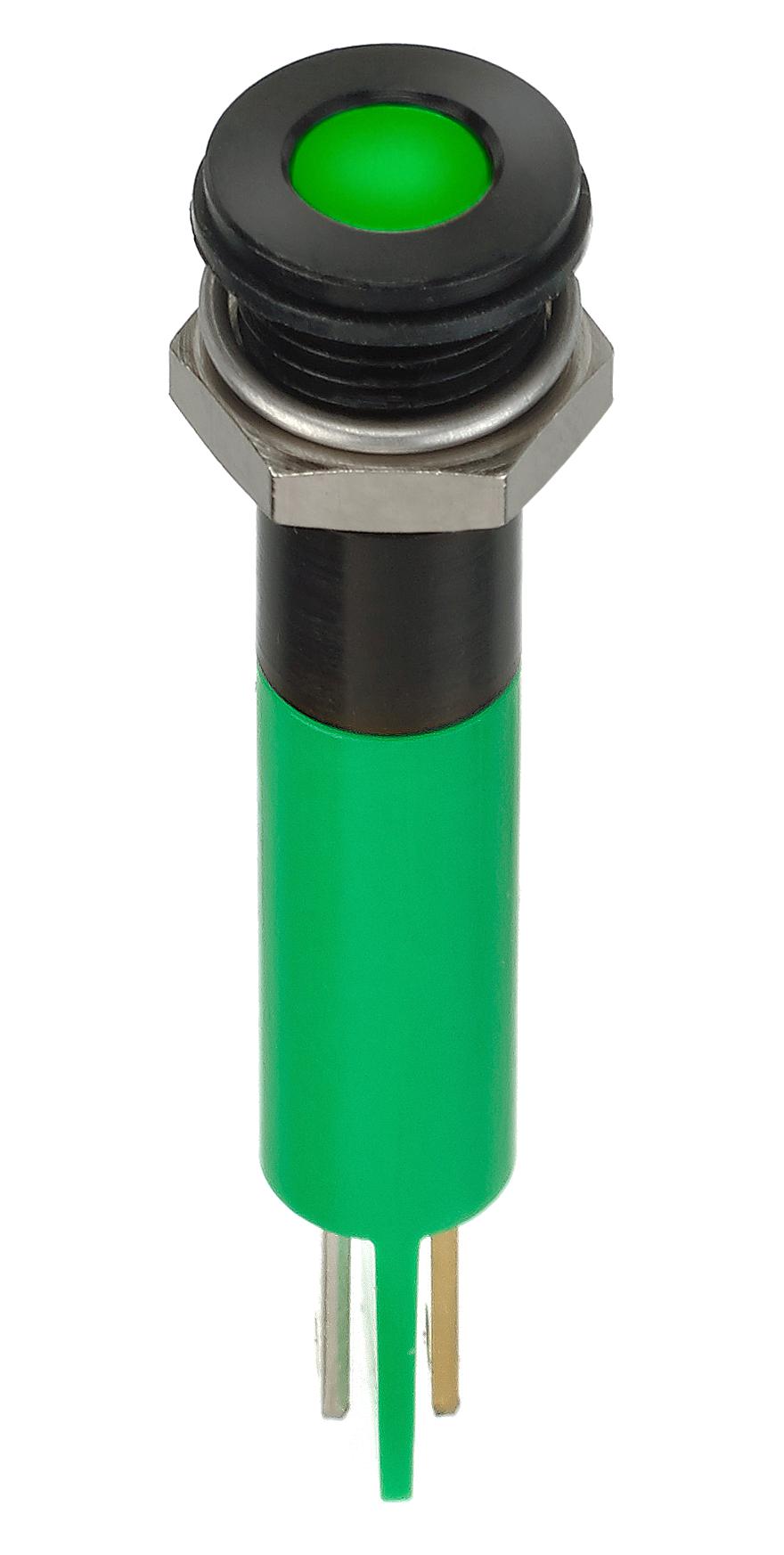

Apem Q8F1BXXG02E LED Indicator Light
The Q8 series provides 8 mm panel mount LED indicators with bright, super bright, and hyper bright LEDs in various colors like red, green, yellow, blue, and white. Designed for durability, these indicators feature prominent, recessed, and flush bezel styles, suitable for panel thickness up to 7 mm, with IP67 sealing options available. They operate at voltages from 1.8 V to 33 VDC and AC, with a life expectancy of 100,000 hours. Made from molded polycarbonate and plated brass bezels, they are ideal for industrial applications requiring high visibility and long-term reliability.
Apem Q8F1BXXG02E LED Indicator Light Specifications:
- LED Colors: Red, Green, Yellow, Blue, White, Orange, Tricolor, Bi-color
- Operating Voltage: 1.8 V to 33 VDC, AC 110V, 220V
- Forward Voltage: 1.8 to 33 VDC, with up to 20mA current
- Viewing Angle: 30° to 100° depending on model
- Life Expectancy: 100,000 hours
- Sealing: IP67 option available
- Panel Thickness: Maximum 7 mm
- Materials: Molded polycarbonate body, plated brass bezel, stainless steel optional
- Terminals: Solder lug, fastons, wires (200 mm length), pins
- Mounting Style: Prominent, recessed, flush bezel
- Environmental Temp Range: -30°C to +85°C (epoxy body), -40°C to +85°C (plastic body)
- Max Reverse Voltage: 5 V
- Torque: 20-25 cNm
Buy the Q8 Series LED Indicators: Q8F1BXXG02E
Order the Q8 series LED indicator lights online now to enhance your control panels with bright, durable, and high-performance illumination. These indicators feature diverse colors, ratings, and sealing options suitable for various industrial environments. With options like prominent, recessed, and flush bezels, and materials such as polycarbonate and plated brass, they ensure long-term reliability and excellent visibility. Perfect for industrial automation, machinery, and control systems, this LED indicator series offers quick installation and superior durability for ongoing operations.
Get Q8 Series LED indicators today—built for high visibility, long-lasting durability, and reliable industrial performance.
Frequently Asked Questions
Where can I buy Apem Q8F1BXXG02E?
You can click on the BUY or RFQ button to purchase Q8F1BXXG02E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q8F1BXXG02E?
You can download the Q8F1BXXG02E datasheet or visit the Apem website for support.
Who is the manufacturer of Q8F1BXXG02E?
Apem
