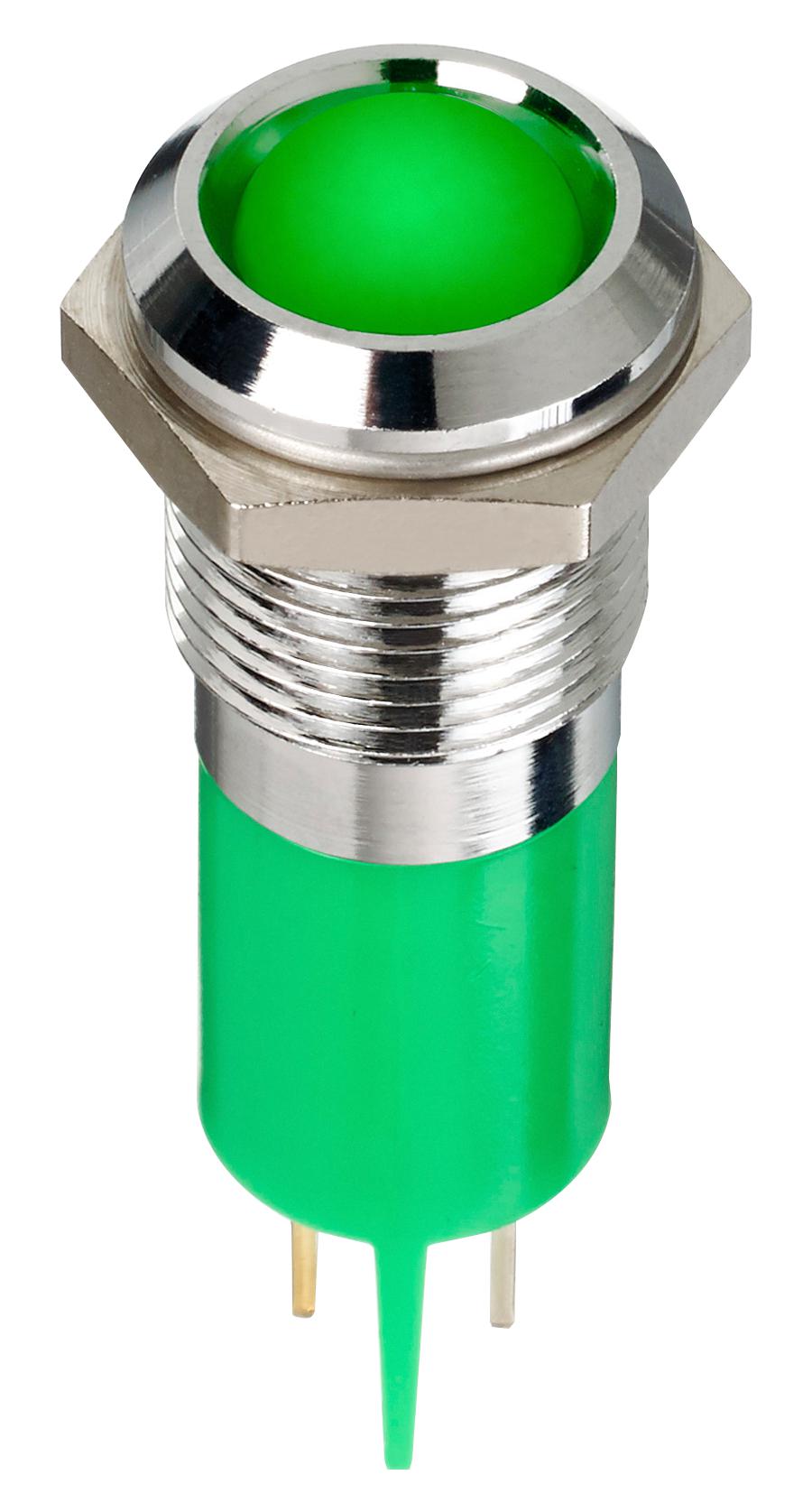

Apem Q16P1CXXHG12E LED Indicator
The Q16 series panel mount LED indicators feature 16 mm diameter with optional sealed IP67 versions, high brightness LEDs, and secret until lit polycarbonate inserts. Suitable for various environments with operating temperatures from -40°C to +85°C, these indicators are available with different bezel finishes, including bright chrome, black, and satin grey. They support multiple LED colors, with optional custom engraving, and have versatile termination options like solder lug, faston terminals, pins, or wires. Designed for robust use in industrial and control applications, they provide long life expectancy and reliable illumination.
Apem Q16P1CXXHG12E LED Indicator Specifications:
- Diameter: 16 mm
- Operating Temperature Range: -40°C to +85°C
- Sealing Option: IP67 (EN60529)
- Viewing Angle: 30-100°
- Life Expectancy: 100,000 hours
- Max Reverse Voltage: 5 V
- Max Panel Thickness: 11 mm
- Bezel Finishes: Bright chrome, black, satin grey
- Materials: Moulded polycarbonate rear body, plated brass bezel
- Terminals: Solder lug, faston, pins, wires (200 mm length)
- LED Colors: Red, Green, Yellow, Blue, White, Orange, RGB, Bi-color, Tricolor
- Operating Currents: 20 mA typical for standard LEDs, various voltages supported
- Forward Voltage: Ranges from 2V to 35V depending on color and brightness
- Construction: Metal bezel with sealed plastic body, optional custom engraving
- Mounting: Suitable for panel thickness up to 11 mm, with different bezel styles
- Environmental Conditions: Suitable for demanding industrial environments
- Connection Options: Rear epoxy wires, pins, short body wires or pins
Buy the APEM Series Q16 LED Indicators: Q16P1CXXHG12E
Order the APEM Q16 series LED indicator online today to enjoy fast delivery, competitive prices, and trusted quality. Perfect for industrial control panels, signaling, and alert systems, these indicators offer high brightness, IP67 sealing, and a variety of colors. Easy to install with versatile mounting options, they ensure long-lasting performance in demanding environments. Whether you need standard or custom engraving, placing your order online provides a convenient way to upgrade your control panel with durable, efficient lighting solutions designed to meet your specific needs.
Buy APEM Q16P1CXXHG12E LED indicators now and experience unmatched durability and bright, reliable illumination for industrial applications.
