Apem Q8F1CXXB02E LED Indicator
The Q8 series are 8 mm panel mount LED indicators designed for industrial applications, offering distinctive features such as super bright LEDs with 5 mm diffused epoxy lenses or water-clear lenses. They are available in prominent, recessed, or flush bezel styles with various termination options, including solder lug, faston terminals, pins, or 200 mm wires. Built with durable materials like plated brass or stainless steel bezels, these indicators provide IP67 sealing, wide operating temperature ranges, and long life expectancy up to 100,000 hours. Suitable for panel thickness up to 7 mm, they are ideal for status indication in machinery, control panels, and automation systems.
Apem Q8F1CXXB02E LED Indicator Specifications:
- Lens Size: 5 mm diffused epoxy or water clear
- Bezel Material: Plated brass in chrome, black, satin grey, or stainless steel 316L (flush only)
- Sealing: IP67 option available
- Operating Temperature Range: -30°C to +65°C rear plastic, -40°C to +85°C rear epoxy
- Max Reverse Voltage: 5 V
- Viewing Angle: 30-100° (model dependent)
- Life Expectancy: 100,000 hours
- Torque: 20 to 25 cNm
- Max Panel Thickness: 7 mm
- Electrical: Forward voltage 1.8 to 33 VDC, operating current up to 20 mA, various voltage and color options including red, green, yellow, blue, white, and orange
- Brightness: Super bright and hyper bright LED options with luminous intensities up to 110,000 mcd
- Terminals: Solder lug, faston, pins, or 200 mm wires
- Physical Dimensions: 8 mm diameter, various mounting styles including prominent, recessed, flush, short body, extended short body
- Environmental: IP67 sealing, temperature and voltage ranges specified for industrial use

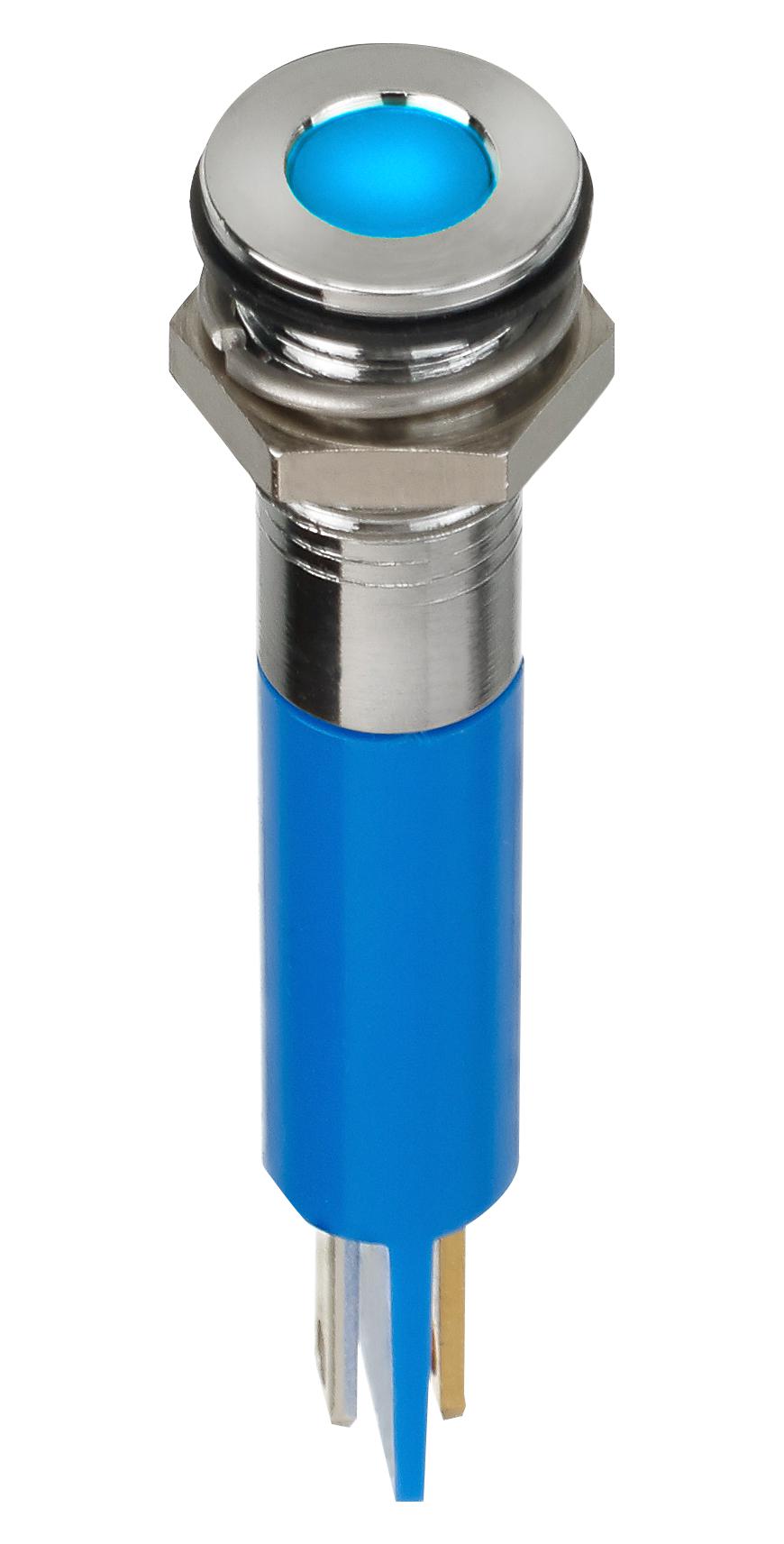

Buy the APEM Series Q8 LED Indicators Durable Bezel: Q8F1CXXB02E
Enhance your control panels with the Q8 series LED indicators, known for their superior brightness, durable construction, and IP67 sealing. These indicators are available in various mounting styles including prominent, recessed, and flush bezels, with options for super bright LEDs in multiple colors. Designed for easy installation with solder lug, faston, pins, or wires, they operate reliably across wide temperature ranges. Perfect for industrial automation, machinery, and status indication, they ensure long-lasting performance and clear visibility for your applications.
Buy Q8 series LED indicators now and experience unmatched durability, high brightness, and versatile mounting options for your industrial projects.
Frequently Asked Questions
Where can I buy Apem Q8F1CXXB02E?
You can click on the BUY or RFQ button to purchase Q8F1CXXB02E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q8F1CXXB02E?
You can download the Q8F1CXXB02E datasheet or visit the Apem website for support.
Who is the manufacturer of Q8F1CXXB02E?
Apem
