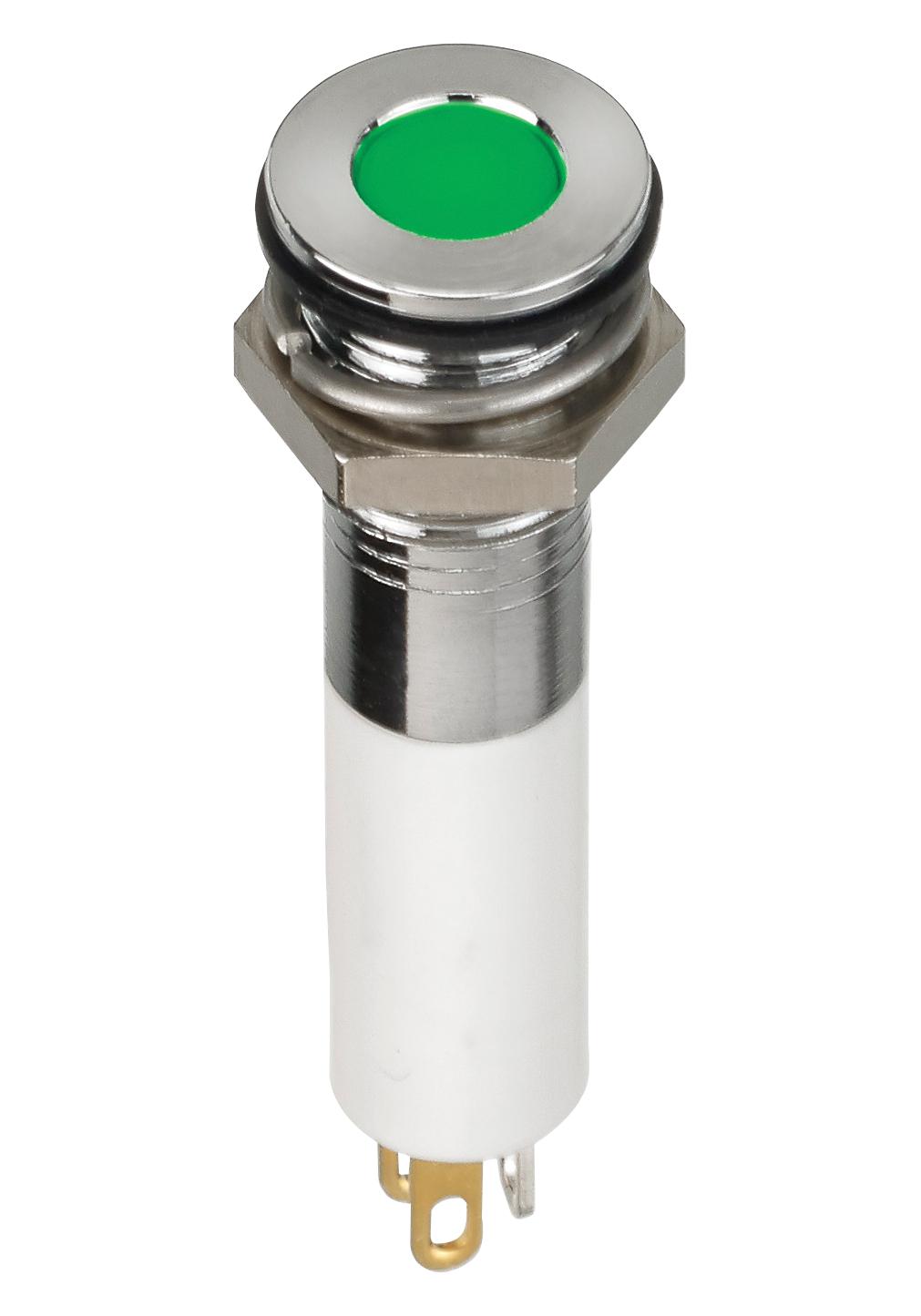

Apem Q8F1CZZRYG24E Panel Mount LED Indicator
The Q8 series panel mount LED indicators feature 8 mm diameter lenses with options for prominent or recessed bezels and various terminal types. These LEDs offer super bright illumination with colors including red, green, yellow, blue, white, and bi-color options, suitable for industrial, control panels, and machinery. They operate at voltages ranging from 1.8V to 33V DC, with a life expectancy of 100,000 hours, and are sealed to IP67 standards for environmental protection. The high-quality materials include plated brass bezels finished in chrome, black chrome, or satin grey, with molded polycarbonate rear bodies. They are designed for panel thickness up to 7 mm and feature multiple mounting and wiring options, making them versatile for various applications.
Apem Q8F1CZZRYG24E Panel Mount LED Indicator Specifications:
- Lens Size: 8 mm diameter
- Colors Available: Red, Green, Yellow, Blue, White, Orange, Bi-color
- Operating Voltage: 1.8V to 33V DC, 110VAC, 220VAC
- Current: Max 20mA, typical 6-20mA depending on model
- Luminous Intensity: Up to 110,000 med for super bright versions
- Viewing Angle: 30-100° (dependent on model)
- Life Expectancy: 100,000 hours
- Ingress Protection: IP67 sealing option available
- Housing Material: Molded polycarbonate rear body, plated brass bezel
- Bezel Finish: Bright chrome, black chrome, satin grey
- Maximum Panel Thickness: 7 mm
- Terminals: Solder lug, faston, pins, or 200 mm wire leads
- Mounting Hole: 2.3 mm +0.0157 mm
- Operating & Storage Temperature: -40°C to +85°C (rear epoxy body), -30°C to +65°C (plastic rear)
- Sealing Standard: IP67 (EN60529)
- Dimensions: 8 mm diameter lens with various terminal configurations
Buy the Buy Brand Q8 Series Panel Mount LED Indicator Part Number Q8F1CZZRYG24E Online
Purchase the Q8 series panel mount LED indicator online today and enjoy high-intensity, long-lasting illumination suitable for industrial panels, machinery, and control systems. With multiple color options including red, green, yellow, blue, and white, these indicators are designed for easy installation with solder lug, faston, pins, or wire terminations. Sealed to IP67, they provide reliable performance in harsh environments, with a lifespan of up to 100,000 hours, and are made with durable materials including chrome-finished brass bezels and molded polycarbonate bodies. Ensure your control panels are highly visible and protected—order now!
Get Brand Q8 Series LED Indicator Q8F1CZZRYG24E today—built for high brightness, durability, and versatile mounting for industrial control panels.
