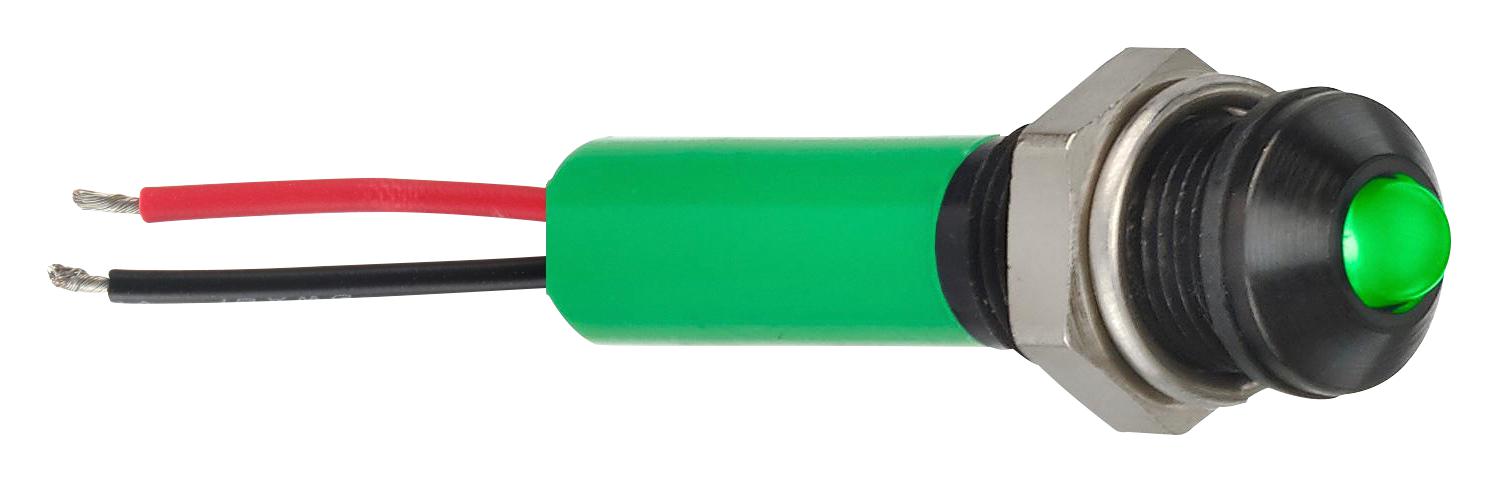

Apem Q8P3BZZRYG24E Panel Mount LED Indicators
The Q8 series panel mount LED indicators are high-brightness, 8 mm diameter lights designed for panel installation with various bezel styles, including prominent, recessed, flush, and variants with different terminal options. They feature diffused epoxy lenses in multiple colors such as red, green, yellow, blue, white, and orange, with both super bright and hyper bright intensity options. Suitable for environments up to IP67 sealing, these indicators operate within specified voltage ranges, have a long life expectancy of 100,000 hours, and include robust materials like plated brass, stainless steel, and molded polycarbonate bodies, making them ideal for demanding industrial applications.
Apem Q8P3BZZRYG24E Panel Mount LED Indicators Specifications:
- Diameter: 8 mm
- Lens Material: Diffused epoxy
- Lens Colors: Red, Green, Yellow, Blue, White, Orange
- Bezel Material: Plated brass, stainless steel (flush only)
- Sealing: IP67 (optional)
- Operating Temperature: -30 °C to +65 °C (plastic body), -40 °C to +85 °C (epoxy body)
- Maximum Panel Thickness: 7 mm
- Viewing Angle: 30-100°
- Life Expectancy: 100,000 hours
- Max Reverse Voltage: 5 V
- Electrical Voltage Range: 1.8 V to 33 VDC, 110 VAC/220 VAC options
- Operating Current: 20 mA maximum at specified voltages
- Material: Moulded polycarbonate rear body, bright chrome, black, satin grey, or stainless steel bezel
- Terminals: Solder lug, faston, pins, or wire terminations
- Torque: 20-25 cNm
Buy the Buy BrandQ8 Series Panel Mount LED Indicators Part Number Q8P3BZZRYG24E Online
Enhance your industrial control panels with our high-brightness 8 mm LED indicators. Designed for durability and versatility, these indicators feature various colors like red, green, yellow, blue, white, and orange with optional hyper bright illumination. Suitable for harsh environments with IP67 sealing, they operate within a wide voltage range, have a lifespan of 100,000 hours, and include multiple terminal options—solder lug, faston, pins, or wires. Perfect for demanding industrial applications requiring reliable, long-lasting visual status indication.
Get BrandQ8 Series Panel Mount LED Indicator Q8P3BZZRYG24E today—built for high brightness, long-lasting durability, and versatile installation options.
Frequently Asked Questions
Where can I buy Apem Q8P3BZZRYG24E?
You can click on the BUY or RFQ button to purchase Q8P3BZZRYG24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q8P3BZZRYG24E?
You can download the Q8P3BZZRYG24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q8P3BZZRYG24E?
Apem
