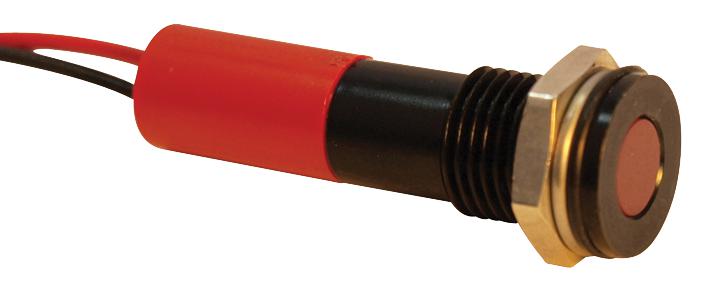

Apem Q8F3BXXR24E LED indicator
The Q series panel-mount LED indicator features a plated brass bezel in bright chrome, black chrome, or satin grey finishes, with ABS plastic options in gold and black. It includes a clear 8mm diffused epoxy lens for high visibility and features wiring with a 200mm long, 22 AWG red wire for the anode and black wire for the cathode. The device supports bicolor and tricolor LEDs, providing dual and multi-color indications up to 28VDC. It is epoxy sealed at the rear for durability, with mounting options for panel thickness up to 12mm, suitable for industrial and signaling applications. Includes fixing nut and spring washer.
Apem Q8F3BXXR24E LED indicator Specifications:
- Bezel Material: Plated Brass or ABS plastic
- Bezel Finishes: Bright Chrome, Black Chrome, Satin Grey, Gold
- Lens Diameter: 8mm diffused epoxy
- Wiring: 200mm long, 22 AWG, Red (Anode), Black (Cathode)
- LED Types: Bicolor, Tricolor, Super Bright options available
- Voltage Range: Up to 28VDC, multi-voltage options
- Connection Terminals: Gold Faston (+), Silver Terminal (-)
- Maximum Panel Thickness: 12mm prominent, 10mm flush mount
- Sealed at Rear: Epoxy sealed for durability
- Mounting: Panel mount with fixing nut and spring washer
- Lifespan: 100,000 hours
- Operating Temperature: -40°C to +85°C
- Viewing Angle: 100°
- Max Reverse Voltage: 5V
Buy the APEM Q8F3BXXR24E – Reliable Bright LED Indicator for Industrial Applications
Order the APEM Q8F3BXXR24E LED indicator online today to enhance your industrial control panels. Features include durable epoxy sealing, multiple bezel finishes, high visibility diffused lens, and support for multi-voltage options up to 28VDC. Its sealed rear ensures protection against dust and moisture, ideal for demanding environments. Easy to install with included fixing nut and spring washer, this LED indicator provides reliable performance and long lifespan of 100,000 hours. Perfect for industrial signaling, automation, and control systems requiring bright, dependable visual indicators.
Buy APEM Q8F3BXXR24E now and experience unmatched durability and visibility in control panels and industrial signaling systems.
Frequently Asked Questions
Where can I buy Apem Q8F3BXXR24E?
You can click on the BUY or RFQ button to purchase Q8F3BXXR24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q8F3BXXR24E?
You can download the Q8F3BXXR24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q8F3BXXR24E?
Apem
