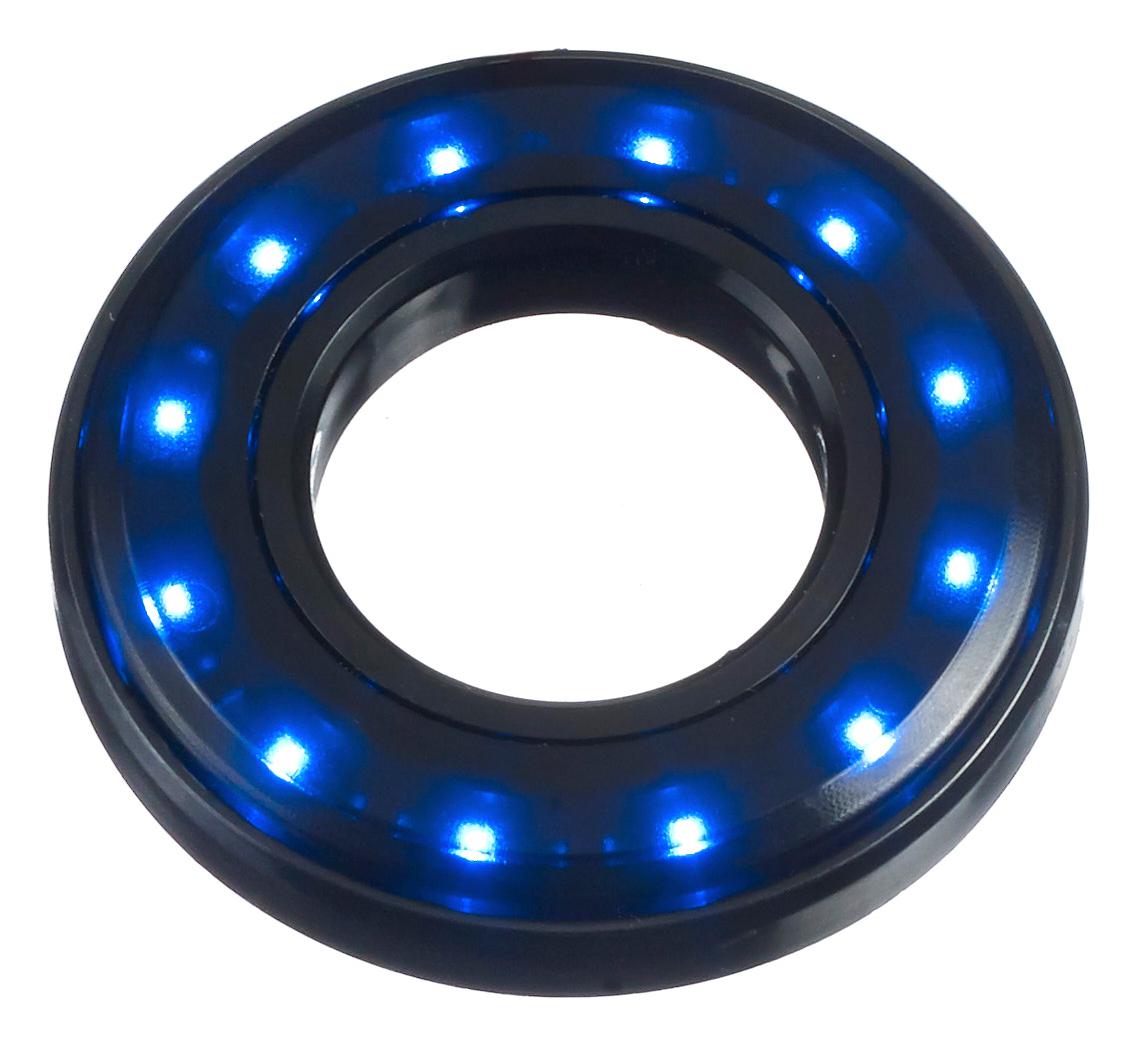

Apem QH22027RGBC Halo LED indicator
The QH series Halo LED illumination lights are designed for panel mounting with sealed IP67 protection, suitable for industrial and control applications. Available in single, dual, and RGB colors, these LEDs feature high durability with a life expectancy of 50,000 hours. Constructed from PC materials for body and lens, they operate at 12 to 24 VDC with currents between 20 mA to 42 mA. Compatible with 16, 19, and 22 mm panel cutouts, they provide efficient illumination for switches and indicators in harsh environments, including emergency stop integrations and LED strip lighting.
Apem QH22027RGBC Halo LED indicator Specifications:
- Panel Seal: IP67 to EN60529 : 1992
- Operating Voltage: 12 VDC to 24 VDC
- Operating Current: 20 mA to 42 mA
- LED Life Expectancy: 50,000 Hours
- LED Types: Single, dual, RGB
- LED Quantity: 12 LEDs per PCB
- Materials: Body and lens made of PC
- Operating Temperature Range: -30°C to +70°C
- Max Reverse Voltage: 5 VDC
- Wire Terminations: 200 mm, 26 AWG UL1061 wire
- Panel Cutouts: 16 mm, 19 mm, 22 mm
- Colors: Black, Yellow, Green, Blue, White, RGB options
- Seal: Panel sealing up to IP67
- Suitable for switches, indicators, emergency stop integration
- Mechanical Dimensions: 16 mm, 19 mm, 22 mm, 22 mm oversized
Buy the Buy APEM QH series Halo LED Part Number QH22027RGBC Online
Enhance your control panel with the durable APEM Halo LED indicator from the QH series. These sealed IP67 LEDs are available in various colors including RGB, ensuring bright and reliable illumination. Designed for quick installation in 16, 19, or 22 mm cutouts, they operate on 12 to 24 VDC with high longevity of 50,000 hours. Perfect for machinery, emergency stops, and industrial equipment, these LEDs combine sturdy materials and versatile wiring options for long-term, maintenance-free performance. Order online today and upgrade your control systems with confidence.
Get APEM QH22027RGBC today—designed for robust panel illumination and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy Apem QH22027RGBC?
You can click on the BUY or RFQ button to purchase QH22027RGBC from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part QH22027RGBC?
You can download the QH22027RGBC datasheet or visit the Apem website for support.
Who is the manufacturer of QH22027RGBC?
Apem
