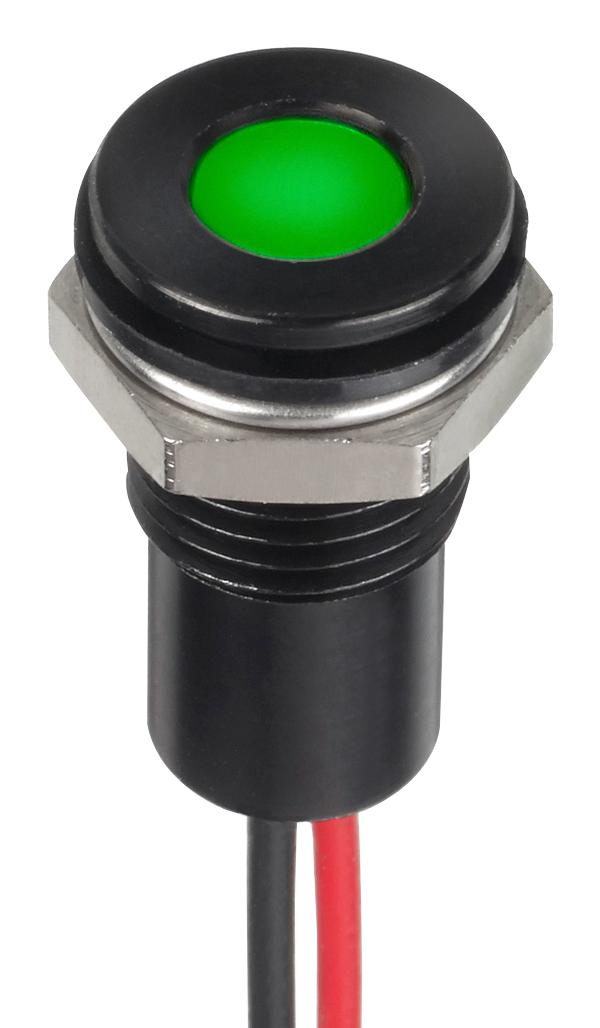

Apem Q8F5BXXHG220E LED Indicator
The Q8 series panel mount LED indicators are designed with a distinctive bezel style, available in prominent, recessed, or flush options, with various terminal configurations including solder lug, faston, and wire terminations. These indicators feature ultra-bright or super-bright LEDs in multiple colors such as red, green, yellow, blue, white, and orange, with voltage ranges from 2V DC up to 220VAC. Sealed IP67 versions are available for harsh environments, with a long life expectancy of 100,000 hours. Suitable for panel thicknesses up to 7 mm, these indicators are ideal for industrial and control applications.
Apem Q8F5BXXHG220E LED Indicator Specifications:
- Material: Moulded polycarbonate rear body, plated brass or stainless steel bezel
- Bezel Finish: Bright chrome, black, satin grey, or stainless steel (flush version only)
- Lens Diameter: 8 mm
- LED Types: Ultra-bright, super-bright, and hyper-bright options
- Voltage Range: 2 VDC to 220 VAC with resistor requirements for certain models
- Sealing: IP67 sealed models available
- Operating & Storage Temperature: -30°C to +65°C (rear plastic), -40°C to +85°C (epoxy body)
- Viewing Angles: 30° to 100°, depending on model
- Life Expectancy: 100,000 hours
- Maximum Panel Thickness: 7 mm
- Mounting: Panel mounting with various bezel and terminal configurations
- Electrical: Max reverse voltage 5 V, torque 20–25 cNm, operating currents up to 20mA
- Terminals: Solder lug, faston, pins, or wires (200 mm length)
Buy the Buy Q8 LED Indicator Part Number Q8F5BXXHG220E Online
Purchase the Q8 series panel mount LED indicator online today to enhance your control panels with high-quality, long-lasting bright LEDs. These indicators come with IP67 sealing options, making them suitable for harsh environments. Available in multiple colors including red, green, yellow, blue, white, and orange, they feature various terminal options such as solder lug, faston, pins, or wires. Designed for panel thickness up to 7 mm, with a life expectancy of 100,000 hours, these indicators provide reliable illumination for industrial and automation applications. Easy to install and durable, order now for quick delivery and upgrade your control systems efficiently.
Order your Q8 series LED indicator with IP67 sealing and bright LEDs today and give your industrial control projects the dependable quality they deserve.
