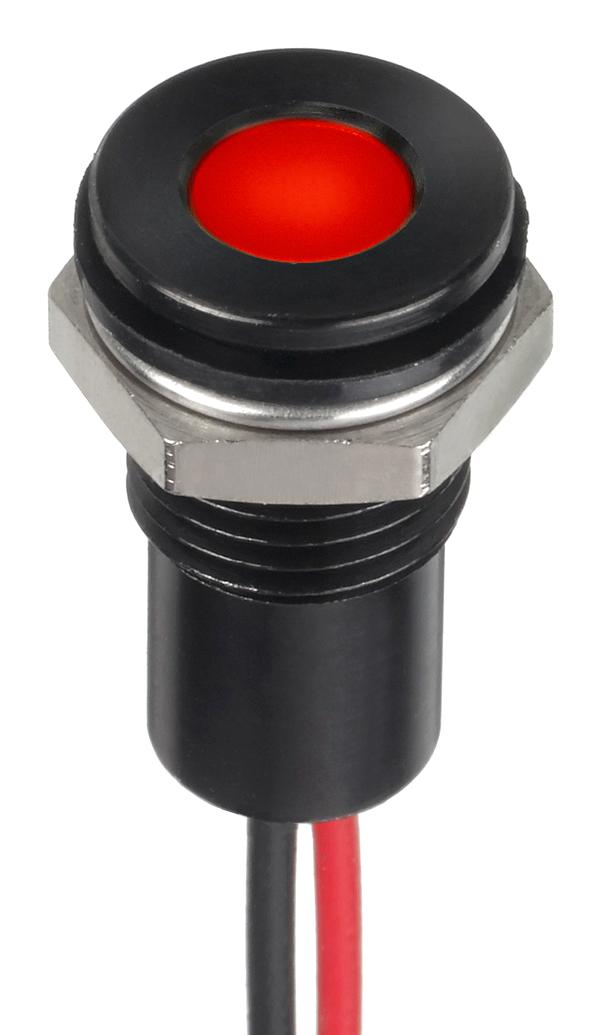

Apem Q8F5BXXHR12E LED Indicator
The Q8 series panel mount LED indicators are designed for industrial applications requiring high visibility and durability. Featuring 5 mm diffused epoxy lenses in multiple colors, including red, green, yellow, blue, and white, these indicators offer super bright and hyper bright LED options for enhanced visibility. They are available with prominent or flush bezels in various finishes such as bright chrome, black, satin grey, and stainless steel. Suitable for sealing up to IP67 and a maximum panel thickness of 7 mm, they provide long life expectancy of 100,000 hours and operate across a wide voltage range. Mounting options include solder lug, faston terminals, pins, or wires with a variety of mounting holes and configurations, making them versatile for demanding environments.
Apem Q8F5BXXHR12E LED Indicator Specifications:
- Lens Size: 5 mm diffused epoxy
- Colors: Red, Green, Yellow, Blue, White, Orange, Tricolor, Bi-color
- Brightness: Super Bright and Hyper Bright LEDs
- Operating Voltage Range: 1.8 to 33 VDC, up to 110 VAC and 220 VAC (requires resistor for AC)
- Forward Voltage: Red 1.8-6 V, Green 2.1-13.2 V, Yellow 2.1-26.4 V, Blue ~3.0 V, White ~3.0 V, Orange ~2.2 V
- Operating Current: Max 20 mA
- Viewing Angle: 30-100°
- Life Expectancy: 100,000 hours
- Sealing: IP67 option available
- Maximum Panel Thickness: 7 mm
- Materials: Bezel in plated brass with chrome, black, satin grey, or stainless steel in flush version; rear body molded polycarbonate
- Mounting: Solder lug, faston terminals, pins, or wires (200 mm length)
- Environmental Temperature Range: -30°C to +85°C depending on rear body
- Max Reverse Voltage: 5 V
Buy the Brandname Q8 Series – Reliable LED Indicator for Industrial Applications
Discover the high-quality, reliable LED indicators of the Q8 series available online. Perfect for industrial control panels, these indicators feature super bright and hyper bright LEDs in multiple colors. IP67 sealing ensures durability against dust and water, while versatile mounting options provide easy installation in tight spaces. With a long lifespan of 100,000 hours, they ensure consistent performance under demanding conditions. Choose from prominent or flush bezels with various finishes, making these indicators ideal for automation, machinery, and safety systems requiring clear, bright visual signals.
Order your Brandname Q8 series LED indicators today and enhance your control panels with durable, high-brightness illumination designed for demanding environments.
