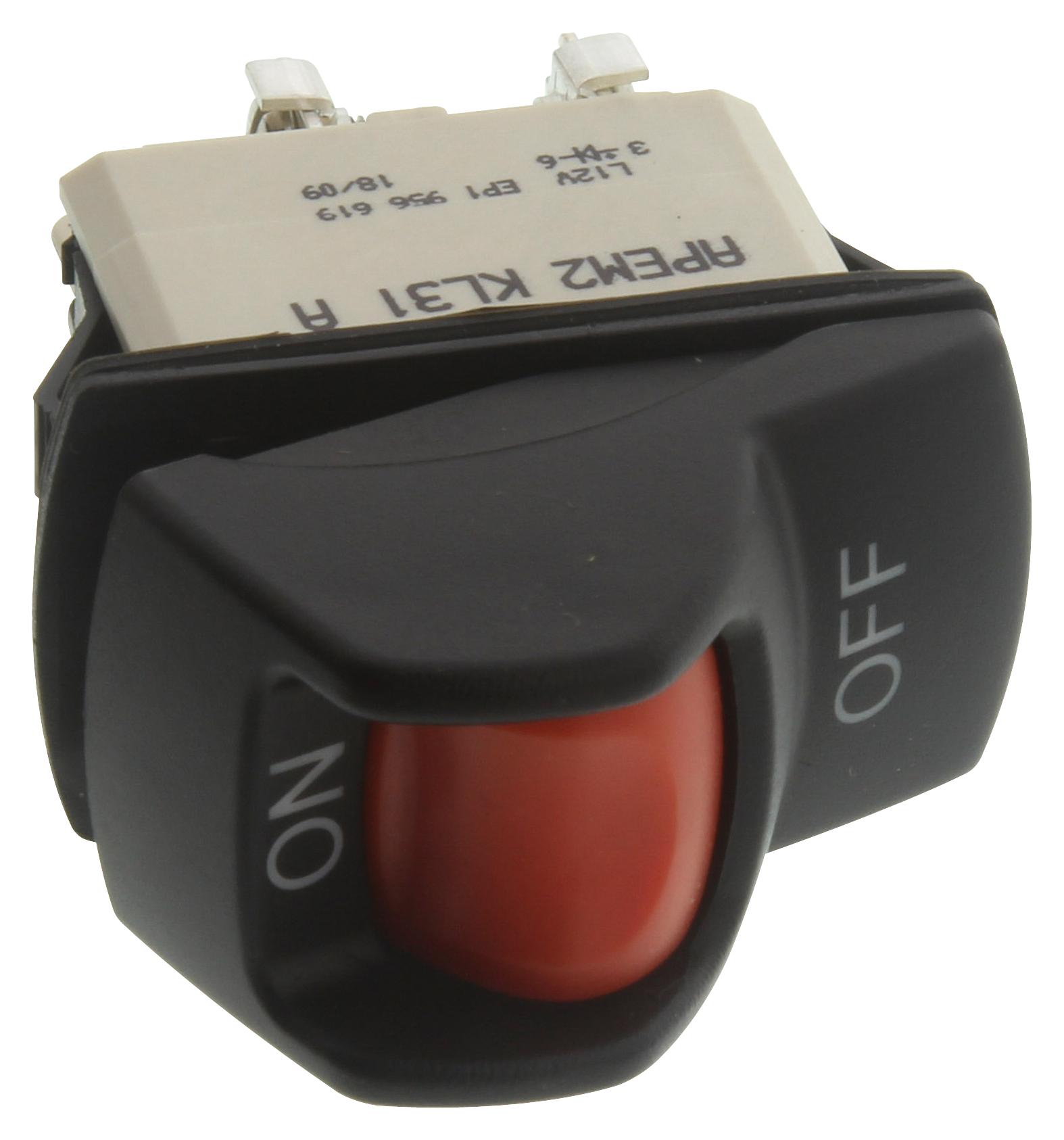

Apem KL310AKDA226N0102 Locking Power Rocker Switch
The KL310 locking power rocker switch offers reliable operation with dual-position locking, robust materials, and optional sealing up to IP69K. Designed for industrial and vehicle applications, it features silver or gold-plated contacts rated at 5 A 24 VDC with extended mechanical life up to 150,000 cycles. The switch withstands temperatures from -40°C to +85°C and resists salt spray for 96 hours. Its sealed version ensures water and dust tightness, making it suitable for harsh environments. Easy to mount on panels between 1.10 mm and 5 mm thick, it incorporates laser-etched symbols for clear identification.
Apem KL310AKDA226N0102 Locking Power Rocker Switch Specifications:
- Mechanical life: 150,000 cycles minimum.
- Current/Voltage rating: 5 A 24 VDC, resistive load; 10 A 24 VDC (terminals 6.35 x 0.8); gold plated contacts: 20 mA 12 V, 150,000 cycles.
- Sealing options: None, IP68, or IP69K for front panel components.
- Operating temperature: -40°C to +85°C.
- Panel thickness: 0.8 mm to 4.6 mm, recommended 2 mm to 3.5 mm.
- Contact materials: Brass, silver or gold plated.
- Terminals: Screw, solder lug, or quick-connect, compatible with various connectors.
- Water and dust resistance: Optional sealing with ultrasonic welding, IP68/IP69K standards.
- Physical dimensions: Suitable for panel cut-outs approximately 25 mm x 40 mm, with mounting depths variable depending on terminal configuration.
- Materials: PA 6-6 case, ABS actuator, brass contacts, nickel-plated contact rollers.
- Electrical insulation resistance: ≥1,000 MΩ at 500 VDC.
- Dielectric strength: ≥2,000 Vrms.
- Environmental resistance: Salt spray for 96 hrs, UV resistant.
- Symbols: Laser etched, water and petrol resistant, UV resistant.
Buy the Industrial Series Locking Power Rocker Switch: KL310
Order the KL310 locking power rocker switch online today for dependable switching in demanding environments. Features rugged materials, optional IP69K sealing, and high current ratings for industrial and vehicle applications. Easy to install on panels between 1.10 mm and 5 mm thick with secure locking positions. Enjoy quick shipping, competitive prices, and the assurance of high durability, salt spray resistance, and excellent electrical performance. Perfect for harsh industrial, automotive, and construction settings—click now to upgrade your control systems efficiently.
Buy KL310 locking power rocker switch now and experience unmatched reliability and performance in harsh industrial and vehicle environments.
Frequently Asked Questions
Where can I buy Apem KL310AKDA226N0102?
You can click on the BUY or RFQ button to purchase KL310AKDA226N0102 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part KL310AKDA226N0102?
You can download the KL310AKDA226N0102 datasheet or visit the Apem website for support.
Who is the manufacturer of KL310AKDA226N0102?
Apem
