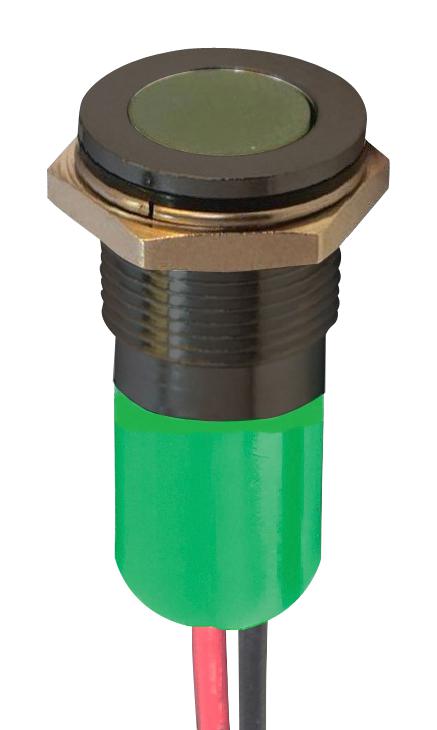

Apem Q8F7BXXG02E LED Indicator
The Q8 series panel mount LED indicators feature 8 mm size with options including prominent and recessed bezel styles, water-clear or diffused epoxy lenses, and high-brightness LEDs. They offer diverse mounting options such as solder lug, faston terminals, pins, or long wire terminations, and suit various sealing environments with IP67 sealing. Operating voltage ranges from 1.8V to 110VAC/DC, with a life expectancy of 100,000 hours. Constructed with plated brass bezels and polycarbonate or stainless steel bodies, these indicators are designed for durability and visibility in industrial applications.
Apem Q8F7BXXG02E LED Indicator Specifications:
- Size: 8 mm diameter
- Lens types: Diffused epoxy or water clear
- LED Brightness: Super Bright and Hyper Bright options
- Operating Voltage: 1.8 V to 110 VDC/AC (varied models)
- Viewing Angle: 30-100° (dependant on model)
- Life Expectancy: 100,000 hours
- Sealing: IP67 sealing option available
- Materials: Plated brass bezel finished in chrome, black, satin grey, or stainless steel; polycarbonate or epoxy rear body
- Mounting: Panel mount with solder lug, faston, pins, or wire terminations
- Maximum Panel Thickness: 7 mm
- Operating & Storage Temperature: -30°C to +85°C depending on body
- Max Reverse Voltage: 5 V
Buy the APEM Series Q8 LED Indicator: Q8F7BXXG02E
Enhance your control panel with the Q8 series LED indicators featuring 8 mm size, high brightness LEDs, durable materials, and IP67 sealing for varied industrial applications. Available with different bezel styles, mounting options, and lens types, these indicators provide clear, reliable status indication. Operating from 1.8V to 110VDC or AC, they ensure long-lasting performance with a life expectancy of 100,000 hours. Easy to install with solder lug, faston, or pin terminations, perfect for demanding environments.
Buy Q8 series LED indicators now and experience reliable, bright visual signals suitable for industrial environments.
