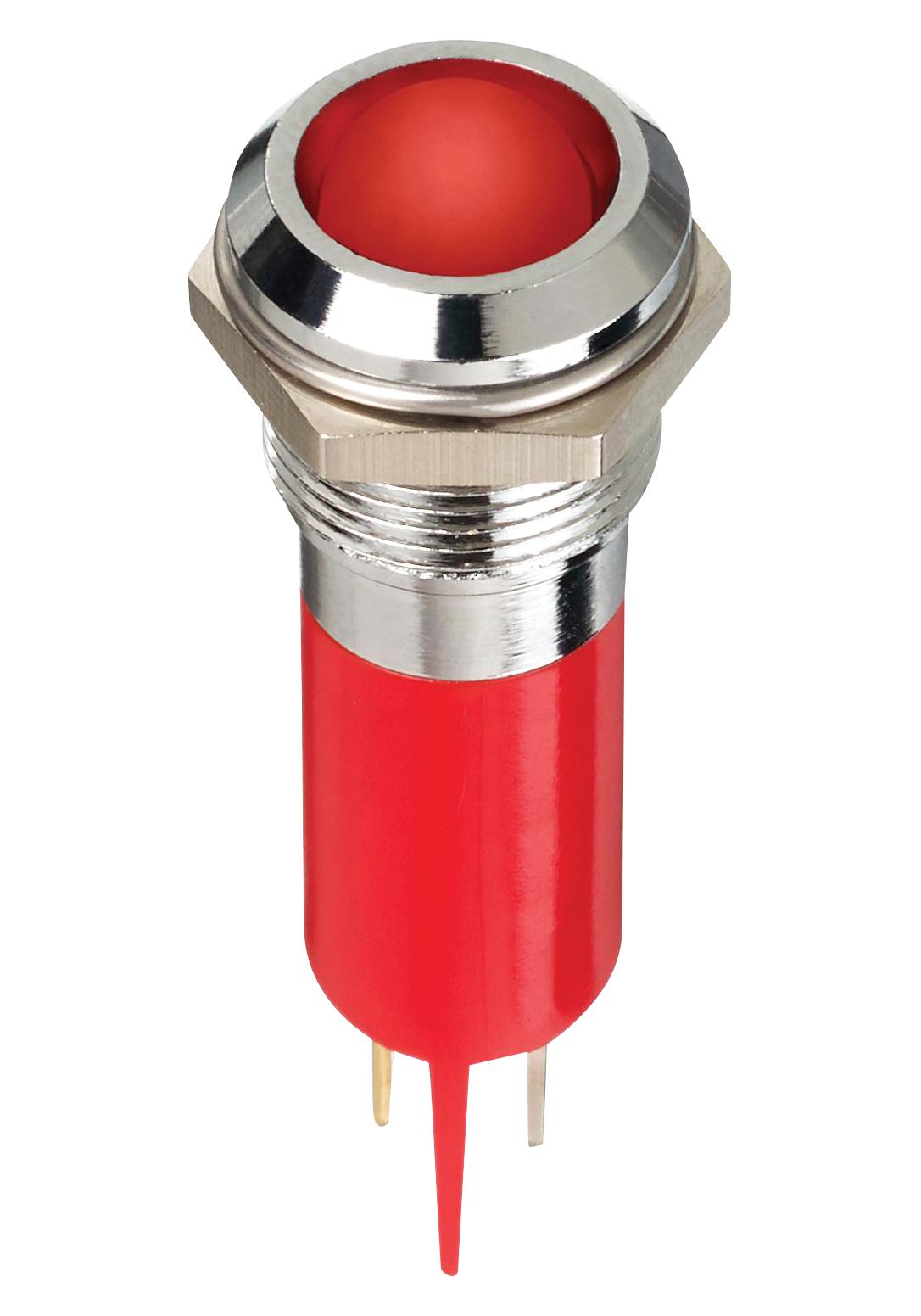

Apem Q12P1CXXHR12E LED Indicator
The Q12P1CXXHR12E LED indicator features a 12mm panel mount design with a bright chrome-plated brass bezel and a durable polycarbonate rear body. Suitable for process control, communication systems, transportation, HVAC, and energy management, it operates at 10.8 to 13.2V DC and 20mA current. Equipped with an 8mm diffused epoxy lens or super bright LEDs, it offers luminous intensity of 1200mcd, a lifespan of 100,000 hours, and sealed to IP67 standards. The indicator has a viewing angle of 30° to 100°, and operates in temperatures from -40°C to +85°C, ensuring reliable performance in demanding environments.
Apem Q12P1CXXHR12E LED Indicator Specifications:
- Material: Bright chrome-plated brass bezel, molded polycarbonate rear body
- Lens: 8 mm diffused epoxy or water-clear super bright LEDs
- Operating Voltage: 10.8 to 13.2V DC
- Operating Current: 20mA
- Luminous Intensity: 1200mcd
- Lifespan: Approximately 100,000 hours
- Sealing: IP67 (EN60529)
- Operating & Storage Temperature Range: -40°C to +85°C
- Reverse Voltage Max: 5V
- Forward Voltage: 2V
- Viewing Angle: 30° to 100°
- Terminals: Solder lug or Faston 2.8 x 0.8mm
- Torque: 75 cNm
- Max panel thickness: 7 mm
- Sealed to UL standards
- Environmental resistance: Water and dust resistant
- Application: Industrial control, communication, transportation, HVAC, civil engineering vehicles
Buy the APEM Q12P1CXXHR12E – Reliable LED Indicator for Industrial Applications
Purchase the APEM LED indicator online today and enhance your industrial control panels with a highly durable, IP67 sealed component. This 12mm LED indicator features a bright chrome bezel, super bright LEDs, and a lifespan of 100,000 hours, making it ideal for process control, transportation, HVAC, and energy management systems. Its sealed design and wide temperature range ensure reliable operation under harsh conditions. Easily connect via solder lug or Faston terminals, and enjoy quick, secure online shopping for this high-quality indicator today.
Get APEM Q12P1CXXHR12E today—built for precision, durability, and reliable performance in demanding environments.
Frequently Asked Questions
Where can I buy Apem Q12P1CXXHR12E?
You can click on the BUY or RFQ button to purchase Q12P1CXXHR12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q12P1CXXHR12E?
You can download the Q12P1CXXHR12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q12P1CXXHR12E?
Apem
