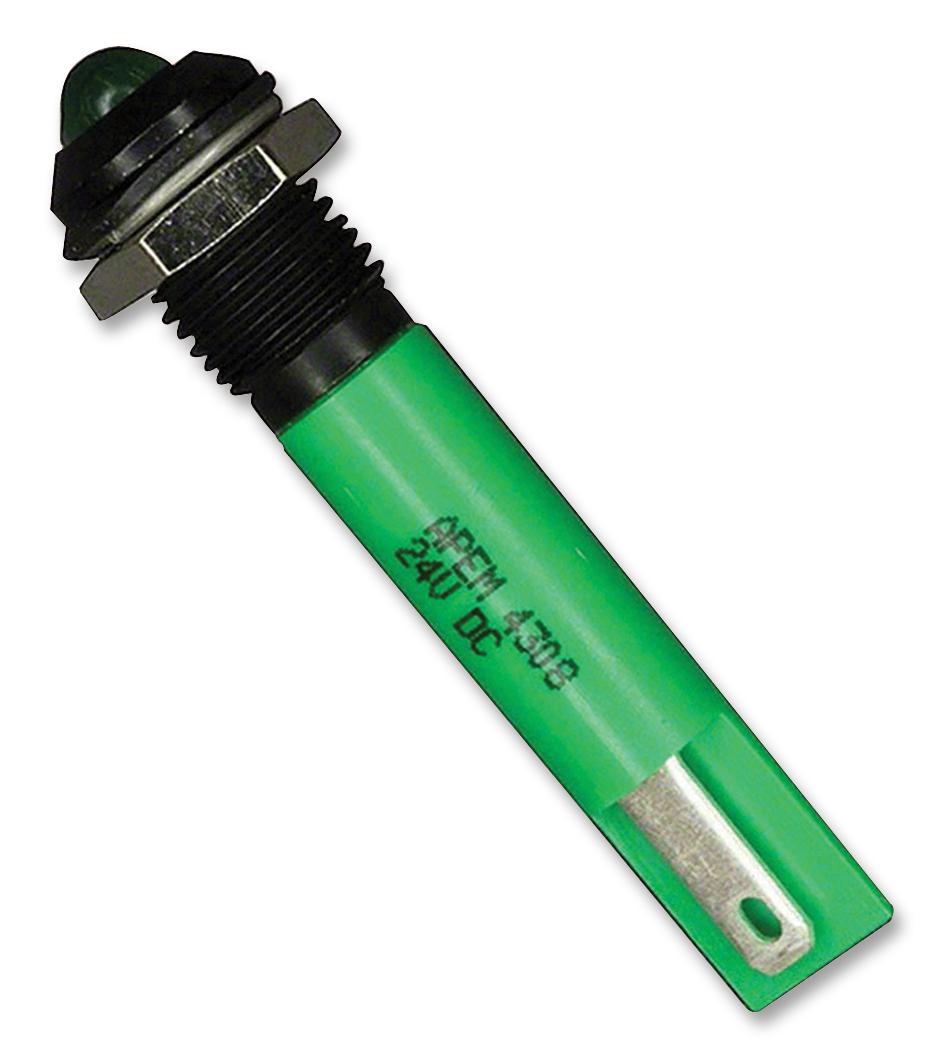

Apem Q8P1BXXG24E LED Indicator
The 8mm panel mount LED indicator features a black bezel with a prominent design, IP67 sealing for durability, and a green LED indicator suitable for 24V operation. It offers a flush or recessed bezel option, plated brass bezel finish in bright chrome, black chrome, or satin grey, and solder lug or faston terminals with 200mm wire termination. Operating voltage ranges from 2VDC to 220VAC with a life expectancy of 100,000 hours, making it ideal for industrial and automation applications requiring reliable visual alerts with IP67 protection and adjustable mounting options.
Apem Q8P1BXXG24E LED Indicator Specifications:
- Panel mount size: 8mm
- Bezel options: Prominent, recessed, flush
- Bezel finish: Bright chrome, black chrome, satin grey
- Material: Plated brass
- Sealing: IP67
- Terminals: Solder lug, faston, pins, or 200mm wire
- Voltage range: 2VDC to 220VAC
- Operating voltage: 24VDC
- Life expectancy: 100,000 hours
- Operating temperature: -40°C to +85°C
- Max reverse voltage: 5V
- Viewing angle: 30-100°
- Forward voltage: 2.2V for green LED
- Luminous intensity: 21,600mcd at 20mA
- Certifications: UL Recognized
Buy the Buy APEM Green LED Indicator Part Number Q8P1BXXG24E Online
Order the APEM LED indicator Q8P1BXXG24E online today for reliable, durable, and IP67 waterproof visual alerts. Designed with a prominent black bezel and green indicator, it operates at 24V DC and features a sealed construction suitable for harsh environments. The indicator offers multiple mounting styles, including prominent, recessed, and flush bezels, with various terminal options such as solder lug, faston, pins, or long wire leads. With a long 100,000-hour lifespan and UL recognition, it ensures reliable performance in industrial automation and control panels.
Get APEM Q8P1BXXG24E today—built for precision, durability, and IP67 sealed protection for industrial applications.
Frequently Asked Questions
Where can I buy Apem Q8P1BXXG24E?
You can click on the BUY or RFQ button to purchase Q8P1BXXG24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q8P1BXXG24E?
You can download the Q8P1BXXG24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q8P1BXXG24E?
Apem
