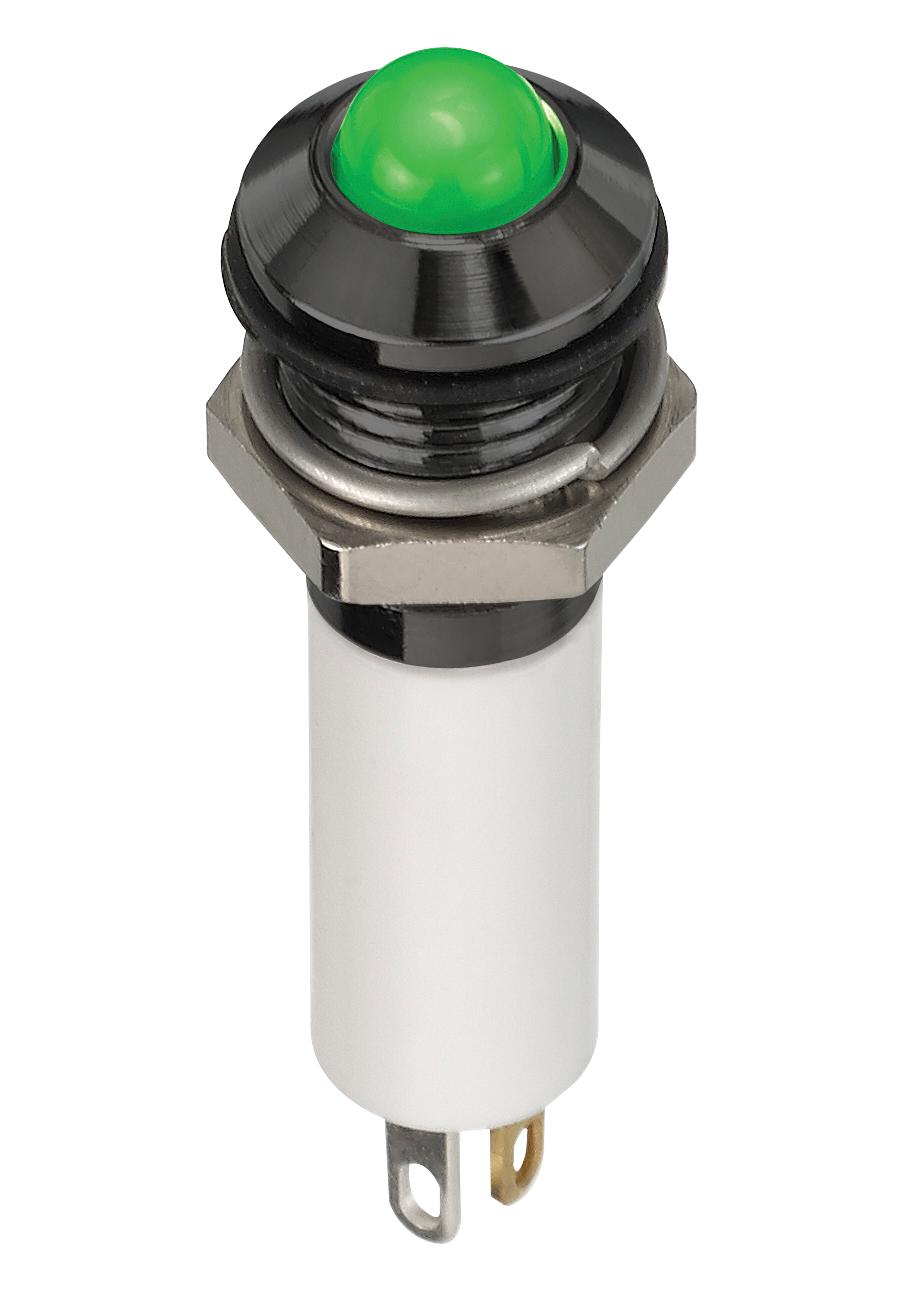

Apem Q8P1BZZRYG12E LED Indicator
This 8mm panel mount LED indicator features a prominent bezel with tri-color illumination in red, green, and yellow, offering IP67 sealing for robust durability. Suitable for industrial or control panels, it operates in various voltages including 12V systems. The bezel is available in black chrome finish, designed for recessed or prominent styles, with options for solder lug, faston terminals, pins, or wire terminations. Its long life expectancy of 100,000 hours and wide operating temperature range from -40°C to +85°C make it ideal for demanding applications. The indicators include features like reverse voltage max of 5V, viewing angles between 30-100°, and versatile connection options for reliable performance.
Apem Q8P1BZZRYG12E LED Indicator Specifications:
- Diameter: 8mm
- Bezel Styles: Prominent, Recessed
- Bezel Finish: Black chrome
- LED Colors: Red, Green, Yellow, Tri-color
- Operating Voltage: 2VDC to 220VAC (specific for each model)
- Max Reverse Voltage: 5V
- Viewing Angle: 30-100°
- Life Expectancy: 100,000 hours
- Operating Temperature Range: -40°C to +85°C
- Sealing: IP67 (EN60529)
- Terminals: Solder lug, faston, pins, wire (200mm long)
- Panel Cutout: Max 7mm thickness, 28x08mm hole
- Mounting: Panel Mount
- Operation: Bi-color, Tri-color options
- Certifications: UL Recognized
Buy the Apem Q8P1BZZRYG12E – Reliable Tri-Color LED Indicator for Industrial Applications
Purchase the Apem LED Indicator now and enhance your industrial control panels with its durable IP67 sealing, versatile multi-color LEDs, and long-lasting performance. This 8mm panel mount indicator is designed for demanding environments, offering a broad operating voltage range and multiple terminal connections for easy installation. Its prominent bezel style ensures visibility, while the tri-color illumination provides versatile signaling options. Equip your machinery or control systems with this reliable, high-quality indicator and ensure safety and operational efficiency in every application.
Buy Apem Q8P1BZZRYG12E now and experience unmatched reliability and performance with versatile connection options and IP67 durability.
Frequently Asked Questions
Where can I buy Apem Q8P1BZZRYG12E?
You can click on the BUY or RFQ button to purchase Q8P1BZZRYG12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q8P1BZZRYG12E?
You can download the Q8P1BZZRYG12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q8P1BZZRYG12E?
Apem
