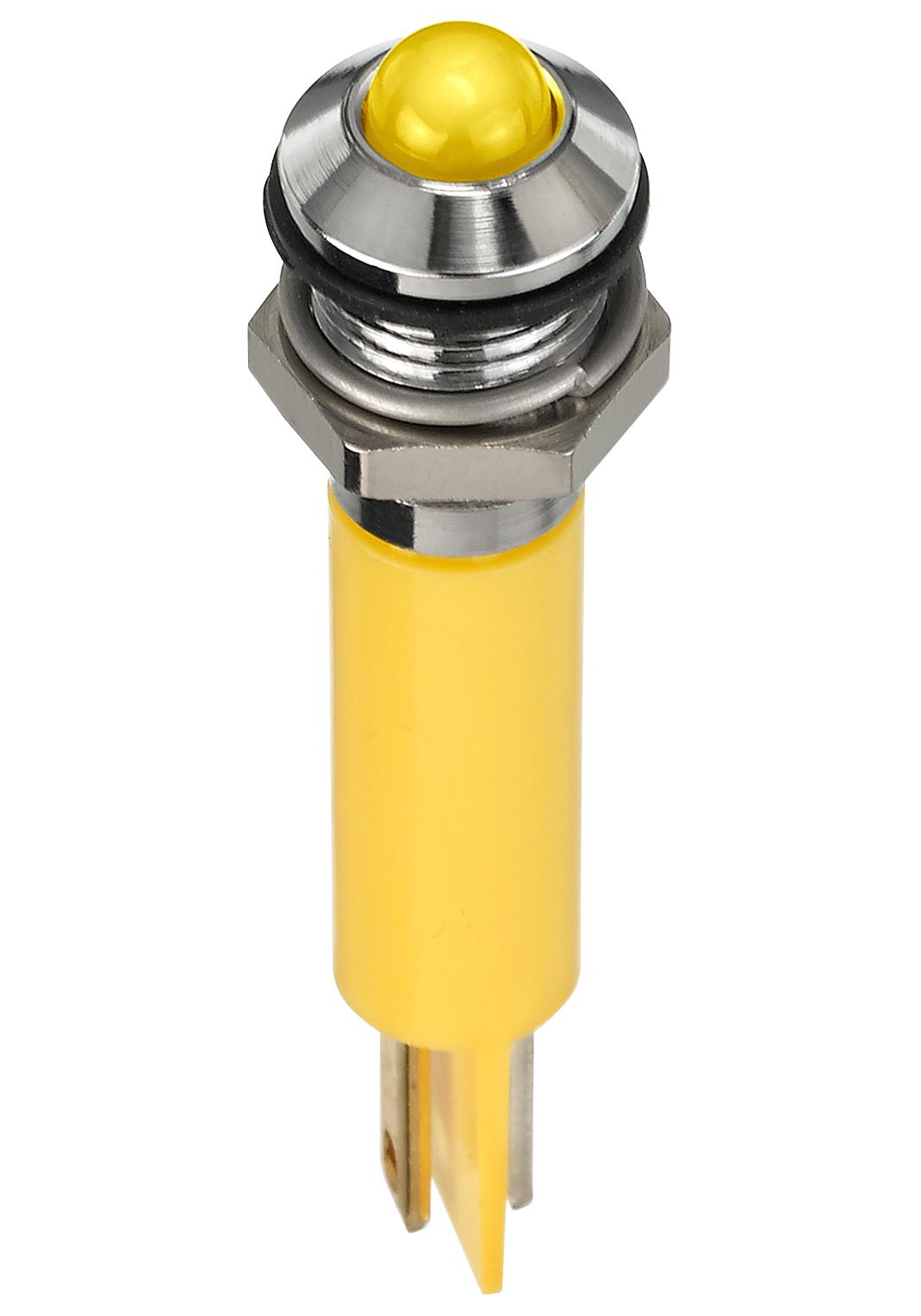

Apem Q8P1CXXHY220E LED Indicator
The Q Series 8mm panel mount LED indicators are versatile, durable, and suitable for electronic and industrial applications. Featuring prominent or recessed bezel styles, they come with various LED color options including red, green, yellow, blue, white, and orange, with super and hyper-bright variants for enhanced visibility. They operate across a wide voltage range from 2VDC to 220VAC, with IP67 sealing for outdoor protection. The indicators boast a lifespan of up to 100,000 hours, with multiple terminal options such as solder lug, faston, pins, or wire terminations. Designed for easy mounting with a 7mm panel thickness limit. Safety and performance are ensured with UL recognition and adaptable sealing options.
Apem Q8P1CXXHY220E LED Indicator Specifications:
- Diameter: 8mm
- Bezel: Prominent or recessed flush styles, plated brass with bright chrome, black chrome, or satin grey finish
- LED Colors: Red, Green, Yellow, Blue, White, Orange, with super and hyper-bright variants
- Operating Voltage Range: 2VDC to 220VAC
- Voltage Options: 2VDC, 6VDC, 12VDC, 24VDC, 28VDC, 110VAC, 220VAC
- Current: 20mA (typical all types)
- Max Reverse Voltage: 5V
- Viewing Angle: 30-100°
- Lifespan: 100,000 hours
- Operating Temperature: -40°C to +85°C
- Sealing: IP67 (EN60529)
- Panel Cutout: Max 7mm, threaded 0.75
- Terminals: Solder lug, faston, pins, wire (200mm)
- Forward Voltage: Red 2.0V, Green 2.2V, Yellow 2.1V, Blue 3.3V, White 3.3V, Orange 2.2V
- Additional options include bi-color and tri-color LEDs, with polarity reversing for color change
Buy the APEM Series Q8 LED Indicator: Q8P1CXXHY220E
Purchase your APEM Series Q8 LED Indicator online today to ensure superior visibility and durability in your industrial or electronic projects. With a robust IP67 sealing, a wide voltage range from 2VDC to 220VAC, and various color options including super and hyper-bright LEDs, this 8mm panel mount indicator is designed for long-lasting performance. Easy to install with multiple terminal choices like solder lug, faston, or wires, it provides excellent reliability and brightness even in challenging environments. Get yours now and boost your equipment’s efficiency with high-quality illumination.
Order your APEM Series Q8 LED Indicator today and enhance your control panels with reliable, bright, and durable illumination solutions.
