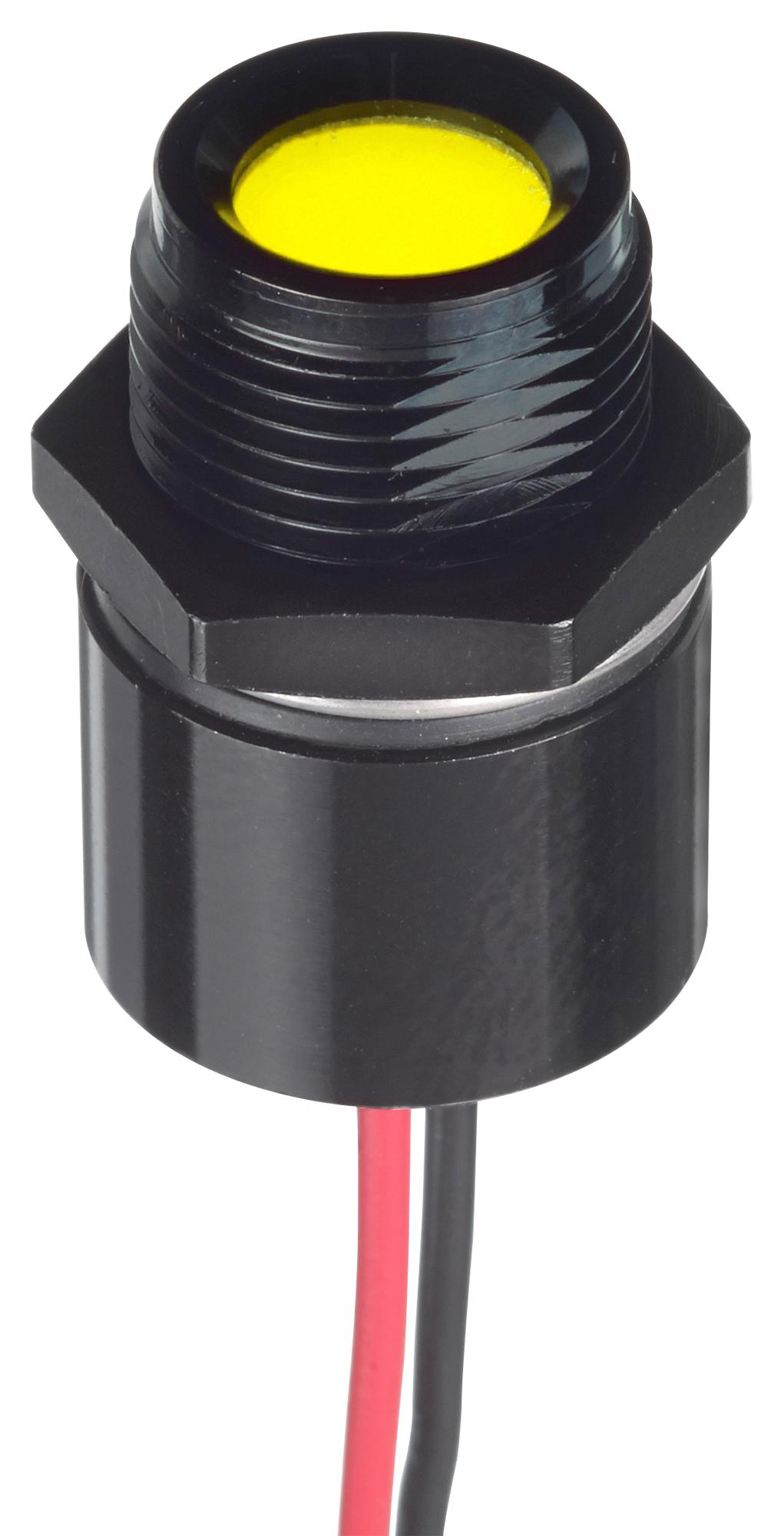

Apem QRM145BXXHY02E Panel Mount LED Indicator
The QRM14 series rear panel mount LED indicators feature a 14mm flush diffused lens with options for bi-color and tri-color LEDs in hyper bright, super bright, and water clear variants. Designed for industrial panel applications, these LEDs operate on 2VDC to 28VAC/DC, with a 200mm wire length, IP67 sealing, epoxy sealed rear end, and durable materials including black chrome plated brass and steel components. Suitable for a variety of voltage and color options, they provide high luminous intensity, long life expectancy, and robust sealing for demanding environments.
Apem QRM145BXXHY02E Panel Mount LED Indicator Specifications:
- Diameter: 14mm
- Lens Type: Flush diffused
- Colors: Red, Green, Yellow, Blue, White, Orange, Bi-color and Tri-color options
- Voltage Range: 2VDC to 28VAC/DC
- Current: 20mA max
- Viewing Angle: 60°
- Life Expectancy: 100,000 hours
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -55°C to +100°C
- Sealing: IP67, epoxy sealed rear end
- Material: Black chrome plated brass and steel
- Wiring: 200mm UL1061, 22AWG
- Panel Thickness: Max 10mm
- Torque: 75cNm
- Reverse Voltage Max: 5V
- Forward Voltage: Red 2.0V, Green 2.2V, Yellow 2.1V, Blue 3.3V, White 3.3V, Orange 2.0V
- Brightness: Hyper Bright, Super Bright options available
- Colors can be combined for bi-color or tri-color effects
- Locking and sealing features include fixing nuts, spring washers, and nitrile O-rings
Buy the Buy APEM QRM14 Series Rear Panel Mount LED Indicators Part Number QRM145BXXHY02E Online
Purchase the APEM Panel Mount LED Indicator series online today. Designed for industrial control panels, these LEDs provide high brightness, extensive color options, and IP67 sealing for demanding environments. Easy to install with 200mm wires, they offer long life expectancy of 100,000 hours and operate reliably from 2VDC to 28VAC/DC. Whether for status indication or visual signaling, these LEDs deliver consistent performance, durability, and easy integration into any control or automation system, making them the ideal choice for professionals seeking quality illumination components.
Buy APEM QRM14 series LED indicators now and experience unmatched reliability and performance with IP67 sealed, durable industrial lighting solutions.
