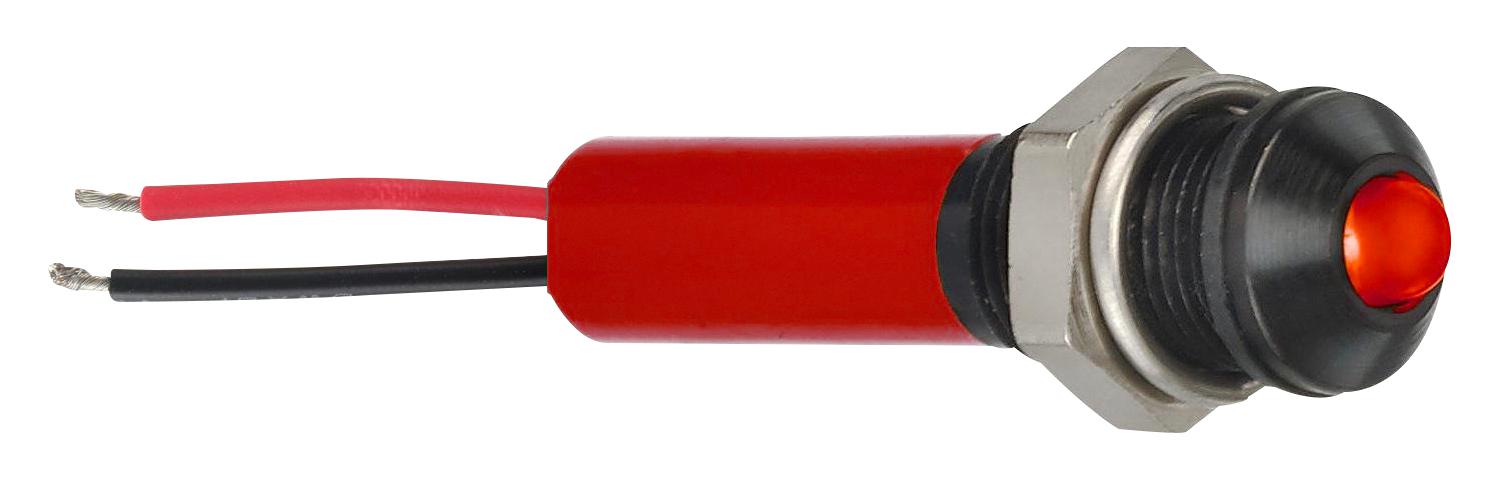

Apem Q8P3BXXR24E LED Indicator
The Q8 series panel mount LED indicators are highly reliable and bright, featuring 5mm diffused epoxy lenses or water-clear LEDs. They come with prominent or recessed flush bezels, suitable for industrial applications, with various terminal and mounting options, including solder lug, fastons, pins, or wires for flexible installation. These indicators operate in temperatures from -30°C to +85°C depending on the body material, with a maximum reverse voltage of 5V and a lifespan of 100,000 hours. They are sealed to IP67 for harsh environments and available in multiple colors with high luminous intensity options.
Apem Q8P3BXXR24E LED Indicator Specifications:
- Lens Diameter: 5mm diffused epoxy or water-clear LEDs
- Bezel Material: Plated brass finished in bright chrome, black, satin grey, or stainless steel 316L (flush version only)
- Max Panel Thickness: 7 mm
- Operating Temperature Range: -30°C to +85°C (rear epoxy), -30°C to +65°C (plastic body)
- Reverse Voltage: Max 5 V
- Viewing Angle: 30° to 100° depending on model
- Lifespan: 100,000 hours
- Operating & Storage Temperature: -30°C to +85°C depending on body material
- Electrical: Forward Voltage varies by color, typical operating current 20mA, operating voltage from 1.8 V to 33 VDC
- Sealing: IP67 (optional)
- Terminals: Solder lug, fastons, pins or wire terminations (200 mm)
- Colors Available: Red, Green, Yellow, Blue, White, Orange, multi-color (tricolor, bi-color)
- Luminous Intensity: Up to 110,000 mcd (super bright), up to 5000 mcd (bright)
- Mounting: 8mm panel hole, suitable for industrial panels
- Certifications: UL, CSA (dependent on options)
- Additional Features: Recessed or prominent bezel styles, various LED color options with hyperbright and superbright intensity
Buy the Premium LED Indicators – Reliable Q8 Series for Industrial Applications
Enhance your industrial control panels with the reliable Q8 series LED indicators. Featuring IP67 sealing, multiple bezel styles, and various terminal options, these indicators are perfect for harsh environments requiring durability and visibility. Available in many colors with superbright and hyperbright LED intensities, they deliver up to 110,000 mcd brightness. Easy to install with solder lug, fastons, pins, or wires, these indicators ensure your systems are visible and operational even in extreme conditions. Order online now for quick delivery and improved system reliability.
Order your brand new Q8 series LED indicators today and enhance your control panels with dependable, high-brightness LED solutions suitable for harsh environments.
Frequently Asked Questions
Where can I buy Apem Q8P3BXXR24E?
You can click on the BUY or RFQ button to purchase Q8P3BXXR24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q8P3BXXR24E?
You can download the Q8P3BXXR24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q8P3BXXR24E?
Apem
