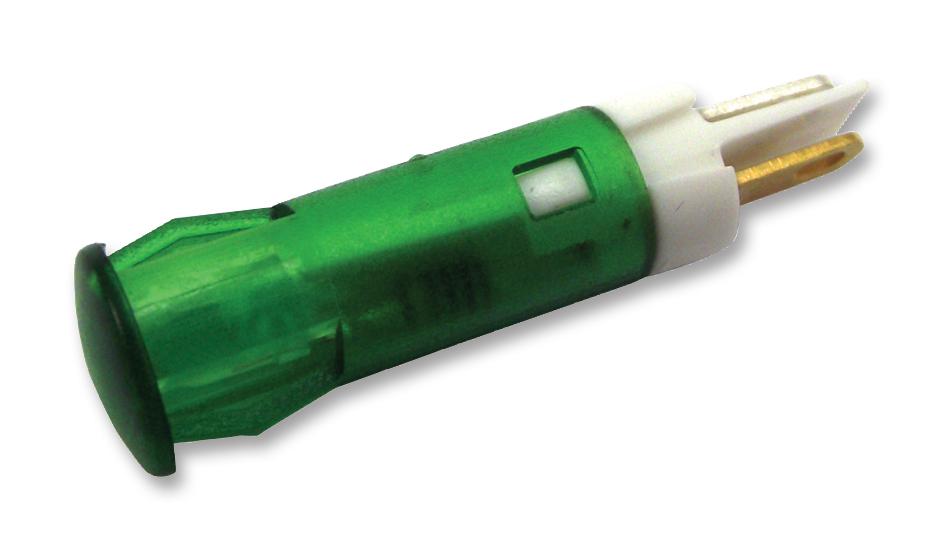

Apem QS61XXG12 LED Indicator
The QS series snap-in panel mount LED indicators are available in 6 mm, 8 mm, 10 mm, and 12 mm sizes, fitting panel thicknesses from 0.8 to 1.6 mm. They feature front panel snap-in mounting requiring no extra hardware, with options for standard or high brightness LEDs suitable for daylight visibility. These indicators operate within -30°C to +65°C, with a lifespan of 100,000 hours, and are made of durable molded polycarbonate. Electrical specifications include operating voltages from 2.1V to 110VAC and current ratings up to 20mA, with various color and illumination options including bi-color and tri-color variants.
Apem QS61XXG12 LED Indicator Specifications:
- Operating Temperature Range: -30°C to +65°C
- Max Reverse Voltage: 5 V
- Life Expectancy: 100,000 hours
- Max Panel Thickness: 0.8 to 1.6 mm
- Material: Moulded polycarbonate
- Panel cut-out sizes: 6 mm, 8 mm, 10 mm, 12 mm
- Electrical Voltage Range: 2.1 to 110 VAC/DC
- Current Rating: 20 mA max
- LED Brightness Options: Standard and high brightness
- Colors: Red, Green, Yellow, Blue, White, Orange, bi-color, tri-color
- Forward Voltage: 2V to 32V depending on LED type and color
Buy the Buy LED Indicators Panel Mount Part Number QS61XXG12 Online
Enhance your control panel visibility with our high-quality LED indicators from the QS series. Designed for quick snap-in installation, these indicators feature multiple sizes, colors, and brightness levels suitable for diverse industrial applications. Operating voltage from 2.1V to 110VAC, with a long lifespan of 100,000 hours, ensures durability and reliability. Ideal for precise status indication, they are available in standard, bi-color, and tri-color options, making installation easy and flexible for various panel thicknesses and environments. Order now for immediate online delivery.
Buy LED Indicators Panel Mount QS61XXG12 now and experience reliable, versatile illumination solutions for your control panels.
Frequently Asked Questions
Where can I buy Apem QS61XXG12?
You can click on the BUY or RFQ button to purchase QS61XXG12 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part QS61XXG12?
You can download the QS61XXG12 datasheet or visit the Apem website for support.
Who is the manufacturer of QS61XXG12?
Apem
