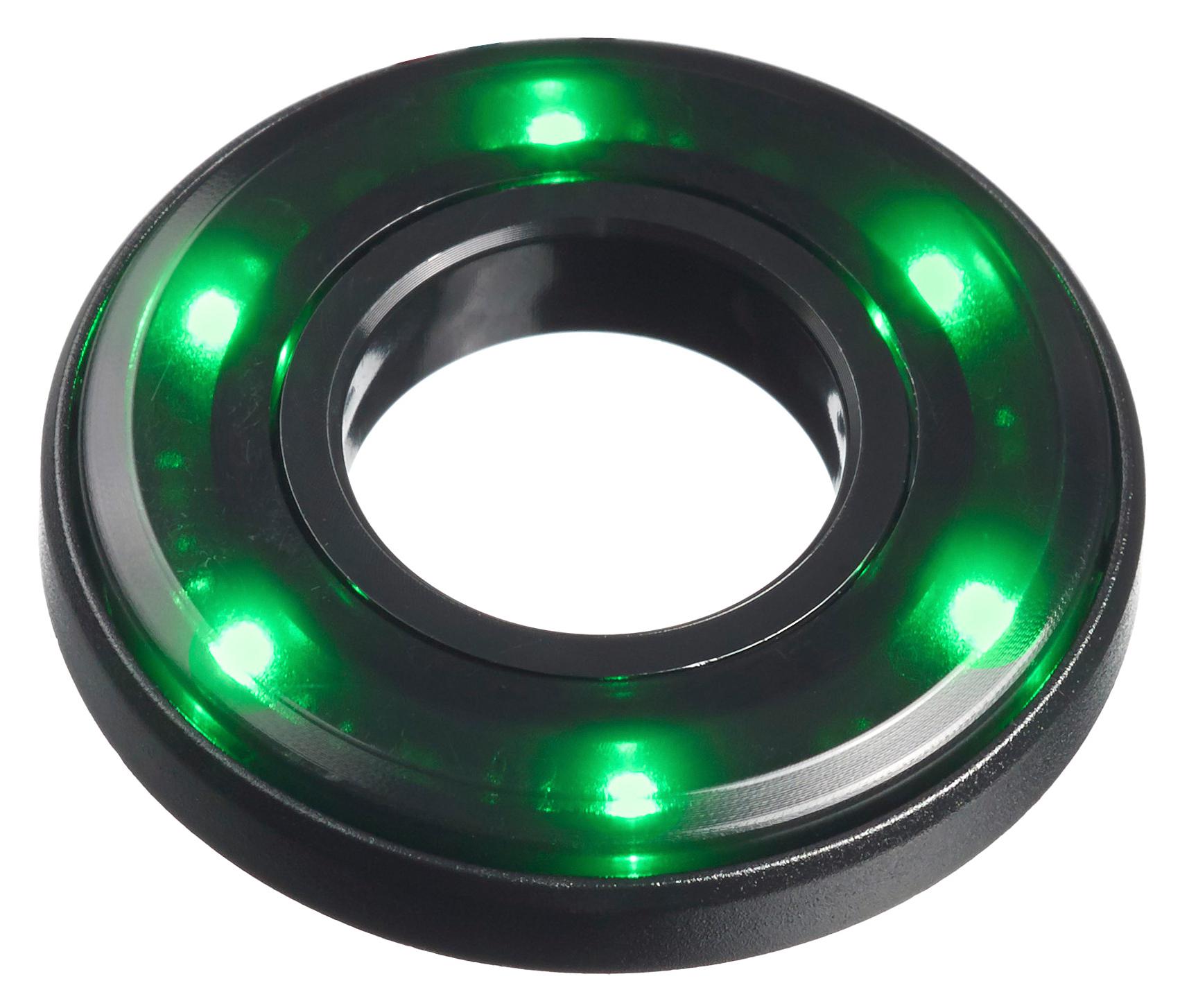

Apem QH16028RGC Halo LED Indicator
The QH series Halo LED illumination offers versatile options with single, dual, and RGB colors, designed for panel integration with sizes of 16 mm, 19 mm, and 22 mm cutouts. It features a panel seal up to IP67, 200 mm UL1061 wire terminations, and durability with a life expectancy of 50,000 hours. Constructed from PC material with a frosted or tinted lens, these LEDs operate from 12 to 24 VDC, providing reliable, high-intensity illumination suitable for industrial, automation, and control applications.
Apem QH16028RGC Halo LED Indicator Specifications:
- Series: QH
- Size: 16mm, 19mm, 22mm cutout variants
- Body Material: PC
- Lens Material: PC
- Panel Seal: IP67 according to EN60529:1992
- Operating Voltage: 12 VDC to 24 VDC
- Operating Current: 12.0 to 26.4 mA
- Max Reverse Voltage: 5 VDC
- Life Expectancy: 50,000 Hours
- Wire Length: 200 mm UL1061, 26 AWG
- Wire Type: Red/Green/Yellow/Blue/White/ RGB with colored wires + and black -
- LED Types: Single, Dual, RGB
- Color Options: Black bezel with Frosted White, Yellow, Green, Blue, White, RGB; Oversized 22 mm version for emergency switches
- Environmental Ratings: IP67, -30°C to +70°C operating temperature
- Electrical Ratings: Max voltage variation ±10%, LED intensity varies with current
- Dimensions: 16 mm, 19 mm, 22 mm diameter; detailed dimensions vary by model
Buy the APEM Series QH Halo LED: QH16028RGC
Upgrade your control panels with the APEM Halo LED Indicator from the QH series. Featuring IP67 sealing and durable PC construction, these LEDs offer reliable operation in demanding environments. Choose from single, dual, or RGB color options, perfect for indicators, emergency stops, and automation systems. Their compact sizes of 16, 19, and 22 mm seamlessly integrate into panel cutouts. With a life expectancy of 50,000 hours and operating voltage from 12 to 24 VDC, enhance your system’s visual communication today by purchasing online for quick, easy setup.
Buy APEM QH16028RGC now and experience unmatched reliability and high-visibility illumination for industrial control panels.
