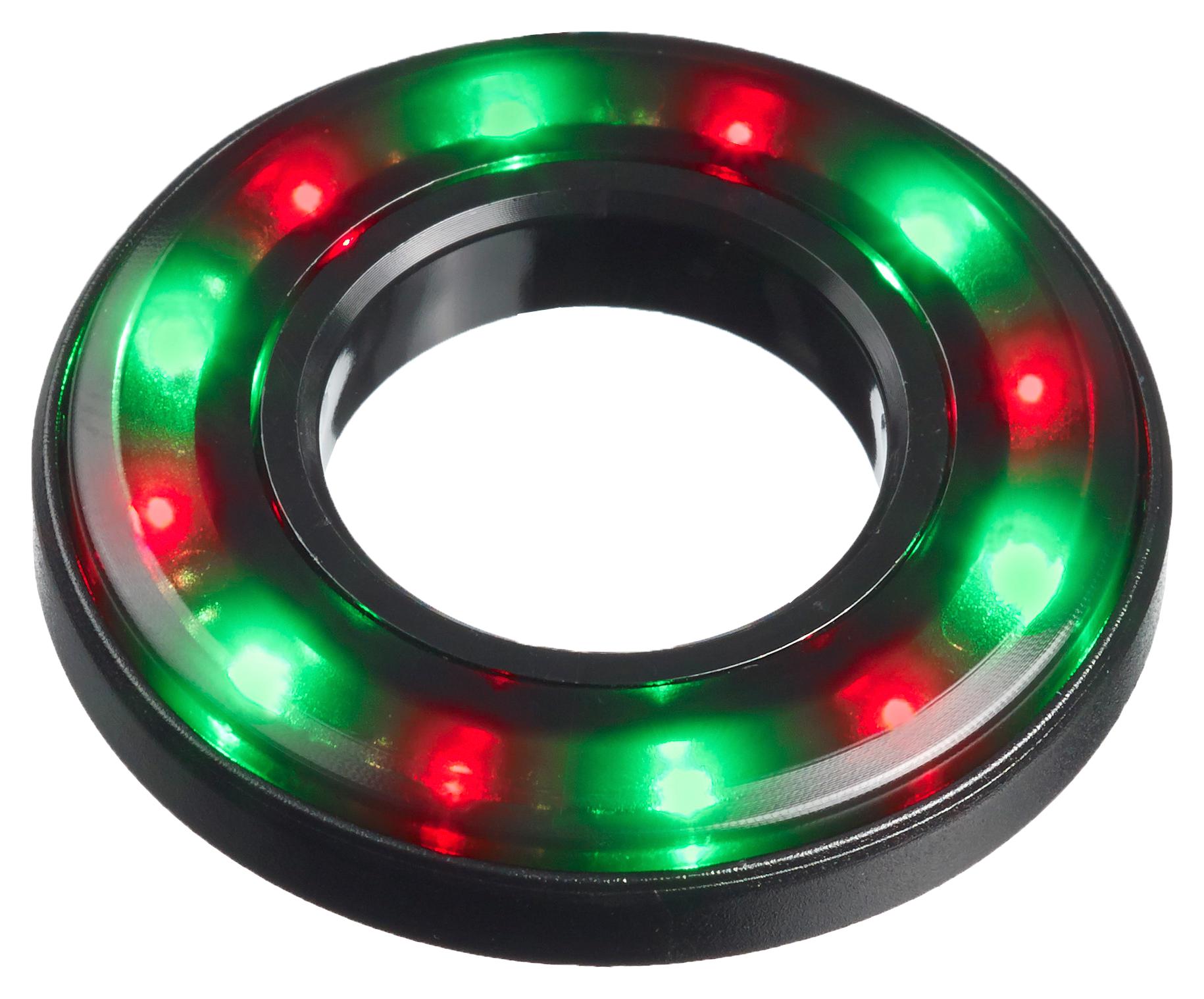

Apem QH19028RGC Halo LED Indicator
The QH series Halo LED illumination offers versatile, panel-mounted lighting solutions with single, dual, and RGB colors, designed for easy integration with various switches and indicators. Featuring an IP67 sealed body, 200 mm UL1061 wire terminations, and high durability with a life expectancy of 50,000 hours, these LEDs are suitable for demanding industrial environments. They operate over a wide voltage range of 12 to 24 VDC, with various lens and bezel options, ensuring bright, reliable illumination for control panels and automation systems.
Apem QH19028RGC Halo LED Indicator Specifications:
- Series: QH16, QH19, QH22, QH22L
- Size: 16mm, 19mm, 22mm, 22mm oversized
- Body Material: PC
- Lens Material: PC
- Panel Seal: IP67 to EN60529 : 1992
- Operating Voltage: 12 VDC to 24 VDC
- Operating Current: 42 mA to 20 mA
- Wire Length: 200 mm, 26 AWG UL1061
- LED Types: Single color, dual color, RGB
- Life Expectancy: 50,000 Hours
- Temperature Range: -30°C to +70°C
- Maximum Reverse Voltage: 5 VDC
- Mounting: Panel cutout options from 16mm to 22mm
- Environmental Resistance: EMC immunity EN61000-4-3, emissions EN61000-6-4, electrostatic discharge EN61000-4-2
- Color Options: Red, Green, Yellow, Blue, White, RGB
Buy the Buy APEM QH Series Halo LED Part Number QH19028RGC Online
Discover the high-performance APEM Halo LED Indicator from the QH series, designed for industrial environments. Available in multiple sizes, colors, and configurations, including single, dual, and RGB options. Features IP67 sealing for water and dust resistance, 200 mm UL1061 wire terminations, and an operational life span of 50,000 hours. Operating on 12 to 24 VDC, these LEDs are easy to install in control panels, emergency stop switches, and automation equipment, ensuring clear visual signals with reliable durability and environmental resistance.
Get APEM QH19028RGC today—engineered for high durability and bright illumination in industrial control panels.
Frequently Asked Questions
Where can I buy Apem QH19028RGC?
You can click on the BUY or RFQ button to purchase QH19028RGC from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part QH19028RGC?
You can download the QH19028RGC datasheet or visit the Apem website for support.
Who is the manufacturer of QH19028RGC?
Apem
