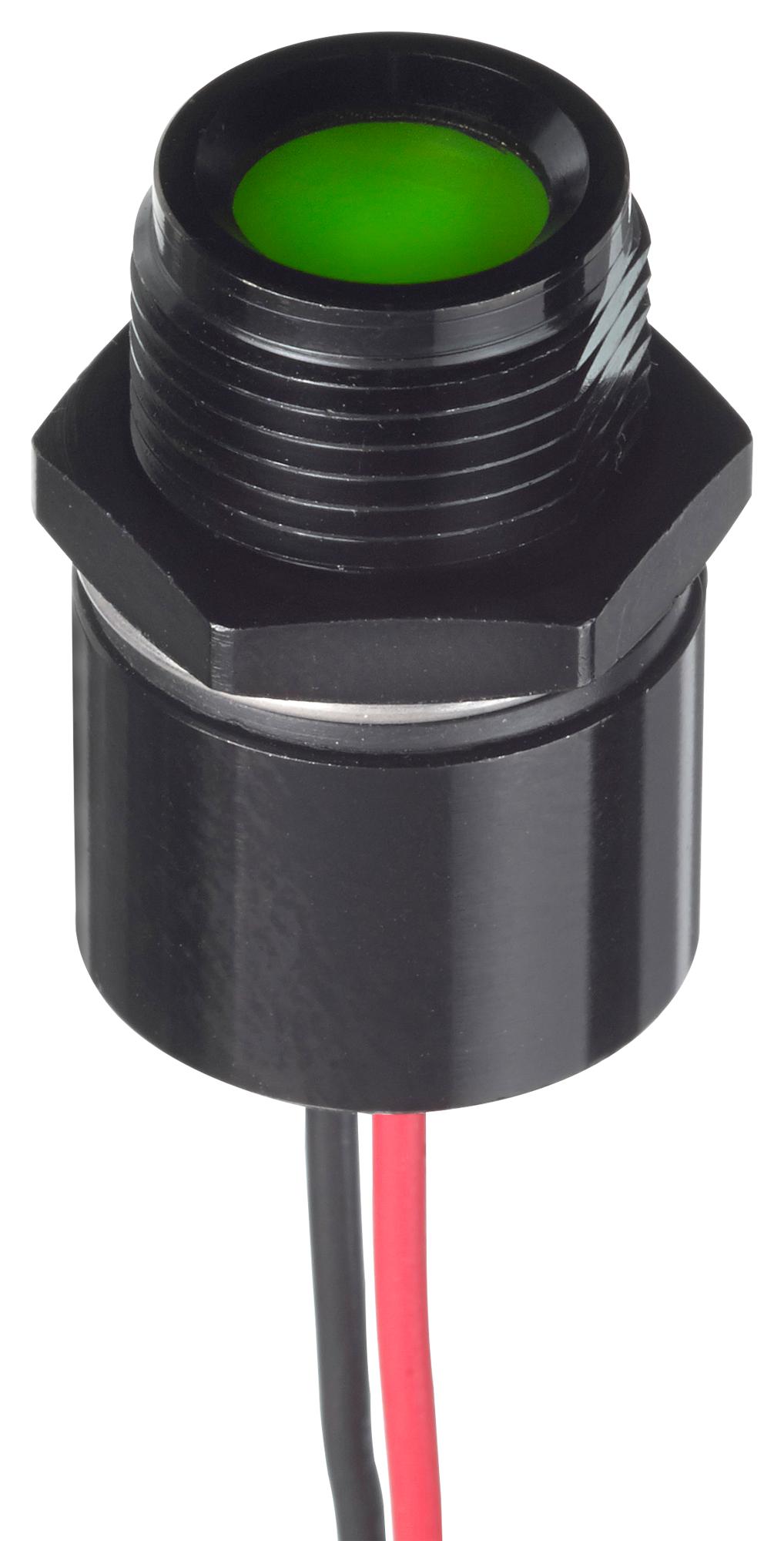

Apem QRM145BXXHG02E Panel Mount LED Indicator
The QRM14 series rear panel mount LED indicators feature 14mm diameter, IP67 sealing, and epoxy sealed rear end for durability. Available in standard, hyper bright, or water clear versions with multiple colors, including bi-color and tri-color options. They operate at voltages from 2VDC to 28VAC/DC with a typical life expectancy of 100,000 hours. Made of black chrome-plated brass with Nitrile O-ring panels, these LEDs provide reliable status indication in industrial environments, with a viewing angle of 60° and robust construction suitable for panel thickness up to 10mm.
Apem QRM145BXXHG02E Panel Mount LED Indicator Specifications:
- Diameter: 14mm
- Sealing: IP67 (EN60529)
- Material: Black chrome plated brass body, Nitrile O-ring, epoxy sealed rear end
- Wire Length: 200mm, 22AWG UL1061
- Operating Voltage: 2VDC to 28VAC/DC (±10%)
- Max Reverse Voltage: 5V
- Operating Current: 20mA
- Viewing Angle: 60°
- Life Expectancy: 100,000 hours
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -55°C to +100°C
- Panel Thickness: Max 10mm
- Torque: 75 cNm
- LED Colors: Red, Green, Yellow, Blue, White, Orange; Bi-color and Tri-color options available
- LED Intensity: Standard, Super Bright, Hyper Bright variants
- Connections: Terminal seal epoxy, fixing nut, spring washer, O-ring included
Buy the APEM Series QRM145BXXHG02E LED Indicator: Panel Mount 14mm
Purchase the APEM Panel Mount LED Indicator QRM145BXXHG02E online today to ensure your industrial systems are equipped with highly reliable, durable, and bright status indicators. Featuring IP67 sealing, wide voltage compatibility from 2VDC to 28VAC/DC, and available in standard, super bright, and hyper bright versions, this indicator provides excellent visibility and long lifespan of 100,000 hours. Easy to install with 200mm wire leads and sealed rear, it’s perfect for industrial control panels, automation systems, and equipment requiring robust lighting solutions.
Order your APEM Series QRM145BXXHG02E LED indicator today and ensure long-lasting, high-performance status indication in your industrial projects.
Frequently Asked Questions
Where can I buy Apem QRM145BXXHG02E?
You can click on the BUY or RFQ button to purchase QRM145BXXHG02E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part QRM145BXXHG02E?
You can download the QRM145BXXHG02E datasheet or visit the Apem website for support.
Who is the manufacturer of QRM145BXXHG02E?
Apem
