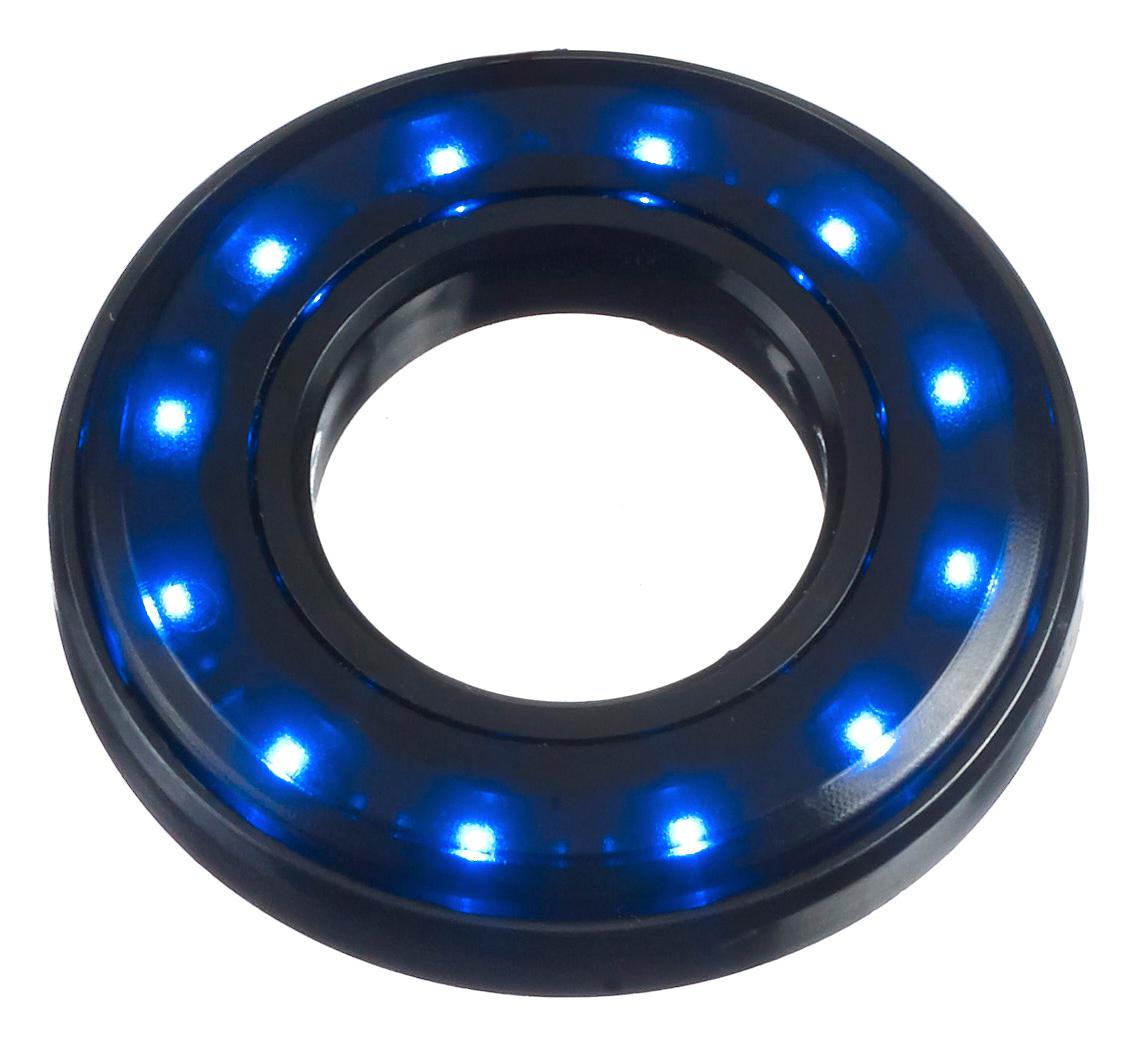

Apem QH22028RGBC LED Indicator
The Halo QH series LED illumination provides efficient, sealed, and versatile indicator solutions with single, dual, and RGB color options. Designed for panel cutouts of 16, 19, and 22 mm, these LED indicators feature internal PCB LEDs, durable PC body and lens, and a sealed IP67 rating suitable for harsh environments. Operating on 12-24 VDC, with a life expectancy of 50,000 hours, they are ideal for industrial control panels and emergency stop switches, offering reliable brightness and fade resistance across various colors and configurations.
Apem QH22028RGBC LED Indicator Specifications:
- Panel Seal: IP67 to EN60529: 1992
- Operating Voltage: 12 VDC to 24 VDC
- Operating Current: 42 mA to 20 mA (depending on color and type)
- LED Life Expectancy: 50,000 Hours
- Dimensions: 16mm, 19mm, 22mm panel cutouts
- Body Material: PC
- Lens Material: PC
- Wire Termination: 200 mm, 26 AWG UL1061
- Environmental Ratings: IP67, Operating Temperature -30°C to +70°C
- Color Options: White, Red, Green, Yellow, Blue, RGB
- Maximum Reverse Voltage: 5 VDC
- EMC Immunity: EN61000-4-3, EN61000-6-4
- Shock & Vibration Resistance: Suitable for industrial environments
Buy the Buy APEM QH Series LED Indicator Part Number QH22028RGBC Online
Order the APEM QH22028RGBC LED indicator now to enhance your control panels with reliable, sealed, and multi-color LED illumination. Designed for harsh environments, these indicators operate on 12-24 VDC with a 50,000-hour lifespan, offering excellent visibility and durability. Featuring IP67 sealing and multiple color options including RGB, they are ideal for emergency stops and instrumentation panels. Easy to install with 200 mm wire terminations, ensure your equipment stays operational with this high-quality, industrial-grade LED indicator available online for quick delivery.
Get APEM QH22028RGBC today—built for durability and precise indicator illumination in demanding industrial settings.
Frequently Asked Questions
Where can I buy Apem QH22028RGBC?
You can click on the BUY or RFQ button to purchase QH22028RGBC from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part QH22028RGBC?
You can download the QH22028RGBC datasheet or visit the Apem website for support.
Who is the manufacturer of QH22028RGBC?
Apem
