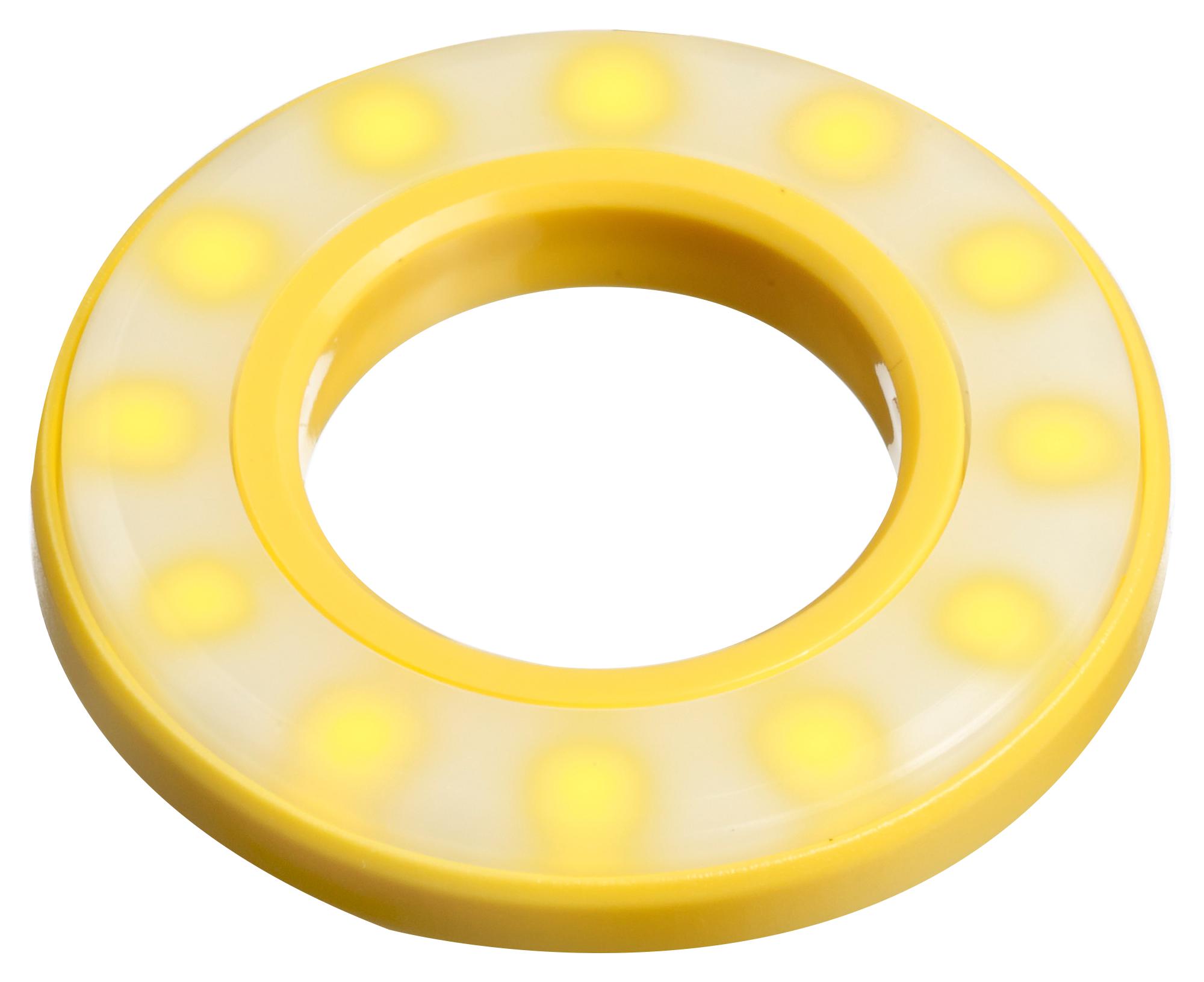

Apem QH22057YC Halo LED Indicator
The QH series Halo LED illuminations are designed for panel integration with 16, 19, and 22 mm cutouts, including an oversized 22 mm version for emergency switches. They feature single, dual, and RGB colors with high durability, sealed to IP67 for protection against dust and water, and have a lifespan of 50,000 hours. Crafted from polycarbonate for the body and lens, they operate within 12-24 VDC, providing reliable illumination with low current draw. These indicator lights are ideal for industrial automation, control panels, and machinery, offering high visibility and environmental resistance.
Apem QH22057YC Halo LED Indicator Specifications:
- Body Material: Polycarbonate
- Lens Material: Polycarbonate
- Panel Cutout Sizes: 16mm, 19mm, 22mm, and 22mm oversized for emergency switches
- Sealing: IP67 according to EN60529
- Operating Voltage: 12-24 VDC (min to max), typical current 42 mA to 20 mA
- Luminous Intensity: Red 120 med, Green 350 med, Yellow 90 med, Blue 90 med, White 350 med (at 20 mA)
- Color Options: Single, Dual, RGB, Red/Green, Red/Yellow, Blue/White, RGB
- Maximum Reverse Voltage: 5 VDC
- Life Expectancy: 50,000 hours
- Electrical connections: 200 mm, 26 AWG UL1061 wires (colored wire for anode, black for cathode)
Buy the Buy APEM QH22057YC Part Number QH22057YC Online
Order the APEM Halo LED indicator QH22057YC online for reliable, high-visibility illumination in industrial environments. Crafted from durable polycarbonate, it features IP67 sealing for water and dust resistance, with a lifespan of 50,000 hours. Suitable for various panel sizes including 16mm, 19mm, 22mm, and oversized 22mm models for emergency switches. Operates on 12-24 VDC with low current draw, making it efficient and suitable for automation systems, control panels, and machinery requiring robust indicator lighting for harsh conditions.
Get APEM QH22057YC today—built for industrial control panels and harsh environments with high durability and long-lasting LED illumination.
Frequently Asked Questions
Where can I buy Apem QH22057YC?
You can click on the BUY or RFQ button to purchase QH22057YC from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part QH22057YC?
You can download the QH22057YC datasheet or visit the Apem website for support.
Who is the manufacturer of QH22057YC?
Apem
