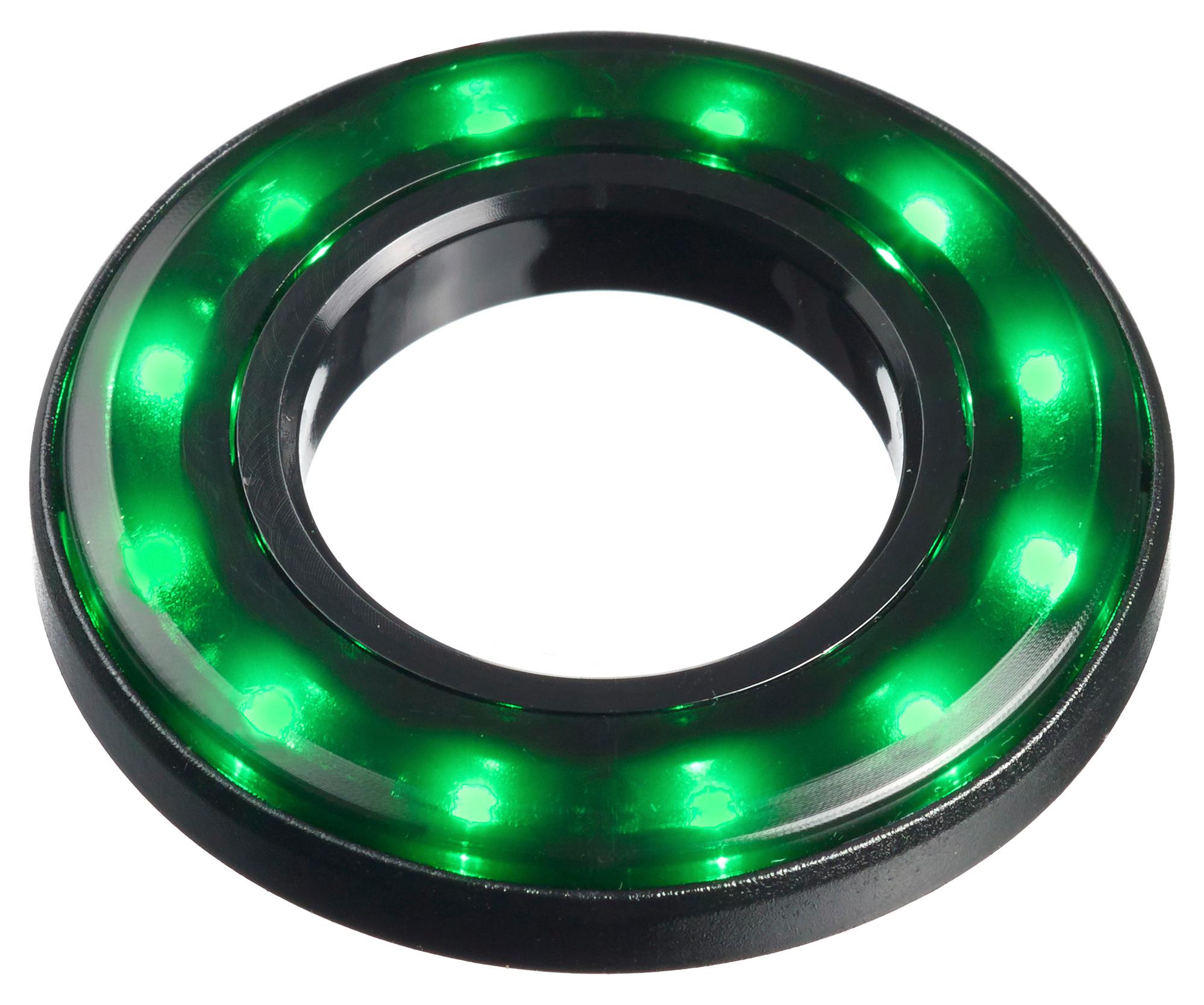

Apem QH22L28GC Halo LED Panel Light
The QH series Halo LED illumination units are designed for panel mounting with IP67 sealing for harsh environments. Available in single, dual, and RGB colors, they feature 12 LED PCB options with high longevity of 50,000 hours. Compatible with 12-24 VDC power supplies, these units have UL1061 26 AWG wire terminations, durable PC bodies and lenses, and come in sizes of 16 mm, 19 mm, and 22 mm with integrated circuit options. Ideal for emergency switches and industrial indicators, they offer reliable multi-color illumination and rugged environmental sealing.
Apem QH22L28GC Halo LED Panel Light Specifications:
- Series: QH
- Size: 22 mm diameter
- Available Colors: Single, Dual, RGB (Red, Green, Blue, White, Yellow, etc.)
- Sealing: IP67 rated for harsh environments
- Wire Termination: 200 mm, 26 AWG UL1061 wire
- Body Material: PC
- Lens Material: PC
- Operating Voltage: 12-24 VDC
- Input Voltage Range: 12.0 to 26.4 VDC
- Operating Current: 42 mA to 20 mA depending on configuration
- Life Expectancy: 50,000 hours
- Environmental Operating Temp: -30°C to +70°C
- Max Reverse Voltage: 5 VDC
- EMC Standards: EN61000-4-3, EN61000-6-4
- Ingress Protection: IP67
- Dimensions: 22 mm diameter, size options include 16 mm and 19 mm
- Construction Materials: Body and lens made of PC, robust for industrial environments
Buy the AMPEM Series QH Halo LED: QH22L28GC
Purchase the AMPEM Series QH22L28GC Halo LED panel light now for reliable, sealed illumination in industrial settings. Designed to withstand harsh environments with IP67 sealing, these LEDs offer long-lasting performance of up to 50,000 hours. Available in multiple colors and sizes, with quick 200 mm wire connections, they are ideal for panel indicators, emergency switches, and automation systems. Easy to install and built from durable PC materials, order online today and enhance your industrial or control panel applications with high-quality, energy-efficient lighting.
Get AMPEM Series QH22L28GC today—built for precision, durability, and versatile industrial illumination solutions.
