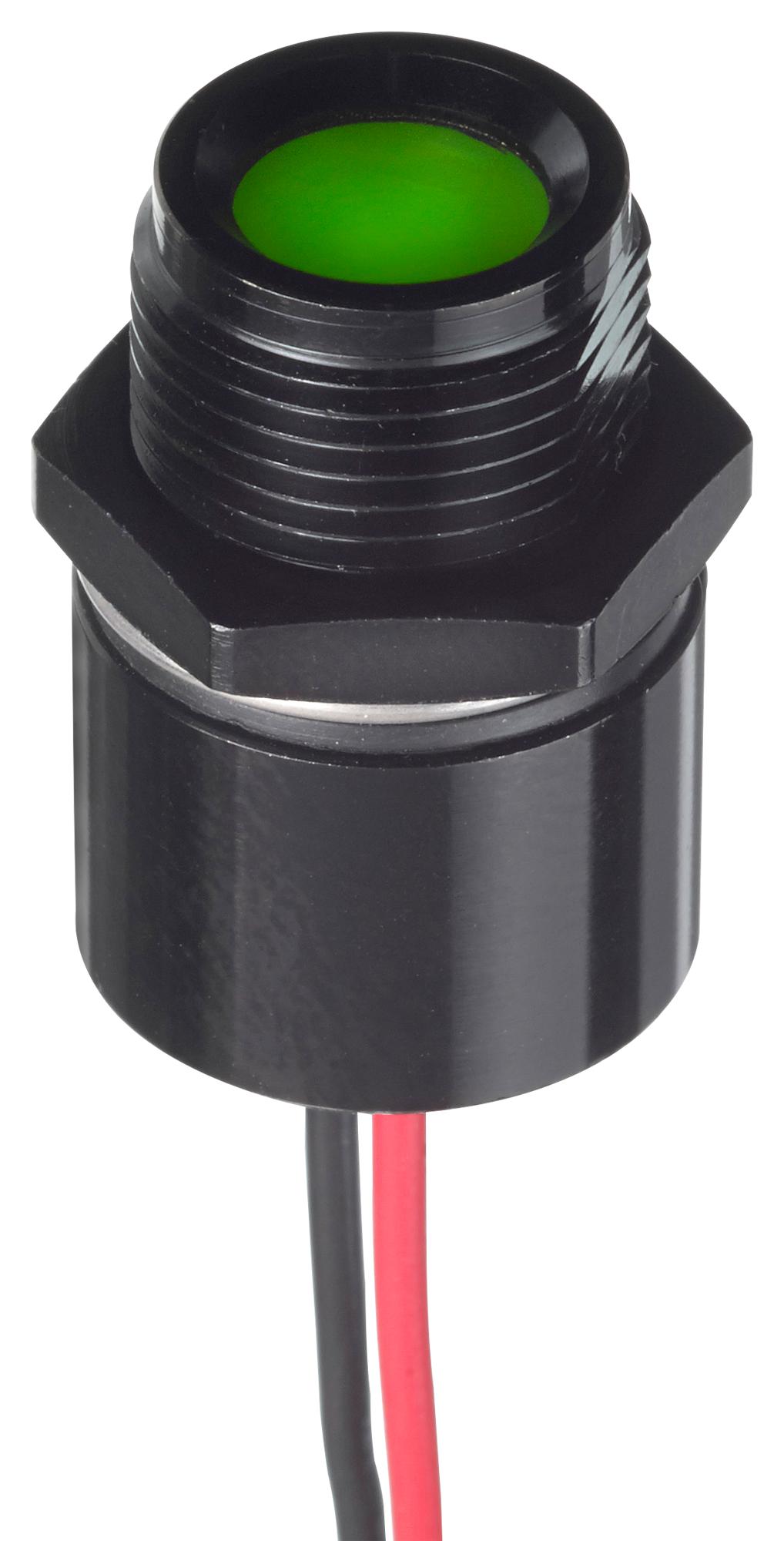

Apem QRM145BXXHG24E LED Indicator
The QRM14 Series rear panel mount LED indicators feature 14mm housing with diffused, hyper bright, or water clear LEDs, including bi-color and tri-color options. They boast IP67 sealing, epoxy sealed rear end, and are constructed with black chrome plated brass bodies. Operating from 2VDC to 28VAC/DC, these LEDs have a viewing angle of 60° and long lifespan of 100,000 hours. Suitable for panel thickness up to 10mm, they are ideal for industrial and signaling applications requiring reliable, sealed indicator lights with various brightness levels.
Apem QRM145BXXHG24E LED Indicator Specifications:
- Housing Diameter: 14mm
- Mounting: Rear panel mount
- Sealing: IP67 (EN60529)
- Body Material: Black chrome plated brass
- Wiring: 200mm wires, 22AWG UL1061
- Operating Voltage Range: 2VDC - 28VAC/DC
- Max Reverse Voltage: 5V
- Viewing Angle: 60°
- Lifespan: 100,000 hours
- Temperature Range: -40°C to +85°C (operating), -55°C to +100°C (storage)
- Max Panel Thickness: 10mm
- Torque: 75 cNm
- LED Colors: Red, Green, Yellow, Blue, White, Orange; Bi-color and Tri-color options
- LED Brightness Levels: Diffused, Hyper Bright, Water Clear
- Materials: Epoxy sealed rear end, nitrile O-ring
Buy the Buy APEM QRM14 Series Rear Panel Mount LED Indicators Part Number QRM145BXXHG24E Online
Purchase the QRM14 Series LED indicator online today to enhance your signaling and control panels with durable, IP67 sealed, 14mm rear mount LEDs. Featuring various brightness options, including hyper bright and water clear LEDs, these indicators provide excellent visibility in challenging environments. Suitable for various voltages from 2VDC to 28VAC/DC, they include bi-color and tri-color options for versatile signaling needs. Easily install with a max panel thickness of 10mm, and enjoy long-lasting performance and reliability for industrial automation, machinery, and control systems.
Buy APEM QRM145BXXHG24E now and experience unmatched reliability and performance with sealed, high-brightness LED indicators suitable for industrial environments.
Frequently Asked Questions
Where can I buy Apem QRM145BXXHG24E?
You can click on the BUY or RFQ button to purchase QRM145BXXHG24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part QRM145BXXHG24E?
You can download the QRM145BXXHG24E datasheet or visit the Apem website for support.
Who is the manufacturer of QRM145BXXHG24E?
Apem
