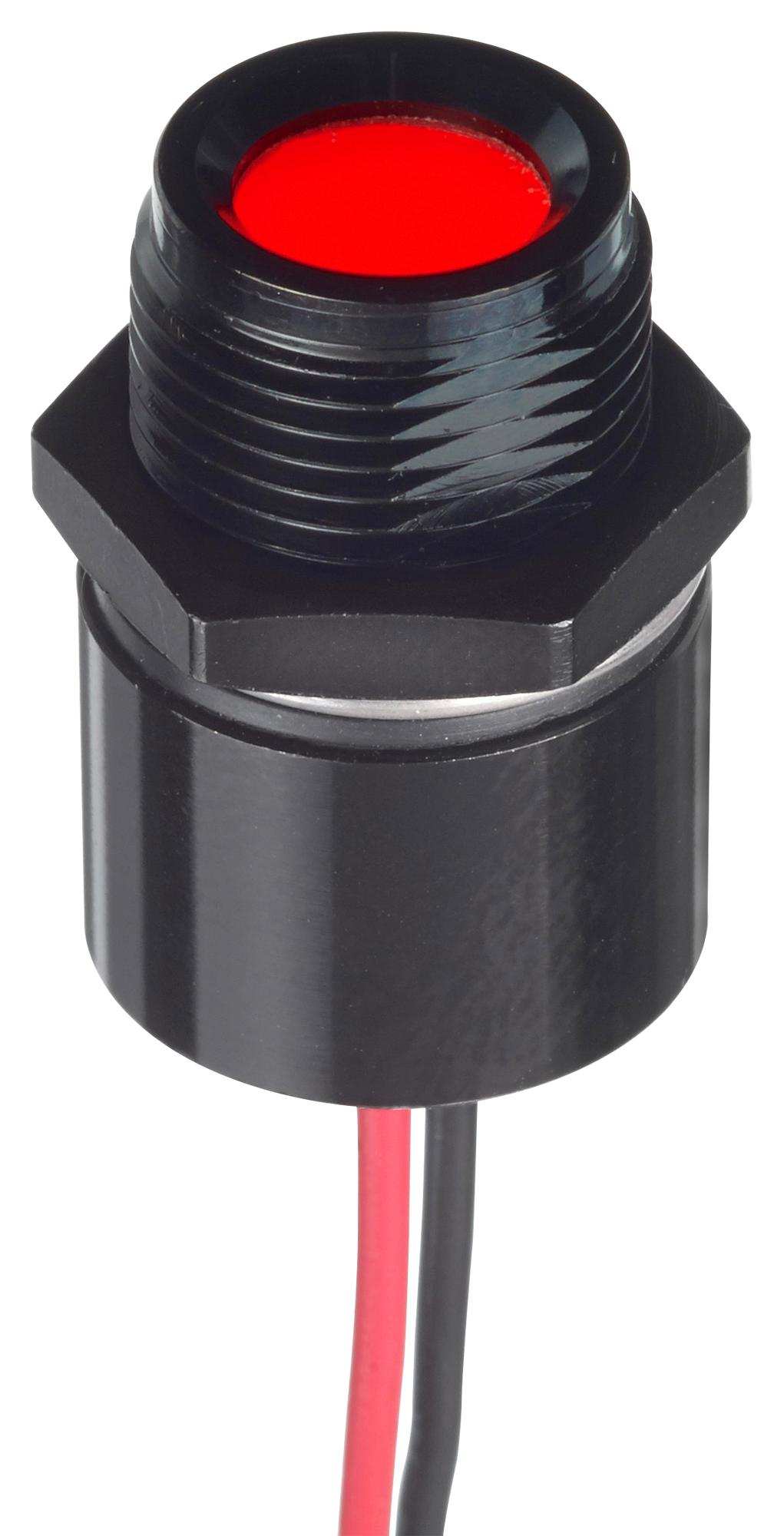

Apem QRM145BXXHR24E LED Indicator
The QRM14 Series rear panel mount LED indicators provide high-brightness, bi-color, and tri-color options in a robust, sealed design suitable for industrial environments. Featuring 14mm diffused LEDs with epoxy sealing, black chrome finish, and IP67 rating, these indicators operate efficiently across voltages from 2VDC to 28VAC/DC. They are ideal for panel monitoring, with high luminous intensity, long life expectancy of 100,000 hours, and various voltage configurations. Easy to install with 200mm wires, suitable for panel thickness up to 10mm, and rated for harsh temperatures from -40°C to +85°C.
Apem QRM145BXXHR24E LED Indicator Specifications:
- Size: 14mm diameter rear panel mount
- LED Options: Diffused, hyper bright, or water clear
- Voltages: 2VDC to 28VAC/DC
- Wires: 200mm long, 22AWG UL1061
- Sealing: IP67 sealed (EN60529), epoxy sealed rear end
- Material: Black chrome plated brass body, spring steel lock washer, nitrile O-ring seal
- Max panel thickness: 10mm
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -55°C to +100°C
- Viewing Angle: 60°
- Life Expectancy: 100,000 hours
- Reverse Voltage: Max 5V
- Torque: 75 cNm
- Certifications: UL Recognized Component
- LED Colors: Red, Green, Yellow, Blue, White, Orange and combinations like Bi-color and Tri-color
- Standard and hyper bright LED intensities provided, with forward voltages from 2.0V to 3.5V.
Buy the APEM Series QRM14 LED: QRM145BXXHR24E
Purchase APEM LED indicators online and ensure reliable panel status signals in demanding environments. The QRM14 Series offers high brightness, robust sealing, and versatile color options, making it perfect for industrial monitoring. Installation is straightforward with 200mm wires and compatibility with panel thickness up to 10mm. Designed for long-term operation, with a life expectancy of 100,000 hours, these indicators are suitable for voltage ranges from 2VDC to 28VAC/DC. Enhance your control panels with APEM’s quality LED indicators now.
Get APEM QRM145BXXHR24E today—built for high-brightness, durability, and industrial reliability.
