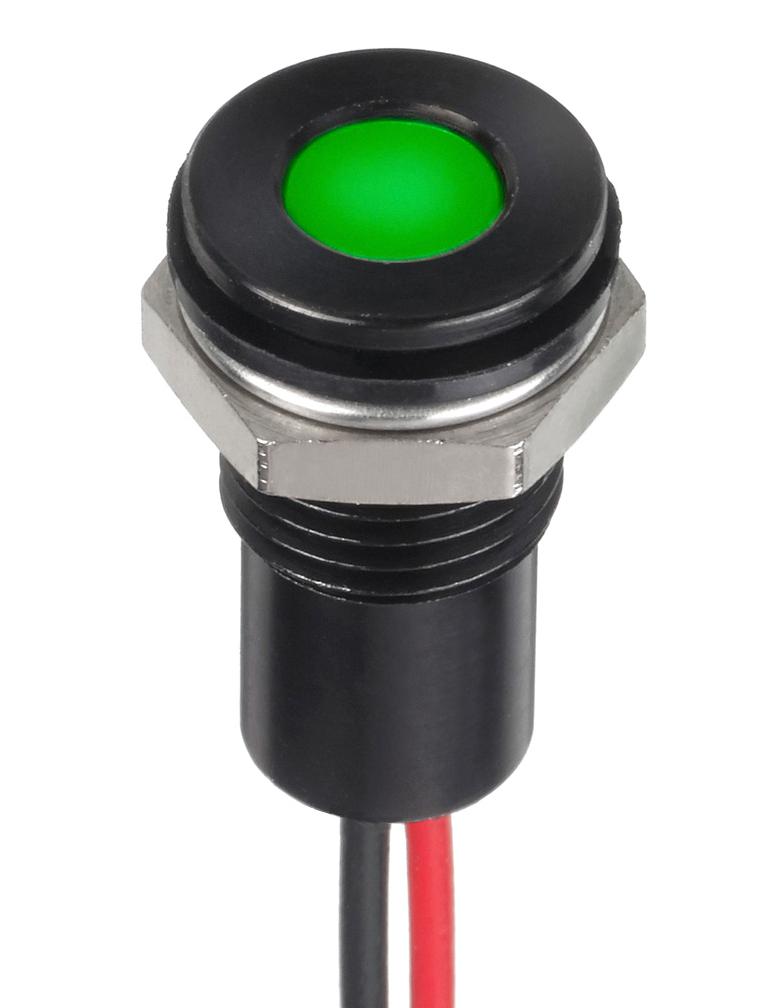

Apem Q8F5BYYHRG02E Panel Mount LED Indicator
The Q8 series panel mount LED indicators are designed for industrial applications, offering high brightness, water resistance, and multiple mounting options. Available in prominent and flush bezel styles, these indicators feature 5mm diffused epoxy lenses or water-clear LEDs, with operating temperatures ranging from -40°C to +85°C depending on body type. They support various terminal types, including solder lug, fastons, pins, or wiring, and can be sealed to IP67. Suitable for panel thickness up to 7 mm, they provide durable, long-lasting illumination for control panels and machinery.
Apem Q8F5BYYHRG02E Panel Mount LED Indicator Specifications:
- LED Diameter: 5 mm
- Lens Type: Diffused epoxy or water-clear
- Bezel Material: Plated brass finished in bright chrome, black, satin grey, or stainless steel 316L (flush version only)
- Sealing: IP67 (optional)
- Operating Temperature Range: -40°C to +85°C (rear epoxy body), -30°C to +65°C (plastic rear body)
- Max Reverse Voltage: 5 V
- Viewing Angle: 30-100°
- Life Expectancy: 100,000 hours
- Panel Thickness: Max 7 mm
- Electrical Specs (Standard LED): Red 20 mA max, 2V-33V, Green 20 mA, Yellow 20 mA, Blue 20 mA, White 20 mA, Orange 20 mA
- Brightness: Super Bright and Hyper Bright options, with luminous intensities up to 110,000 mcd
- Terminal Options: Solder lug, fastons, pins, or wiring (200 mm length)
- Mounting: Recessed, flush, short or extended short body
- Certifications: UL, CSA (depending on model)
Buy the ACME Q8F5BYYHRG02E – Reliable LED Indicators for Industrial Applications
Order the Panel Mount LED Indicator online today and enjoy fast delivery, superior durability, and bright illumination suited for industrial control panels. These indicators feature IP67 sealing options, multiple mounting styles, and high luminous intensity, ensuring excellent visibility and long service life. Perfect for rugged environments, they are compatible with various terminal types including solder lug, fastons, pins, or wiring, making installation straightforward. Enhance your machinery’s control panel with reliable LED indicators for optimal performance and safety. Shop now!
Buy ACME Q8F5BYYHRG02E now and experience unmatched reliability and performance in rugged industrial environments.
Frequently Asked Questions
Where can I buy Apem Q8F5BYYHRG02E?
You can click on the BUY or RFQ button to purchase Q8F5BYYHRG02E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q8F5BYYHRG02E?
You can download the Q8F5BYYHRG02E datasheet or visit the Apem website for support.
Who is the manufacturer of Q8F5BYYHRG02E?
Apem
