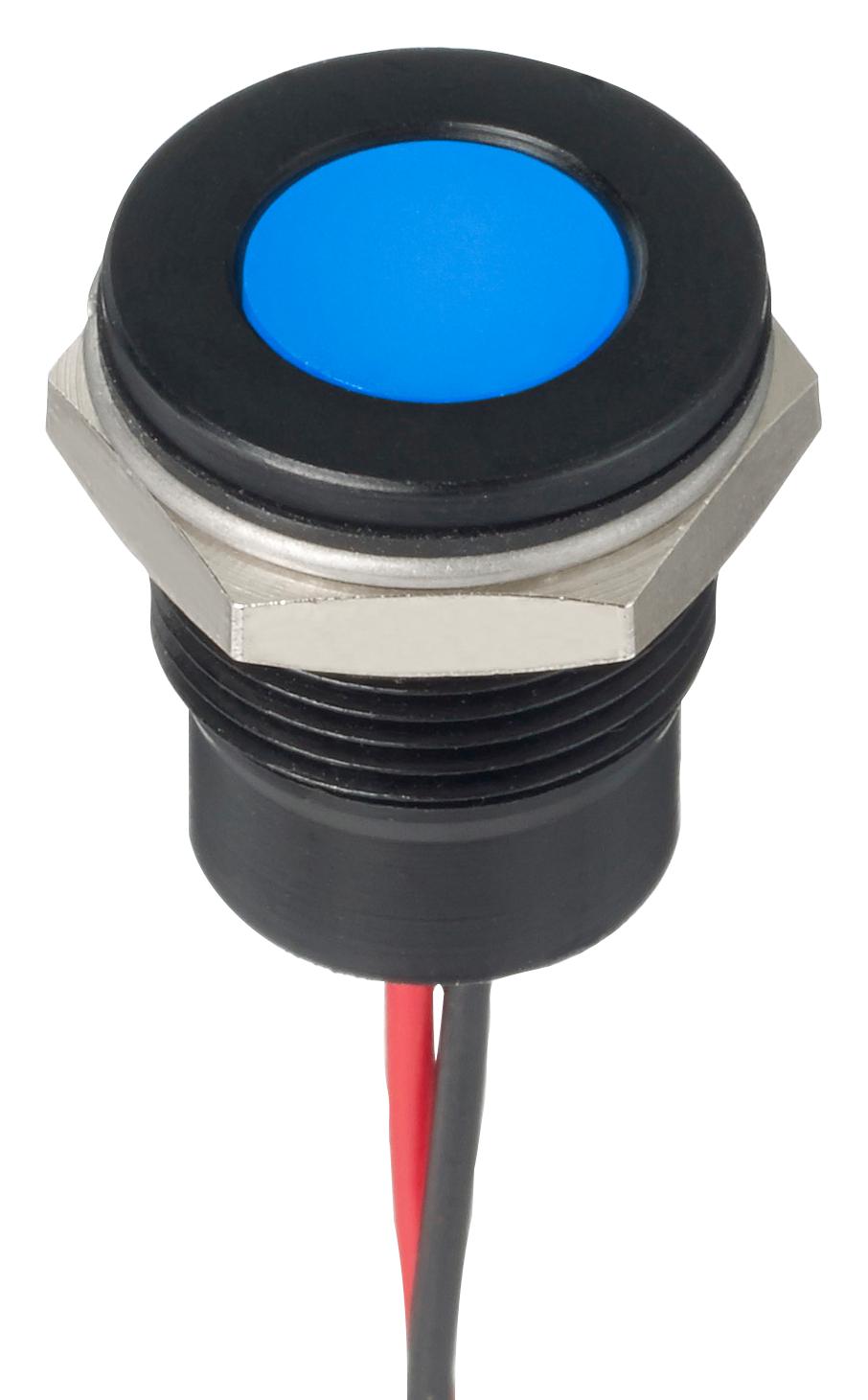

Apem Q127F5BXXB12E LED indicators
The Q12-7 series LED indicators are 12.7 mm (0.5 inch) panel mount devices designed for industrial signaling applications. Featuring water clear or diffused epoxy lenses and high-brightness LEDs, these indicators operate from 2VDC to 220VAC. They come with solder lug, faston terminals, pins, or long wire terminations. With an IP67 sealing option, they withstand harsh environments. Made with plated brass bezels finished in chrome, black, or satin grey, and molded polycarbonate bodies, they offer long-lasting illumination with a life expectancy of 100,000 hours and a maximum panel thickness of 7 mm.
Apem Q127F5BXXB12E LED indicators Specifications:
- Lens Diameter: 12.7 mm (0.5 inch)
- Operating Voltage: 2VDC to 220VAC
- LED Brightness: Super Bright and Hyper Bright options available
- Lens Type: Diffused epoxy or water clear
- Terminals: Solder lug, faston, pins, or long wire (200 mm)
- Mounting: Panel thickness max 7 mm
- Sealing: IP67 sealed option (EN60529)
- Material: Plated brass bezel (chrome, black, satin grey), molded polycarbonate body
- Operating Temperature Range: Rear plastic -30°C to +65°C, epoxy body -40°C to +85°C
- Life Expectancy: 100,000 hours
- Reverse Voltage: Max 5 V
- Viewing Angle: 30-100° (dependant on model)
- Torque: 4 cNm
- Max Reverse Voltage: 5 V
Buy the Brand PartNumber – Reliable LED Indicators for Industrial Applications
Purchase the Q12-7 series LED indicators online and ensure your industrial equipment performs reliably. These panel mount devices feature high-brightness LEDs and IP67 sealing for tough environments. Available with diffused or water clear lenses, they operate from 2VDC to 220VAC, offering versatile voltage options to suit your needs. Built with durable materials like plated brass and polycarbonate, they provide long-lasting illumination with a life expectancy of 100,000 hours. Easy to install with solder lug, faston, pins, or long wire terminations, they are ideal for various industrial signaling applications.
Order your Brand Series Q12-7 LED indicators today and enhance your industrial signaling systems with dependable, high-brightness LED solutions.
