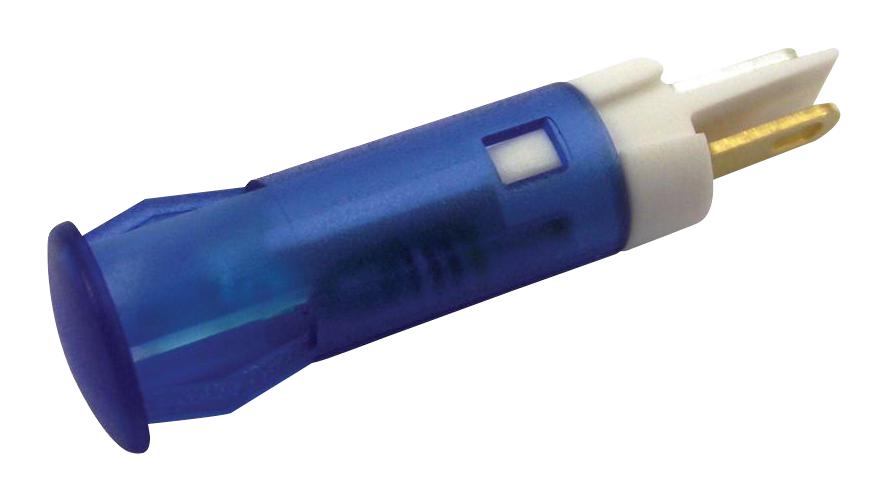

Apem QS101XXB12 Blue LED Indicator
The QS101XXB12 from APEM is a blue LED indicator featuring a polycarbonate (UL94V-0) lens and body for panel mounting. It has a diffused flat lens design suitable as a replacement for filament and neon indicators. The indicator operates within a voltage range of 10.8 to 13.2 VDC at 20mA. It mounts through a 10mm front panel hole with snap-in installation, requiring no additional hardware. The terminal type is solder lug or faston (2.8 x 0.8mm). The LED provides an fixed illumination with a standard intensity of 800mcd, viewing angle of 30 degrees, and a life expectancy of 100,000 hours. It can operate in temperatures from -30°C to +85°C, with a maximum reverse voltage of 5V and forward voltage of 3.3V. Recognized by UL496, this indicator is typically used in signage, control panels, power supplies, and appliances.
Apem QS101XXB12 Blue LED Indicator Specifications:
- Lens Material: Polycarbonate UL94V-0
- Operating Voltage Range: 10.8 to 13.2 VDC
- Operating Current: 20mA
- Luminous Intensity: 800mcd
- Viewing Angle: 30 degrees
- Life Expectancy: 100,000 hours
- Reverse Voltage: 5 V
- Forward Voltage: 3.3 V
- Operating Temperature Range: -30°C to +85°C
- Panel Mounting Hole Diameter: 10 mm
- Mounting: Snap-in front panel
- Terminal Types: Solder lug or faston (2.8 x 0.8mm)
- Compliance: UL recognized (UL496)
Buy the Buy APEM Blue LED Indicator Part Number QS101XXB12 Online
Order the APEM QS101XXB12 blue LED indicator online today for your signage, control panels, or power supply needs. Featuring a durable polycarbonate lens, snap-in mounting, standard intensity of 800mcd, and a lifespan of 100,000 hours, this indicator ensures bright and reliable operation. With an operating voltage of 10.8 to 13.2 VDC and a viewing angle of 30 degrees, it provides excellent visibility in various environments. Easy to install without additional hardware, it is UL recognized and ideal for a range of industrial and electronic applications.
Buy APEM QS101XXB12 now and experience reliable illumination for control panels and equipment.
Frequently Asked Questions
Where can I buy Apem QS101XXB12?
You can click on the BUY or RFQ button to purchase QS101XXB12 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part QS101XXB12?
You can download the QS101XXB12 datasheet or visit the Apem website for support.
Who is the manufacturer of QS101XXB12?
Apem
