Apem QS101XXO24 LED Indicator

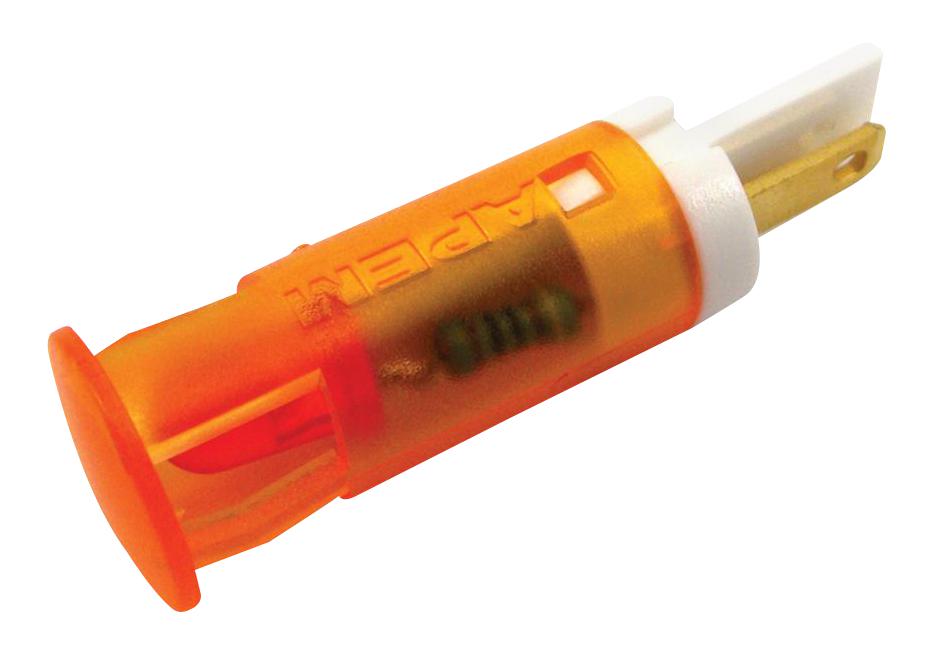

The QS101XXO24 is an orange LED indicator from the APEM QS series, designed for panel mounting with a snap-in fit. It features a polycarbonate (UL94V-0 rated) lens and body, offering a diffused flat lens for clear visibility. This LED is suitable for applications like fire alarm panels, power sockets, and domestic appliances. It operates at 21.6 to 26.4VDC with 20mA current, has a 30° viewing angle, and a lifespan of 100,000 hours. Recognized under UL496, it withstands temperatures from -30°C to +85°C with a max reverse voltage of 5V and forward voltage of 2V.
Apem QS101XXO24 LED Indicator Specifications:
- Lens Material: Polycarbonate UL94V-0
- Operating Voltage Range: 21.6 to 26.4 VDC
- Operating Current: 20 mA
- View Angle: 30°
- Life Expectancy: 100,000 hours
- Temperature Range: -30°C to +85°C
- Max Reverse Voltage: 5 V
- Forward Voltage: 2 V
- Mounting: Panel snap-in
- Terminals: Solder lug terminals 2.8 x 0.8 mm
- Recognition: UL496
Buy the APEM QS Series – Reliable Orange LED Indicator for Industrial Applications
Order the APEM QS series orange LED indicator today and enhance your control systems with a durable, high visibility signal light. With a polycarbonate lens, 21.6–26.4VDC operation, and a lifespan of 100,000 hours, this panel mount LED provides excellent visibility and reliability. Ideal for fire alarms, power sockets, and household appliances, it ensures robust performance in demanding environments. Easy snap-in mounting, UL recognition, and a temperature range of -30°C to +85°C make it a perfect choice for industrial and commercial applications.
Buy APEM QS series orange LED indicator now and experience high reliability and long-lasting performance in your control panels or alarms.
Frequently Asked Questions
Where can I buy Apem QS101XXO24?
You can click on the BUY or RFQ button to purchase QS101XXO24 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part QS101XXO24?
You can download the QS101XXO24 datasheet or visit the Apem website for support.
Who is the manufacturer of QS101XXO24?
Apem
