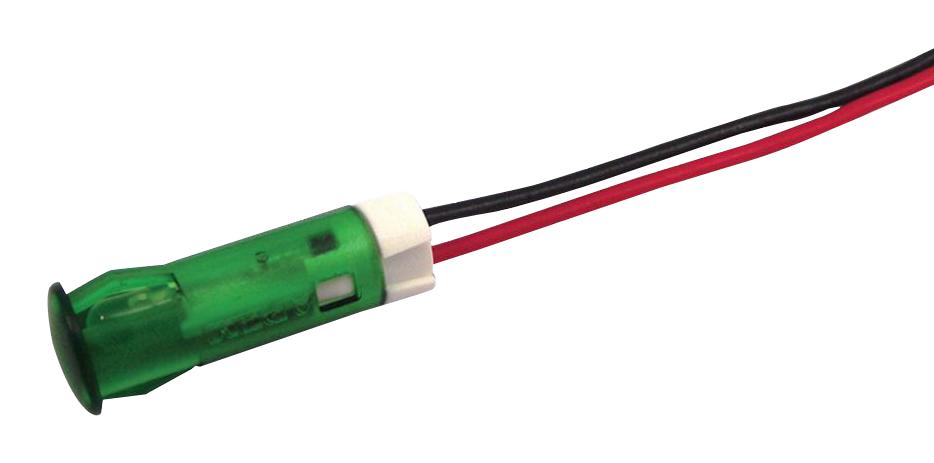

Apem QS123XXG24 LED Indicator
The QS123XXG24 green LED indicator from the QS series by APEM is designed for versatile panel mounting, featuring snap-in installation with polycarbonate construction that is UL94V-0 rated. It has a diffused flat lens for optimal visibility, operates at a voltage range of 21.6 to 26.4V DC at 20mA, and includes a 200mm PVC wire. With a 30° viewing angle, a life expectancy of 100,000 hours, and a maximum reverse voltage of 5V, it is ideal for signaling in various industrial, commercial, and domestic applications such as alert panels, power units, and control systems.
Apem QS123XXG24 LED Indicator Specifications:
- Operating Voltage: 21.6 to 26.4 V DC
- Operating Current: 20 mA
- Life Expectancy: 100,000 hours
- Maximum Reverse Voltage: 5 V
- Lens Material: Polycarbonate UL94V-0
- Lens Type: Diffused flat
- Viewing Angle: 30°
- Wire Length: 200 mm
- Connection: PVC wire
- Mounting: Snap-in panel mounting
- Maximum Panel Thickness: 0.8 to 1.6 mm
- Temperature Range: -30°C to +65°C
- Material: Moulded polycarbonate
- Dimensions: Suitable for 8 mm panel cut-out
- Certified: UL Listed
Buy the APEM QS123XXG24 – Reliable Green LED Indicator for Industrial Applications
Purchase the APEM QS123XXG24 green LED indicator online today and enhance your signaling systems with a durable, high-performance component. Featuring a diffused lens for clear visibility, operating at 21.6 to 26.4V DC, and with a lifespan of 100,000 hours, it ensures reliable operation in demanding environments. Its compact design allows easy snap-in mounting in panels up to 1.6 mm thick. Ideal for industrial control panels, alarm systems, and various equipment requiring visual status indication, this LED is a trusted choice for quality, safety, and efficiency.
Buy APEM QS123XXG24 now and experience unmatched reliability and performance with high brightness, long lifespan, and easy snap-in mounting.
