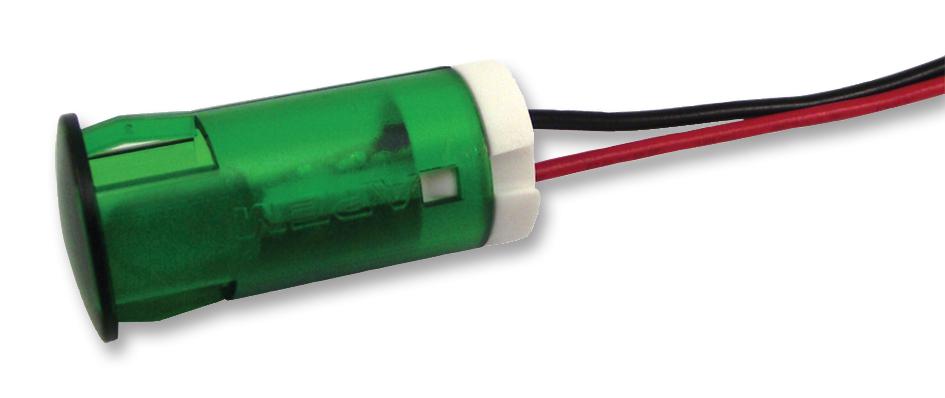

Apem QS123XXHG220 Panel Mount LED Indicator
The QS series snap-in panel mount LED indicators are available in various sizes including 6mm, 8mm, 10mm, and 12mm, featuring diffused flat lenses in multiple colors such as red, green, yellow, blue, orange, and white. They are UL recognized and support voltage ranges from 2VDC to 220VAC. These LEDs offer high brightness options, with life expectancy of 100,000 hours, and are suitable for panel thicknesses from 0.8mm to 1.6mm. Terminations include solder lug/faston or wires, making installation versatile and straightforward for industrial applications.
Apem QS123XXHG220 Panel Mount LED Indicator Specifications:
- Sizes: 6mm, 8mm, 10mm, 12mm
- Colors: Red, Green, Yellow, Blue, Orange, White
- Voltage Range: 2VDC - 220VAC
- LED Types: Standard and high brightness
- Termination Types: Solder lug/faston, wires (200mm standard)
- Lens Material: Polycarbonate (UL94V-0)
- Body Material: Polycarbonate (UL94V-0)
- Wire Gauge: 6mm & 8mm = 24AWG, 10mm & 12mm = 22AWG
- Max Reverse Voltage: 5V
- Viewing Angles: 30° (standard), 45° (high brightness)
- Life Expectancy: 100,000 hours
- Operating Temperature: -30°C to +85°C
- Storage Temperature: -40°C to +100°C
- Panel Thickness: 0.8mm to 1.6mm
Buy the APEM Series QS LED Indicator: QS123XXHG220
Enhance your control panels with our high-quality, versatile panel mount LED indicators. Available in multiple sizes, colors, and brightness levels, these UL-recognized LEDs are easy to install with snap-in mounting and come with solder lug or wire terminations. Suitable for voltages from 2VDC to 220VAC, they deliver reliable performance with a life expectancy of 100,000 hours. Ideal for industrial automation, machinery, and control systems, purchase now online to ensure quality, durability, and easy integration into your equipment.
Buy APEM QS series LED indicators now and enjoy dependable illumination with versatile mounting and bright, long-lasting LEDs suitable for any industrial environment.
Frequently Asked Questions
Where can I buy Apem QS123XXHG220?
You can click on the BUY or RFQ button to purchase QS123XXHG220 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part QS123XXHG220?
You can download the QS123XXHG220 datasheet or visit the Apem website for support.
Who is the manufacturer of QS123XXHG220?
Apem
