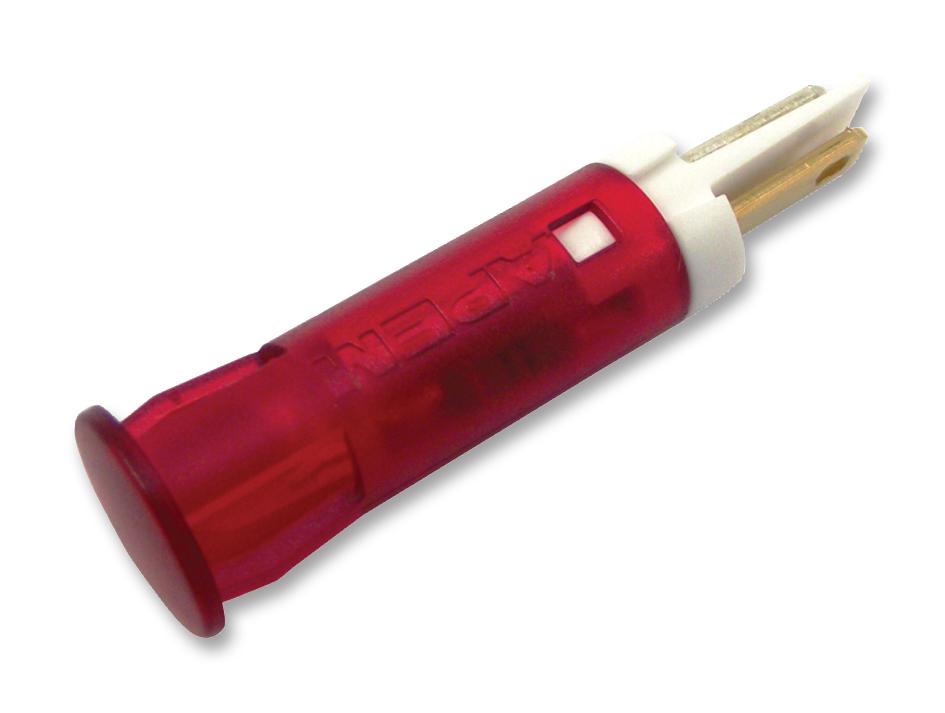

Apem QS81XXR12 LED Indicator
The QS Series snap-in panel mount LED indicators feature 6mm, 8mm, 10mm, and 12mm cut-out sizes with front snap-in mounting, requiring no additional hardware. They come with colored diffused flat lenses available in red, green, yellow, blue, orange, and white, suitable for various voltage ranges from 2VDC to 220VAC. These LEDs offer high brightness and long life expectancy of 100,000 hours, with options for bi-color, flashing, and different terminal connections. Rated for operating temperatures between -30°C to +85°C, they are ideal for industrial and equipment indication applications.
Apem QS81XXR12 LED Indicator Specifications:
- Lens material: Polycarbonate (UL94V-0)
- Cut-out sizes: 6mm, 8mm, 10mm, 12mm
- Voltage range: 2VDC - 220VAC
- Operating temperature: -30°C to +85°C
- Life expectancy: 100,000 hours
- Body material: Polycarbonate (UL94V-0)
- Terminals: Solder lug/faston (gold/silver/brass)
- Wire gauge: 6mm, 8mm = 24AWG; 10mm, 12mm = 22AWG
- Viewing angle: 30° standard, 45° high brightness
- Reverse voltage: Max 5V
- Storage temperature: -40°C to +100°C
- Panel thickness: 0.8mm to 1.6mm
- Color options: Red, Green, Yellow, Blue, Orange, White
- High brightness versions available
- Bi-color versions operational up to 28VDC
- Flashing LED option available
Buy the APEM QS Series Snap-in LED Indicators – Reliable Panel Mount LEDs for Industrial Applications
Order the APEM QS Series LED indicator online today to enhance your industrial control panels. These durable, high-brightness LEDs with various sizes and color options ensure excellent visibility and long service life. Easy snap-in mounting simplifies installation, and with voltage ranges from 2VDC to 220VAC, they suit diverse industrial needs. Whether you need standard, bi-color, or flashing options, purchasing online guarantees rapid delivery and competitive pricing. Upgrade your equipment with these reliable indicators and ensure optimal operation and safety in your industrial environment.
Buy APEM QS81XXR12 now and experience unmatched reliability and performance in panel indication with high brightness LED options.
Frequently Asked Questions
Where can I buy Apem QS81XXR12?
You can click on the BUY or RFQ button to purchase QS81XXR12 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part QS81XXR12?
You can download the QS81XXR12 datasheet or visit the Apem website for support.
Who is the manufacturer of QS81XXR12?
Apem
